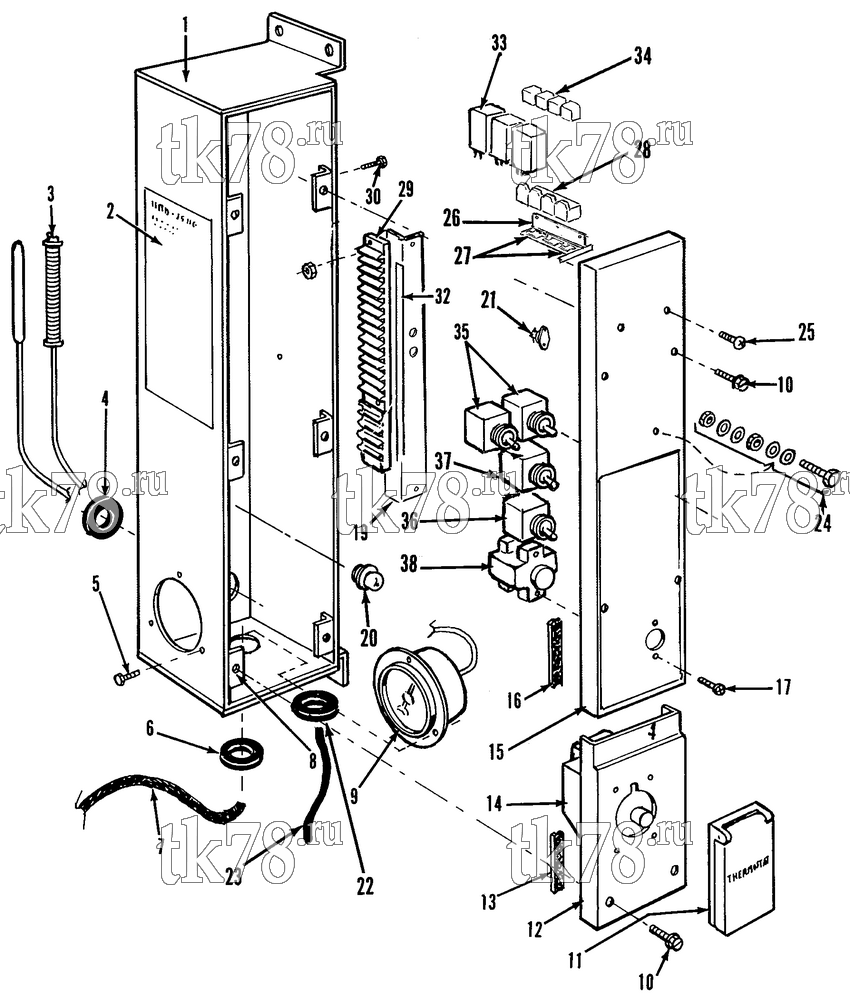

Установкa Thermo King URD 25DG схема REMOTE CONTROL BOX (w/ CYCLE SENTRY) – 74A9
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-9147 | BOX - only | 1 | |
| 2 | 99-9191 | NAMEPLATE - Operating Instructions | 1 | |
| 3 | 99-7473 | PLUG - wood | 1 | |
| 4 | 33-432 | GROMMET | 1 | |
| 5 | 55-3513 | SCREW - thermometer | 3 | |
| 55-3013 | FLATWASHER | 3 | ||
| 55-3014 | LOCKWASHER | 3 | ||
| 55-2999 | NUT | 1 | ||
| 6 | 33-629 | GROMMET | 1 | |
| 7 | 44-6995 | HARNESS - remote box | 1 | |
| 8 | 99-6652 | TAB - cover | 6 | |
| 55-2988 | RIVET - tab | 12 | ||
| 9 | 61-3467 | THERMOMETER | 1 | |
|
10-61-3467 | Термометр | 15 250 ₽ |
|
| 66-1153 | LENS | 1 | ||
| 33-2430 | GASKET - lens (use on plastic body thermometer) | 1 | ||
| 33-666 | GASKET - lens (use on metal body thermometer) | 1 | ||
| 41-2590 | THERMOMETER - digital LED (F) | 1 | ||
| 44-5234 | SENSOR (10 ft) | 1 | ||
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 10 | 55-3843 | SCREW - cover | 6 | |
| 55-2964 | LOCKWASHER | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 11 | 99-5635 | COVER - thermostat | 1 | |
| 33-1368 | GASKET - cover | 1 | ||
| 33-1373 | GASKET - thermostat cover to control box | 1 | ||
| 12 | 99-7422 | COVER - remote box | 1 | |
| 13 | 33-1560 | GASKET - cover | 1 | |
| 14 | 44-6220 | THERMOSTAT - 2 switch | 1 | |
| 44-6219 | HARNESS - thermostat | 1 | ||
| 99-6653 | PLATE - thermostat | 1 | ||
| 55-3683 | SCREW - thermostat | 1 | ||
| 15 | 99-9148 | COVER - control box | 1 | |
| 16 | 33-1701 | GASKET - cover | 1 | |
| 17 | 55-3511 | SCREW - switch | 2 | |
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 18 | 99-9152 | NAMEPLATE - switch | 1 | |
| 19 | 99-9149 | BRACKET - board | 1 | |
| 20 | 44-6162 | LENS - alarm light (red) | 1 | |
| 44-3035 | BULB | 1 | ||
| 44-5788 | SOCKET | 1 | ||
| 44-5790 | INSULATOR | 1 | ||
| 44-5789 | SPRING | 1 | ||
| 21 | 44-4035 | RECTIFIER | 1 | |
| 55-3256 | SCREW - rectifier | 2 | ||
| 55-3013 | FLATWASHER | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-2999 | NUT | 2 | ||
| 22 | 33-740 | GROMMET | 1 | |
| 23 | 44-6996 | HARNESS - remote cab box | 1 | |
| 24 | 55-3000 | SCREW - ground | 1 | |
| 55-2996 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-2965 | NUT | 2 | ||
| 25 | 55-3025 | SCREW - relay bracket | 2 | |
| 55-2964 | LOCKWASHER | 2 | ||
| 26 | 99-9150 | BRACKET - socket | 1 | |
| 27 | 44-3184 | SOCKET - relay | 3 | |
| 44-3515 | RESISTOR (47 ohm) | 1 | ||
| 99-2027 | SPRING - holddown (relay) | 3 | ||
| 55-2771 | CLAMP - relay | 3 | ||
| 55-3010 | RIVET - blind | 6 | ||
| 28 | 44-5537 | SOCKET - relay | 4 | |
| 55-3015 | SCREW - socket | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 29 | 44-5980 | BOARD - terminal | 2 | |
| 44-6895 | DIODE - assembly | 2 | ||
| 30 | 55-4487 | SCREW - board | 4 | |
| 31 | 55-1516 | NUT | 4 | |
| 32 | 99-9151 | MARKSTRIP | 1 | |
| 33 | 44-3186 | RELAY | 2 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 34 | 44-9111 | RELAY - mini | 4 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 35 | 44-709 | SWITCH - diesel/electric & heat/cool | 2 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 44-739 | BOOT - switch | 2 | ||
| 36 | 44-490 | SWITCH - Cycle Sentry | 1 | |
|
10-44-490 | Выключатель | 2 590 ₽ |
|
| 44-4875 | JUMPER - on/off to cutout switch | 1 | ||
| 37 | 44-1164 | SWITCH - defrost | 1 | |
|
10-44-1164 | Выключатель размораживания, JD/KD/MD/RD/TD-I/II / SB-I/II/III | 2 890 ₽ |
|
|
P-10-01129-01 | Выключатель разморозки, Genesis/Thunderbird | 2 890 ₽ |
|
| 38 | 40-1082 | SWITCH - reset | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-1556 | RESISTOR | 1 | ||
|
10-44-1556 | Резистор теплового реле, 12V 5Ω | 1 230 ₽ |
|
| 44-2119 | SEAL - pushbutton | 1 |
