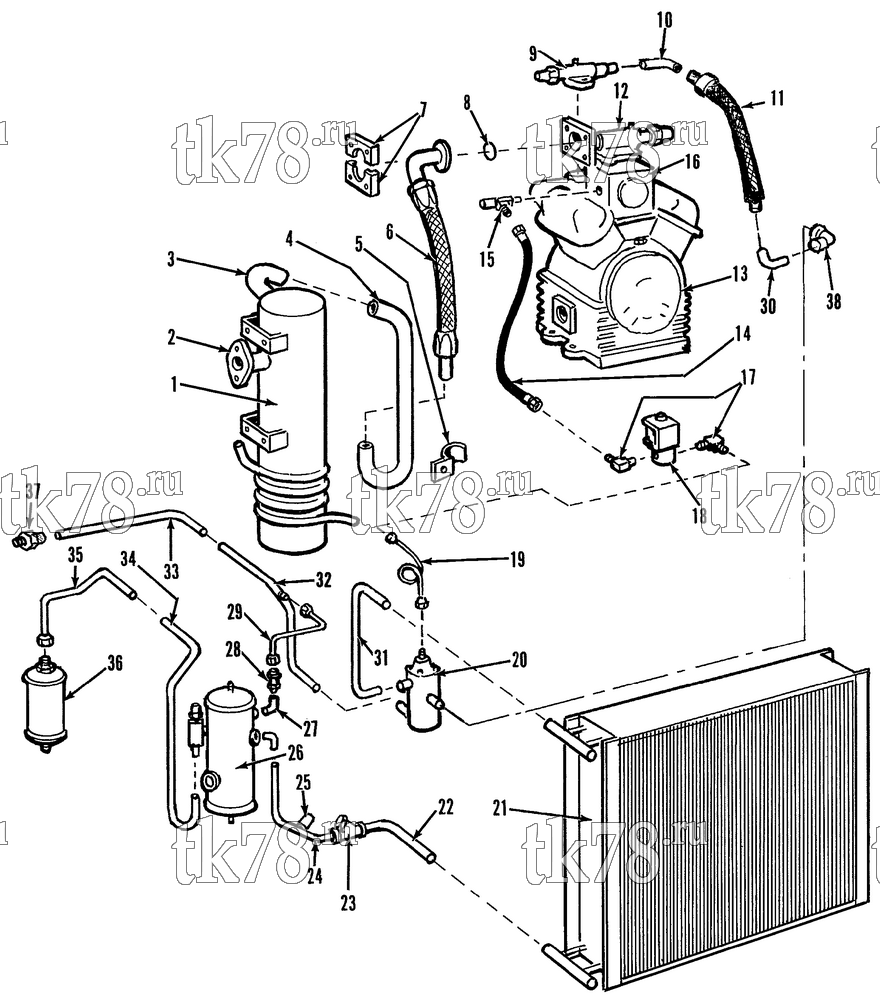

Установкa Thermo King URD 25DG схема REFRIGERATION COMPONENTS – 60G3
Обновление от: 1/30/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-694 | TANK - accumulator | 1 | |
| 55-2187 | ELBOW - water connection | 1 | ||
| 66-3910 | TUBE - water hose connection | 1 | ||
| 2 | 66-2171 | FLANGE | 1 | |
| 66-3909 | TUBE - flange to accumulator tank | 1 | ||
| 3 | 55-3310 | ELBOW | 1 | |
| 55-3309 | BUSHING - elbow | 1 | ||
| 4 | 66-3914 | TUBE - suction | 1 | |
| 5 | 55-1241 | CLAMP - tube | 1 | |
| 6 | 66-4942 | HOSE - suction vibrasorber | 1 | |
| 7 | 22-607 | FLANGE - suction vibrasorber | 2 | |
| 55-1670 | SCREW - flange | 4 | ||
| 55-365 | LOCKWASHER | 1 | ||
| 8 | 33-230 | O-RING (1.875 id) | 1 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 9 | 66-129 | VALVE - service (discharge, see 27C10) | 1 | |
|
10-66-129 | Сервисный вентиль, X426/430 | 22 340 ₽ |
|
| 10 | 66-5462 | ELBOW | 1 | |
| 11 | 66-1224 | VIBRASORBER - discharge | 1 | |
|
10-66-1224 | Вибросорбер нагнетания, SB-I/II | 11 620 ₽ |
|
| 12 | 66-5454 | VALVE - service (suction, see 60G2) | 1 | |
| 11-2886 | VALVE (Schrader) | 1 | ||
| 11-7777 | CORE | 1 | ||
| 55-5672 | CAP | 1 | ||
| 13 | 102-666 | COMPRESSOR - X426 (see 50A3) | 1 | |
| 14 | 11-4516 | HOSE - solenoid to throttling valve | 1 | |
| 15 | 66-5859 | VALVE (Schrader) | 1 | |
| 16 | 66-5931 | VALVE - throttling (see 9E11) | 1 | |
| 17 | 55-3358 | ELBOW | 2 | |
| 18 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL - valve (3/8 bore) | 1 | ||
| 41-1525 | COIL - valve (7/16 bore) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-3029 | SCREW - valve | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-8786 | NUT - valve | 1 | ||
| 19 | 66-3912 | TUBE - solenoid to 3-way | 1 | |
| 20 | 66-3911 | VALVE - 3-way (see 60A12) | 1 | |
| 55-214 | SCREW - 3-way valve | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 21 | 67-693 | COIL - condenser/radiator (see 60F9) | 1 | |
| 22 | 66-3918 | TUBE - check valve to coil | 1 | |
| 23 | 66-3655 | VALVE - check (see 9G12) | 1 | |
| 24 | 66-3919 | TUBE - valve to receiver | 1 | |
| 25 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 55-3295 | FITTING - saddle (valve) | 1 | ||
| 33-1015 | O-RING - relief valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 26 | 67-1189 | TANK - receiver | 1 | |
|
10-67-1189 | Бак фреона, KD/MD/RD/TD/URD | 16 670 ₽ |
|
| 66-8339 | INDICATOR - liquid | 1 | ||
| 66-8561 | BALL | 1 | ||
| 33-1222 | O-RING | 1 | ||
| 55-5078 | NUT - receiver | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 27 | 55-5422 | ELBOW | 1 | |
| 28 | 66-5501 | VALVE - check | 1 | |
| 29 | 66-3922 | TUBE - receiver to tube | 1 | |
| 30 | 66-3917 | TUBE - 3-way inlet | 1 | |
| 31 | 66-3925 | TUBE - coil to 3-way | 1 | |
| 32 | 66-3915 | TUBE - hot gas | 1 | |
| 66-874 | FITTING | 1 | ||
| 33 | 66-3916 | TUBE - hot gas (bulkhead) | 1 | |
| 34 | 66-3923 | TUBE - receiver to dehydrator | 1 | |
| 35 | 66-5464 | TUBE - receiver to dehydrator | 1 | |
| 36 | 66-4900 | DEHYDRATOR | 1 | |
|
10-66-4900 | Дегидратор, SB-II/III | 3 610 ₽ |
|
| 37 | 55-1610 | ADAPTER | 1 | |
| 33-1213 | GROMMET (1/2 id) | 1 | ||
| 55-402 | FLATWASHER | 2 | ||
| 38 | 55-2244 | ELBOW | 1 | |
| 39 | 55-4489 | ELBOW | 1 | |
| 40 | 55-3094 | ELBOW - installation | 1 | |
| 55-728 | O-RING | 2 | ||
| 55-1670 | SCREW - flange | 4 | ||
| 55-2038 | FLATWASHER | 6 | ||
| 55-365 | LOCKWASHER | 4 | ||
| 55-3686 | LOCKNUT | 2 | ||
| 41 | 55-2183 | ELBOW | 1 |
