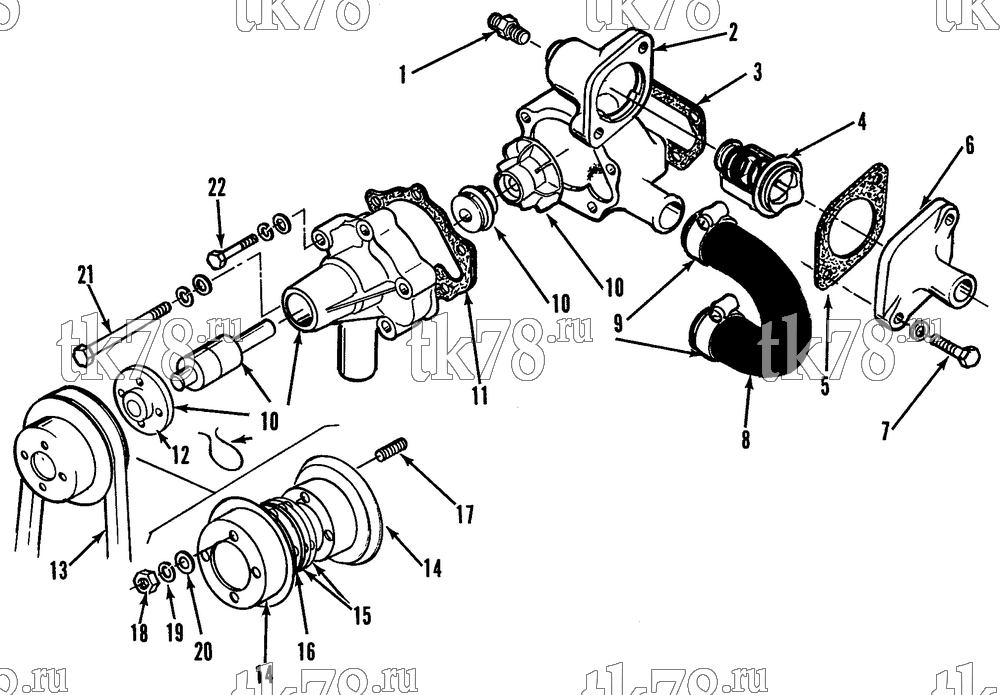

Установкa Thermo King URD 25DG схема WATER PUMP ASSEMBLY – 60E8
Обновление от: 8/14/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-5253 | NIPPLE | 1 | |
| 2 | 11-5598 | HOUSING - pump/thermostat | 1 | |
| 3 | 33-4335 | GASKET - housing | 1 | |
| 4 | 11-6982 | THERMOSTAT | 1 | |
| 5 | 33-1520 | GASKET - thermostat | 1 | |
|
10-33-1520 | Прокладка термостата, Yanmar 235 / 353 / 388 / 395 | 510 ₽ |
|
| 6 | 11-5600 | COVER - thermostat | 1 | |
| 7 | 55-4611 | SCREW - housing (28 mm) | 2 | |
| 55-411 | FLATWASHER | 2 | ||
| 8 | 11-5046 | HOSE - bypass | 1 | |
| 9 | 55-3402 | CLAMP | 2 | |
| 10 | 13-508 | PUMP - water (incl 11 & 12) | 1 | |
|
10-13-508 | Водяной насос, Yanmar 235 / 353, KD/MD/RD/TD-I / URD | 14 920 ₽ |
|
|
PP-13-508 | Водяной насос, Yanmar 235 / 353, KD/MD/RD/TD-I / URD | 7 560 ₽ |
|
| 813-508 | KIT - water pump repair (reman) | 1 | ||
| 11 | 33-1527 | GASKET - pump | 1 | |
| 12 | 77-1434 | FLANGE - pump | 1 | |
| 13 | 78-513 | BELT - water pump | 1 | |
| 14 | 77-1426 | PULLEY (adjustable) | 1 | |
|
10-77-1426 | Шкив водяной помпы, Yanmar 374 / 388 / 395 / 482 / 486, SL/SLe | 6 670 ₽ |
|
| 15 | 77-1427 | SHIM (1 mm) | A/R | |
| 77-2752 | SHIM (0.5 mm) | A/R | ||
| 16 | 77-1428 | SPACER - pulley belt groove | 1 | |
| 17 | 55-5138 | STUD - pulley | 4 | |
| 18 | 55-4750 | NUT | 4 | |
| 19 | 55-4608 | LOCKWASHER | 4 | |
| 20 | 55-4607 | FLATWASHER | 4 | |
| 77-1436 | PULLEY - crankshaft | 1 | ||
| 21 | 55-4646 | SCREW - water pump (85 mm) | 3 | |
| 22 | 55-4655 | SCREW - water pump (35 mm) | 1 | |
| 30-175 | GASKET SET - engine overhaul | 1 | ||
|
10-30-175 | Набор прокладок двигателя (вкл. маслосъемные колпачки), Isuzu C-201 | 18 100 ₽ |
|
