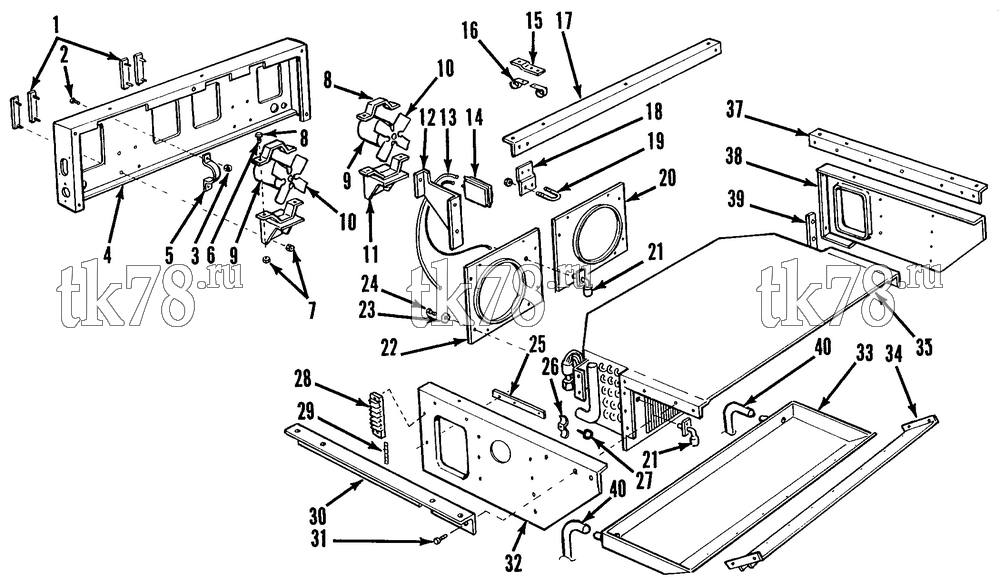

Установкa Thermo King URD 25DG схема STRUCTURAL & ELECTRICAL - EVAPORATOR – 60E11
Обновление от: 10/31/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 99-7433 | BOLTSTRIP - motor bracket | 4 | |
| 55-3257 | RIVET - strip | 4 | ||
| 2 | 55-101 | SCREW - exchanger | 4 | |
| 3 | 55-4974 | NUT - captive | 4 | |
| 4 | 98-2564 | BULKHEAD - evaporator | 1 | |
| 5 | 99-7428 | CLAMP - exchanger | 2 | |
| 6 | 55-2979 | SCREW - motor | 4 | |
| 7 | 55-4118 | LOCKNUT | 8 | |
| 8 | 99-7431 | BRACKET - motor | 2 | |
| 9 | 44-6130 | MOTOR - evaporator fan (12V) | 2 | |
| 44-7052 | BRUSH | 2 | ||
| 77-1673 | BEARING | 2 | ||
| 10 | 78-573 | FAN - evaporator motor | 2 | |
| 11 | 99-9134 | MOUNT - fan motor | 2 | |
| 12 | 99-7424 | CHANNEL - coil support | 1 | |
| 13 | 99-1142 | HOSE - air switch (clear) | 1 | |
| 99-1143 | HOSE - air switch (black) | 1 | ||
| 14 | 44-3475 | SWITCH - pressure differential | 1 | |
| 15 | 99-7429 | BRACKET - tube support | 2 | |
| 16 | 55-548 | CLAMP (0.437 dia) | 2 | |
| 55-570 | CLAMP (0.625 dia) | 1 | ||
| 17 | 99-7425 | ANGLE - evaporator | 1 | |
| 18 | 99-5999 | BRACKET - expansion valve | 1 | |
| 19 | 99-661 | U-BOLT | 1 | |
| 20 | 98-2146 | ORIFICE - evaporator (right) | 1 | |
| 21 | 99-1725 | PROBE - air switch | 2 | |
| 22 | 98-2145 | ORIFICE - evaporator (left) | 1 | |
| 23 | 55-405 | WASHER - dome (orifice) | 18 | |
| 24 | 55-145 | SCREW - orifice | 18 | |
| 25 | 99-6036 | BRACKET - sensor | 1 | |
| 55-2991 | SCREW - sensor | 3 | ||
| 55-4560 | NUT (stop) | 3 | ||
| 26 | 99-5992 | BRACKET - tube | 3 | |
| 27 | 44-3155 | SWITCH - defrost termination | 1 | |
|
10-44-3155 | Выключатель оттайки, KD/MD/RD-I / SB-I/II | 4 780 ₽ |
|
| 55-5879 | SCREW - defrost switch | 2 | ||
| 55-414 | LOCKWASHER | 2 | ||
| 28 | 44-4449 | BOARD - terminal | 1 | |
| 29 | 99-7432 | MARKSTRIP | 1 | |
| 30 | 99-7426 | ANGLE - evaporator support (left) | 1 | |
| 31 | 55-141 | SCREW - angle | 2 | |
| 55-4967 | LOCKNUT | 2 | ||
| 32 | 98-3027 | PANEL - evaporator (left) | 1 | |
| 33 | 98-2141 | PAN - drain | 1 | |
| 99-3064 | NAMEPLATE - Caution, Fan | 1 | ||
| 99-5966 | STRIP (neoprene) | A/R | ||
| 34 | 98-2563 | PANEL | 1 | |
| 35 | 67-1033 | COIL - evaporator | 1 | |
| 55-4974 | NUT - captive | 22 | ||
| 36 | 98-3028 | PANEL - evaporator (right) | 1 | |
| 37 | 99-7427 | ANGLE - panel | 1 | |
| 38 | 99-6403 | NUTSTRIP - coil | 1 | |
| 55-1714 | RIVET - nutstrip | 1 | ||
| 99-5993 | BRACKET - plate | 1 | ||
| 39 | 99-6404 | NUTSTRIP | 1 | |
| 55-1714 | RIVET - nutstrip | 1 | ||
| 99-5994 | BRACKET - plate | 1 | ||
| 40 | 99-8310 | HOSE - drain | 2 |
