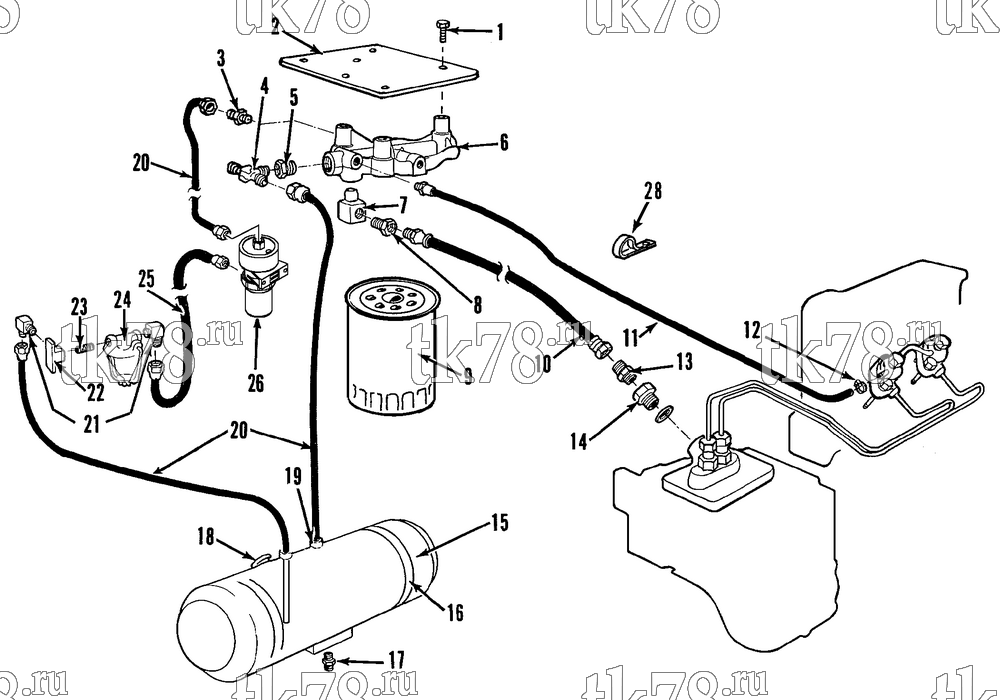

Установкa Thermo King UMD, UMD-II, SUMD-II, UMD-II MAX, SUMD-II MAX схема FUEL FILTER & HOSES – 113G4
Обновление от: 3/27/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-2962 | SCREW - filter bracket (1-3/4 lg) | 2 | |
| 55-3565 | SCREW - filter bracket (2 lg) | 1 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-4954 | NUT | 3 | ||
| 2 | 99-6637 | BRACKET - filter | 1 | |
| 55-1587 | SCREW - bracket | 3 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | NUT | 3 | ||
| 3 | 55-459 | COUPLING | 1 | |
| 4 | 55-308 | ELBOW | 1 | |
| 5 | 55-4799 | BUSHING - restricted fitting | 1 | |
| 6 | 11-6529 | BRACKET - filter | 1 | |
| 55-3168 | ADAPTER - fuel pickup | 1 | ||
| 55-433 | PLUG - pipe | 1 | ||
| 7 | 55-4244 | ELBOW | 1 | |
| 8 | 55-408 | COUPLING | 1 | |
| 9 | 11-9098 | FILTER - fuel | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 10 | 11-7195 | HOSE - fuel inlet | 1 | |
| 11 | 11-7194 | HOSE - fuel return | 1 | |
| 12 | 55-2796 | CLAMP | 1 | |
| 13 | 11-5390 | JOINT - fuel | 1 | |
| 14 | 33-1531 | GASKET | 1 | |
| 15 | 12-461 | TANK - fuel (incl 17, 18, optional) | 1 | |
| 11-2593 | GAUGE - fuel | 1 | ||
| 11-5331 | TUBE - fuel pickup | 2 | ||
| 16 | 12-355 | CLAMP - tank | 1 | |
| 55-451 | LOCKWASHER | 2 | ||
| 55-1177 | NUT - clamp | 1 | ||
| 17 | 55-2313 | CHECK - ball | 1 | |
| 18 | 11-5946 | CAP - fuel tank (non-vented) | 1 | |
|
10-11-5946 | Пробка бензобака, Non Vented - Brass | 5 120 ₽ |
|
| 33-381 | GASKET - cap | 1 | ||
| 19 | 55-2564 | FITTING - swivel | 2 | |
| 20 | 11-4781 | HOSE - fuel (before 3/93) | 2 | |
| 11-7916 | HOSE - fuel (38 in, after 2/93) | 1 | ||
| 11-7917 | HOSE - fuel (180 in, after 2/93) | 1 | ||
| 21 | 55-308 | ELBOW | 2 | |
| 11-6180 | PREFILTER - fuel (before 1/92) | 1 | ||
| 22 | 55-4496 | ELBOW - flange | 1 | |
| 23 | 55-4512 | NIPPLE | 1 | |
| 24 | 11-4956 | HEAD - filter | 1 | |
| 10-299 | KIT - bowl & filter (before 1/92) | 1 | ||
| 11-7915 | BOWL (after 1/92) | 1 | ||
| 11-4880 | ELEMENT - filter | 1 | ||
| 33-2464 | GASKET (before 1/92) | 1 | ||
| 33-2464 | GASKET (after 1/92) | 1 | ||
| 11-4957 | BAIL - filter | 1 | ||
| 11-4958 | NUT - bail | 1 | ||
| 25 | 11-4780 | HOSE | 1 | |
| 26 | 41-7059 | PUMP - fuel (12V) | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 850 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 9 870 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 9 460 ₽ |
|
| 10-376 | KIT - filter (diesel) | 1 | ||
| 10-378 | KIT - bowl & gasket | 1 | ||
| 33-4256 | GASKET - bowl to body | 1 | ||
| 10-273 | KIT - filter (for 41-2640 fuel pump) | 1 | ||
| 33-1676 | GASKET - fuel pump (for 41-2638 fuel pump) | 1 | ||
| 27 | 11-6110 | BOLT - air bleed | 1 | |
| 28 | 55-570 | CLAMP - hose | 2 | |
| 55-2991 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT (hexstop) | 1 |
