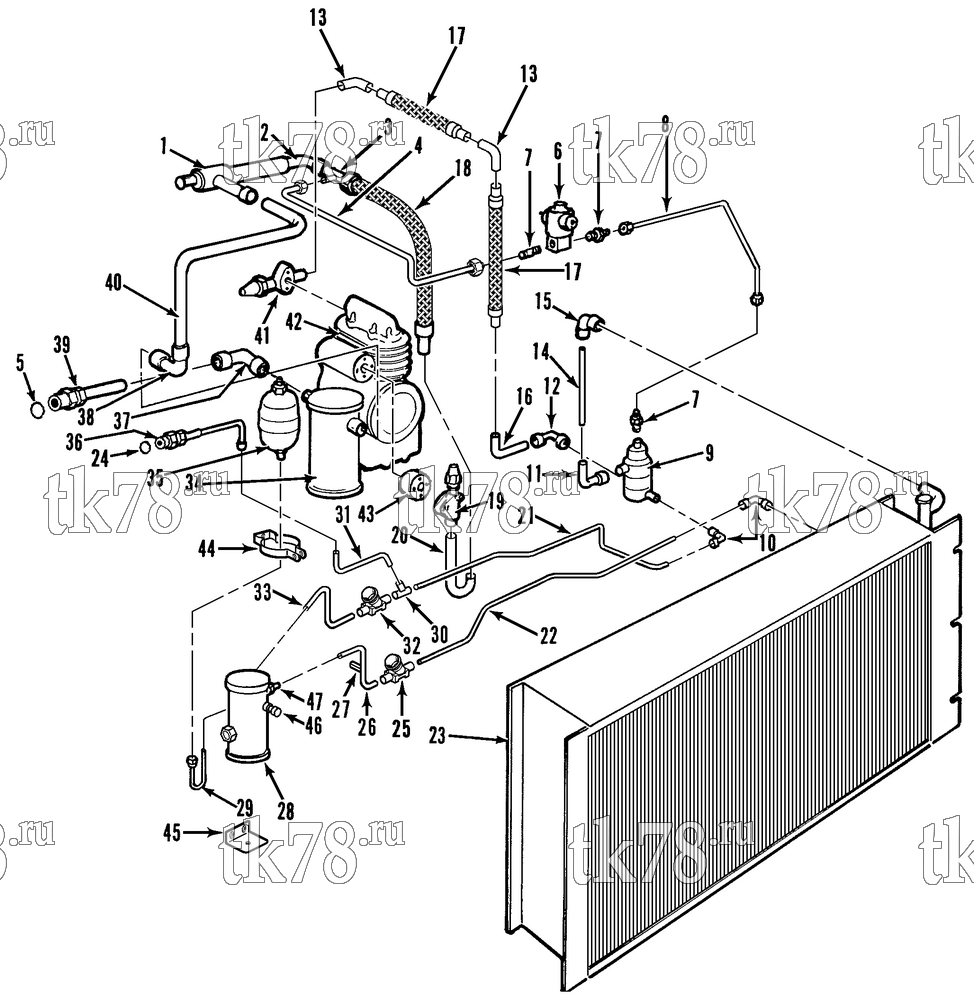

Установкa Thermo King UMD, UMD-II, SUMD-II, UMD-II MAX, SUMD-II MAX схема REFRIGERATION COMPONENTS (MAX UNITS) – 113D14
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-1180 | VALVE - pressure regulator | 1 | |
| 99-6648 | BRACKET - valve | 1 | ||
| 55-1587 | SCREW - bracket | 3 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-4953 | NUT | 3 | ||
| 55-3547 | U-BOLT - valve | 3 | ||
| 55-4560 | NUT - u-bolt | 6 | ||
| 55-2201 | FLATWASHER | 6 | ||
| 2 | 55-1122 | ELBOW | 1 | |
| 3 | 66-3669 | TUBE - elbow to vibrasorber | 1 | |
| 66-874 | FITTING - flare | 1 | ||
| 4 | 66-6925 | TUBE - pilot solenoid | 1 | |
| 5 | 33-1222 | O-RING - suction | 1 | |
| 55-6812 | NUT - bulkhead | 1 | ||
| 6 | 66-7635 | VALVE - pilot solenoid | 1 | |
| 41-1521 | COIL | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5839 | TERMINAL - female (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 55-4523 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 91-3020 | BRACKET - valve | 1 | ||
| 99-930 | BOLTSTRIP - bracket | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 7 | 55-459 | COUPLING | 3 | |
| 8 | 66-6926 | TUBE - 3-way to solenoid (4/6/93 & after) | 1 | |
| 55-6544 | CLAMP - tube | 1 | ||
| 55-5641 | SCREW - clamp | 1 | ||
| 9 | 66-3983 | VALVE - 3-way (see 61A11) | 1 | |
| 99-6650 | BRACKET - valve | 1 | ||
| 55-2977 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 55-2115 | SCREW - valve | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 10 | 55-1483 | ELBOW | 2 | |
| 11 | 55-2187 | ELBOW | 1 | |
| 12 | 55-1541 | ELBOW | 1 | |
| 13 | 66-1807 | ELBOW (4/6/93 & after) | 2 | |
| 14 | 66-3673 | TUBE - 3-way to coil | 1 | |
| 15 | 55-2187 | ELBOW | 1 | |
| 16 | 66-3674 | TUBE - vibrasorber to 3-way | 1 | |
| 17 | 66-6927 | VIBRASORBER - discharge | 2 | |
| 99-6651 | BRACKET - vibrasorber | 1 | ||
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4593 | NUT | 2 | ||
| 99-1853 | U-BOLT | 1 | ||
| 55-4560 | NUT - u-bolt | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 18 | 66-1784 | VIBRASORBER - suction | 1 | |
| 19 | 66-8186 | VALVE - suction (see 49F2) | 1 | |
| 20 | 66-3675 | TUBE - suction | 1 | |
| 21 | 66-6784 | TUBE - defrost (after 2/92) | 1 | |
| 22 | 66-6782 | TUBE - liquid (after 1/92) | 1 | |
| 23 | 67-1155 | COIL - condenser/radiator (see 113G6) | 1 | |
| 24 | 33-1015 | O-RING - discharge | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 25 | 66-3655 | VALVE - check (see 9G12) | 1 | |
| 26 | 66-6783 | TUBE - valve to receiver | 1 | |
| 55-3295 | FITTING - saddle | 1 | ||
| 27 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 28 | 67-1188 | TANK - receiver | 1 | |
| 29 | 66-5986 | TUBE - receiver to dehydrator | 1 | |
| 66-7048 | TUBE - receiver to dehydrator (o-ring seal) | 1 | ||
| 55-8268 | SHOULDER (o-ring seal) | 1 | ||
| 55-8267 | NUT - shoulder | 1 | ||
| 30 | 55-2296 | TEE | 1 | |
| 31 | 66-6781 | TUBE (after 1/92) | 1 | |
| 32 | 66-3654 | VALVE - check (see 9G12) | 1 | |
| 33 | 66-6785 | TUBE - valve to receiver (after 1/92) | 1 | |
| 34 | 67-1157 | TANK - accumulator | 1 | |
| 55-3048 | SCREW - accumulator | 2 | ||
| 55-2363 | LOCKWASHER | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 35 | 61-800 | DEHYDRATOR (o-ring seal) | 1 | |
|
10-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 4 650 ₽ |
|
|
PP-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 1 600 ₽ |
|
| 33-1015 | O-RING - dehydrator | 2 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 36 | 66-5985 | TUBE - defrost | 1 | |
| 55-6809 | ADAPTER - o-ring | 1 | ||
| 55-6780 | NUT - bulkhead adapter | 4 | ||
| 37 | 66-637 | ELBOW - accumulator | 1 | |
| 38 | 55-1122 | ELBOW - accumulator | 1 | |
| 39 | 66-5984 | TUBE - suction inlet | 1 | |
| 55-7622 | ADAPTER - o-ring | 1 | ||
| 40 | 66-3682 | TUBE - accumulator to valve | 1 | |
| 41 | 22-188 | VALVE - discharge (see 113D11) | 1 | |
|
10-22-188 | Клапан, Discharge | 8 260 ₽ |
|
| 42 | 102-476 | COMPRESSOR - X214 (see 107E2) | 1 | |
| 43 | 22-832 | ADAPTER - suction (X214) | 1 | |
| 55-190 | SCREW - adapter | 4 | ||
| 55-3252 | WASHER (copper) | 4 | ||
| 44 | 55-2365 | HANGER - dehydrator | 1 | |
| 55-1587 | SCREW - hanger | 1 | ||
| 55-2979 | SCREW - dehydrator | 1 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 45 | 99-4890 | ANGLE - tank | 2 | |
| 55-2977 | SCREW - angle | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 46 | 66-3850 | TUBE - liquid connection | 1 | |
| 47 | 66-1801 | TUBE - defrost connection | 1 | |
| 55-2363 | LOCKWASHER - tank | 2 | ||
| 55-7531 | WASHER - special | 2 | ||
| 55-4955 | NUT - tank | 2 |
