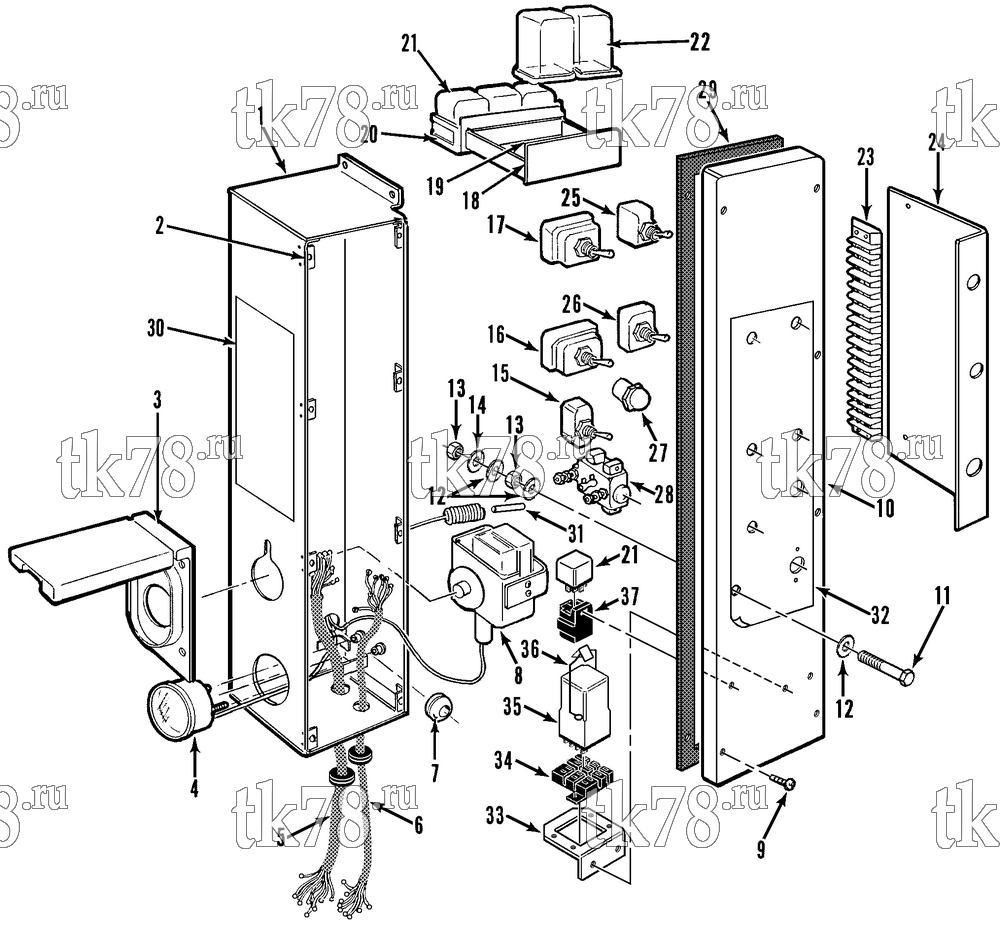

Установкa Thermo King UMD, UMD-II, SUMD-II, UMD-II MAX, SUMD-II MAX схема CONTROL BOX (MAX UNITS) – 113D13
Обновление от: 8/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2326 | BOX - only | 1 | |
| 2 | 99-6652 | TAB - cover | 8 | |
| 55-2988 | RIVET - tab | 16 | ||
| 3 | 99-5635 | COVER - thermostat | 1 | |
| 33-1368 | GASKET - cover | 1 | ||
| 55-3654 | SCREW - cover | 4 | ||
| 55-4560 | NUT | 4 | ||
| 33-1373 | GASKET - cover | 1 | ||
| 4 | 61-3467 | THERMOMETER | 1 | |
|
10-61-3467 | Термометр | 15 250 ₽ |
|
| 66-1153 | LENS | 1 | ||
| 33-2430 | GASKET - lens (use on plastic body thermometer) | 1 | ||
| 33-666 | GASKET - lens (used on metal body thermometer) | 1 | ||
| 41-2590 | THERMOMETER - digital LED (F) | 1 | ||
| 44-5234 | SENSOR (10 ft) | 1 | ||
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 55-3513 | SCREW - thermometer | 3 | ||
| 55-3013 | FLATWASHER | 3 | ||
| 55-5754 | NUT | 3 | ||
| 5 | 44-8582 | HARNESS - remote control box | 1 | |
| 33-572 | GROMMET - harness | 1 | ||
| 6 | 41-232 | HARNESS - evaporator | 1 | |
| 33-740 | GROMMET - harness | 1 | ||
| 7 | 33-432 | GROMMET | 1 | |
| 8 | 45-1582 | THERMOSTAT (C) | 1 | |
| 45-1580 | THERMOSTAT (F) | 1 | ||
| 44-8583 | HARNESS - thermostat | 1 | ||
| 99-6653 | PLATE - thermostat | 1 | ||
| 55-3683 | SCREW - thermostat | 3 | ||
| 9 | 55-2991 | SCREW - cover | 8 | |
| 55-2964 | LOCKWASHER | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 10 | 91-5125 | COVER - assembly | 1 | |
| 11 | 55-3000 | SCREW - ground | 1 | |
| 12 | 55-2996 | LOCKWASHER | 3 | |
| 13 | 55-2965 | NUT | 2 | |
| 14 | 55-2001 | FLATWASHER | 1 | |
| 15 | 44-1164 | SWITCH - manual defrost | 1 | |
|
10-44-1164 | Выключатель размораживания, JD/KD/MD/RD/TD-I/II / SB-I/II/III | 2 890 ₽ |
|
|
P-10-01129-01 | Выключатель разморозки, Genesis/Thunderbird | 2 890 ₽ |
|
| 16 | 44-709 | SWITCH - diesel/electric | 1 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 17 | 44-5584 | SWITCH - preheat/start | 1 | |
| 18 | 99-6658 | BRACKET - relay | 1 | |
| 55-3842 | SCREW - relay | 2 | ||
| 55-2001 | FLATWASHER - bracket | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 19 | 44-3184 | SOCKET - relay | 2 | |
| 55-3010 | RIVET - socket | 4 | ||
| 44-3515 | RESISTOR (47 ohm, 1/2 watt) | 1 | ||
| 20 | 44-5537 | SOCKET - relay | 3 | |
| 55-3136 | RIVET - socket | 3 | ||
| 21 | 41-895 | RELAY - evaporator fan (high speed low oil pressure) | 3 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 22 | 44-3186 | RELAY - defrost (throttle) | 2 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 99-6661 | NAMEPLATE - Relay ID | 1 | ||
| 99-2027 | SPRING - holddown | 2 | ||
| 55-2771 | CLAMP - spring | 2 | ||
| 23 | 44-4805 | BOARD - terminal | 1 | |
| 55-5070 | SCREW - board | 2 | ||
| 55-1516 | NUT (hex) | 2 | ||
| 24 | 91-1936 | BRACKET - terminal board | 1 | |
| 91-1909 | MARKSTRIP - terminal board | 1 | ||
| 99-3427 | MOUNT - cable tie | 2 | ||
| 55-2647 | RIVET - blind | 2 | ||
| 25 | 44-1357 | SWITCH - on/off | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 26 | 44-490 | SWITCH - Fuelsaver | 1 | |
|
10-44-490 | Выключатель | 2 590 ₽ |
|
| 27 | 44-1093 | LIGHT - indicator | 1 | |
| 44-984 | BULB - light | 1 | ||
| 28 | 40-1082 | SWITCH - temperature cutout | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-1556 | RESISTOR - cutout switch | 1 | ||
|
10-44-1556 | Резистор теплового реле, 12V 5Ω | 1 230 ₽ |
|
| 44-2119 | SEAL - pushbutton | 1 | ||
| 55-3511 | SCREW - switch | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 29 | 33-2462 | GASKET - cover | 1 | |
| 30 | 91-5129 | NAMEPLATE - operating instructions (SUMD MAX) | 1 | |
| 91-5130 | NAMEPLATE - operating instructions (UMD MAX) | 1 | ||
| 31 | 99-7473 | PLUG - wood | 1 | |
| 32 | 91-8780 | NAMEPLATE - cover | 1 | |
| 33 | 91-2296 | BRACKET - relay | 1 | |
| 55-3025 | SCREW - bracket | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 34 | 44-3184 | SOCKET - relay | 1 | |
| 35 | 41-468 | TIMER - defrost | 1 | |
| 36 | 99-8475 | HOLDDOWN - relay | 1 | |
| 55-2771 | CLAMP - speednut | 1 | ||
| 55-3010 | RIVET - blind | 2 | ||
| 37 | 44-5537 | SOCKET - relay | 1 | |
| 55-5975 | SCREW - socket | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 1 |
