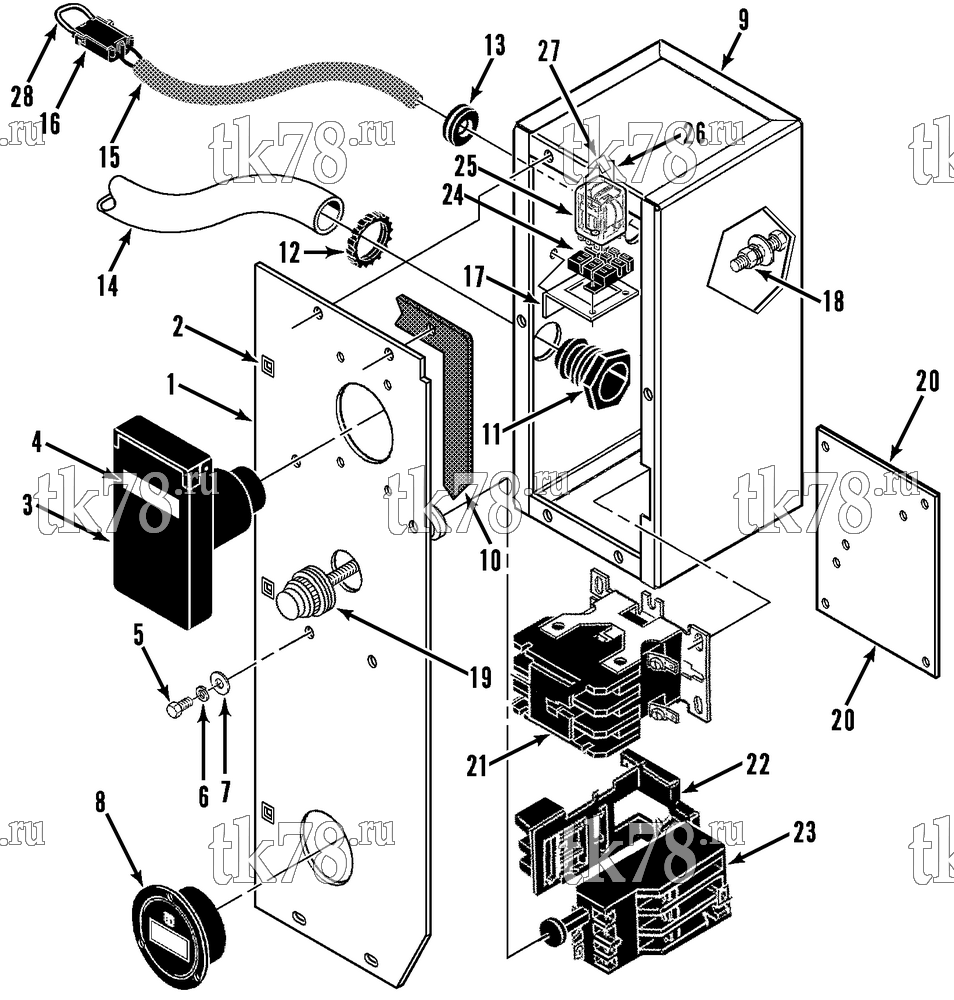

Установкa Thermo King UMD, UMD-II, SUMD-II, UMD-II MAX, SUMD-II MAX схема HIGH VOLTAGE BOX & COVER ASSEMBLY (MAX UNITS) – 113D12
Обновление от: 1/29/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-5124 | COVER - box | 1 | |
| 2 | 55-3059 | NUT - captive | 3 | |
| 3 | 44-4585 | RECEPTACLE - power (380V, UMD) | 1 | |
| 44-4584 | RECEPTACLE - power (230V, SUMD) | 1 | ||
| 55-5722 | SCREW - receptacle | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | LOCKNUT | 4 | ||
| 4 | 99-6907 | NAMEPLATE - 380/460 Volt | 1 | |
| 99-3195 | NAMEPLATE - 208/230 Volt | 1 | ||
| 99-7834 | NAMEPLATE - Caution | 1 | ||
| 5 | 55-2991 | SCREW - cover | 6 | |
| 6 | 55-2964 | LOCKWASHER | 6 | |
| 7 | 55-2001 | FLATWASHER | 6 | |
| 8 | 44-8764 | HOURMETER | 1 | |
|
10-44-8764 | Счетчик часов | 7 260 ₽ |
|
| 9 | 91-5122 | BOX - high voltage | 1 | |
| 10 | 99-1908 | STRIP - gasket (50 ft) | A/R | |
| 11 | 55-2788 | FITTING - barb | 1 | |
| 12 | 55-2635 | NUT | 1 | |
| 13 | 33-1215 | GROMMET | 1 | |
| 14 | 44-9827 | HARNESS - motor | 1 | |
| 15 | 41-230 | HARNESS - volt low/high | 1 | |
| 16 | 44-5835 | CONNECTOR - shroud | 1 | |
| 44-5883 | TERMINAL - male (18-20 ga) | 2 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 2 | ||
| 17 | 99-4268 | BRACKET - relay | 1 | |
| 55-2995 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 18 | 55-3000 | SCREW - ground | 1 | |
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2996 | LOCKWASHER (internal tooth) | 3 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2965 | NUT | 2 | ||
| 19 | 91-4330 | BUTTON - reset | 1 | |
| 92-8854 | BUTTON - reset | 1 | ||
| 55-411 | FLATWASHER | 1 | ||
| 20 | 91-5123 | PLATE - contactor | 1 | |
| 55-3842 | SCREW - plate | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 21 | 41-5631 | CONTACTOR - heater (24 volt coil) | 1 | |
| 41-5630 | CONTACTOR - motor (12 volt coil) | 1 | ||
| 55-4438 | SCREW - contactor | 2 | ||
| 55-2998 | LOCKWASHER | 4 | ||
| 55-2999 | NUT | 2 | ||
| 22 | 41-6096 | ADAPTER - relay | 1 | |
| 55-2749 | SCREW - base | 2 | ||
| 55-2998 | LOCKWASHER | 4 | ||
| 55-2999 | NUT | 2 | ||
| 23 | 41-5622 | RELAY - overload | 1 | |
| 24 | 44-3184 | SOCKET - relay | 1 | |
| 25 | 44-4583 | RELAY (3pdt, 240VAC coil) | 1 | |
| 26 | 99-2027 | SPRING - holddown | 1 | |
| 55-2270 | RIVET - holddown | 2 | ||
| 27 | 55-2771 | CLAMP | 1 | |
| 28 | 41-231 | CONNECTOR - jumper assembly (SUMD) | 1 |
