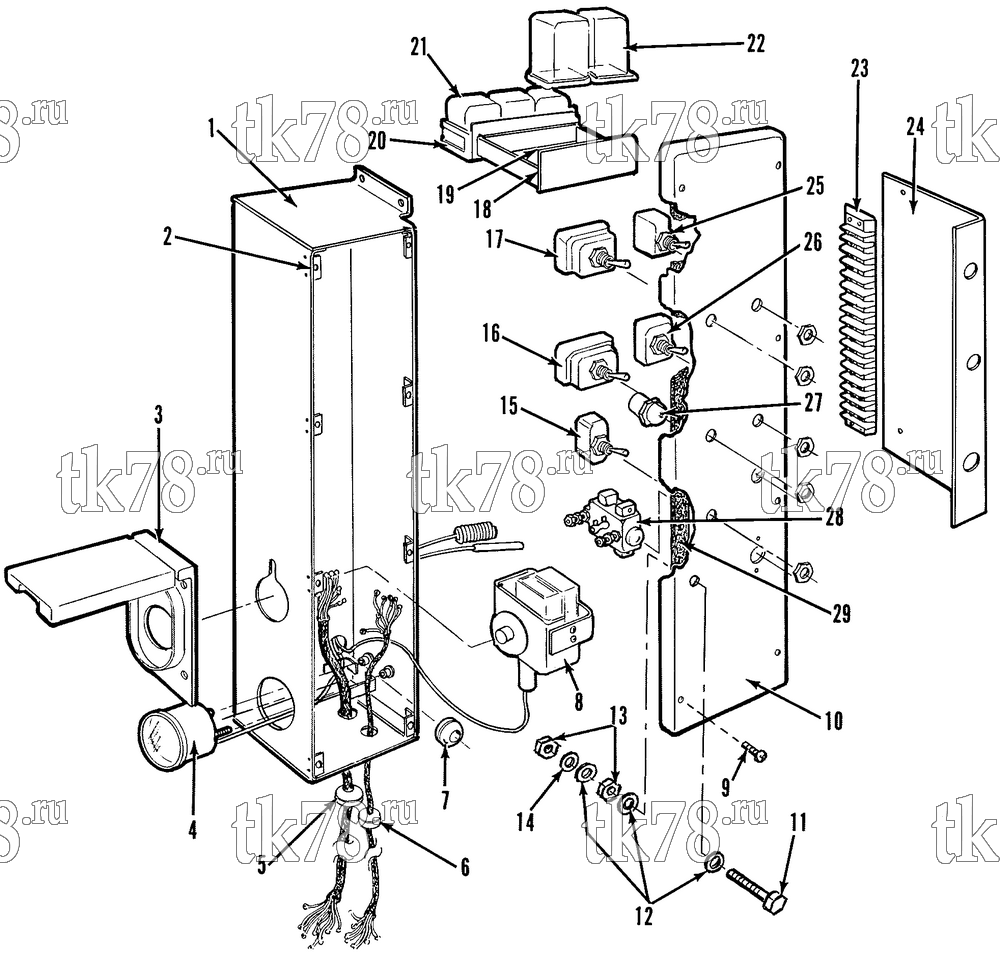

Установкa Thermo King UMD 20DG схема CONTROL BOX – 56C1
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2326 | BOX | 1 | |
| 2 | 99-6652 | TAB - cover | 8 | |
| 55-2988 | RIVET - tab | 16 | ||
| 3 | 99-5635 | COVER - thermostat | 1 | |
| 33-1368 | GASKET - cover | 1 | ||
| 33-1373 | GASKET - cover to box | 1 | ||
| 55-3564 | SCREW - cover | 4 | ||
| 55-664 | NUT | 4 | ||
| 4 | 61-3467 | THERMOMETER (F/C) | 1 | |
|
10-61-3467 | Термометр | 15 250 ₽ |
|
| 66-1153 | LENS | 1 | ||
| 33-2430 | GASKET - lens (use on plastic body thermometer) | 1 | ||
| 33-666 | GASKET - lens (use on metal body thermometer) | 1 | ||
| 41-2590 | THERMOMETER - digital LED (F) | 1 | ||
| 44-5234 | SENSOR (10 ft) | 1 | ||
|
10-44-5234 | Сенсор | 14 130 ₽ |
|
| 5 | 33-572 | GROMMET (3/4 id) | 1 | |
| 6 | 33-740 | GROMMET (7/16 id) | 1 | |
| 44-7083 | HARNESS - evaporator | 1 | ||
| 7 | 33-432 | GROMMET | 1 | |
| 8 | 45-1582 | THERMOSTAT | 1 | |
| 99-6653 | PLATE - thermostat | 1 | ||
| 55-3683 | SCREW - thermostat | 3 | ||
| 9 | 55-2991 | SCREW - cover | 8 | |
| 55-2964 | LOCKWASHER | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 10 | 99-6654 | COVER - control box | 1 | |
| 11 | 55-3000 | SCREW - ground | 1 | |
| 12 | 55-2996 | LOCKWASHER | 3 | |
| 13 | 55-2965 | NUT | 2 | |
| 14 | 55-2001 | FLATWASHER | 1 | |
| 15 | 44-1164 | SWITCH - manual defrost | 1 | |
|
P-10-01129-01 | Выключатель разморозки, Genesis/Thunderbird | 2 890 ₽ |
|
|
10-44-1164 | Выключатель размораживания, JD/KD/MD/RD/TD-I/II / SB-I/II/III | 2 890 ₽ |
|
| 99-1622 | NAMEPLATE - manual defrost | 1 | ||
| 16 | 44-709 | SWITCH - diesel/electric | 1 | |
|
10-44-709 | Выключатель четырехполюсный | 5 130 ₽ |
|
| 99-6656 | NAMEPLATE - diesel/electric | 1 | ||
| 17 | 44-5584 | SWITCH - preheat/start | 1 | |
| 99-6655 | NAMEPLATE - preheat/start | 1 | ||
| 18 | 99-6658 | BRACKET - relay | 1 | |
| 55-2001 | FLATWASHER - bracket | 2 | ||
| 55-3025 | SCREW - relay | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 19 | 44-3184 | SOCKET - relay | 2 | |
| 44-3515 | RESISTOR (47 ohm, 1/2 watt) | 1 | ||
| 20 | 44-5537 | SOCKET - relay | 3 | |
| 21 | 44-9111 | RELAY - evaporator fan (high speed low oil pressure) | 3 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 22 | 44-3186 | RELAY - defrost (throttle) | 2 | |
|
10-44-3186 | Реле оттайки, KD/MD/RD/TD/URD-III / SB-I/II/III / SMX | 3 440 ₽ |
|
| 99-2027 | SPRING - holddown | 2 | ||
| 55-2771 | CLAMP | 2 | ||
| 99-6661 | NAMEPLATE - Relay ID | 1 | ||
| 23 | 44-5980 | BOARD - terminal | 1 | |
| 99-6660 | MARKSTRIP | 1 | ||
| 55-4487 | SCREW - board | 1 | ||
| 55-1516 | NUT | 2 | ||
| 24 | 99-6659 | BRACKET - terminal board | 1 | |
| 25 | 44-1357 | SWITCH - on/off | 1 | |
|
10-44-1357 | Выключатель однополюсный | 4 400 ₽ |
|
| PP-44-1357 | Выключатель однополюсный | 2 000 ₽ |
|
|
| 99-6657 | NAMEPLATE - Fuelsaver | 1 | ||
| 26 | 44-490 | SWITCH - Fuelsaver | 1 | |
|
10-44-490 | Выключатель | 2 590 ₽ |
|
| 99-6662 | NAMEPLATE - Fuelsaver | 1 | ||
| 27 | 44-1093 | LIGHT - indicator | 1 | |
| 44-984 | BULB - light | 1 | ||
| 28 | 40-1082 | SWITCH - temperature cutout (assembly) | 1 | |
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-1556 | RESISTOR - switch | 1 | ||
|
10-44-1556 | Резистор теплового реле, 12V 5Ω | 1 230 ₽ |
|
| 40-1082 | SWITCH - only | 1 | ||
|
|
10-44-7774 | Тепловой предохранитель, SB-I/II/III / SMX | 12 430 ₽ |
|
| 44-2119 | SEAL - pushbutton | 1 | ||
| 44-2739 | NAMEPLATE - Push to Reset | 1 | ||
| 55-3511 | SCREW - switch | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 29 | 33-1465 | GASKET - cover | 1 | |
| 30 | 91-1992 | NAMEPLATE - operating instructions | 1 | |
| 31 | 99-7473 | PLUG - wood | 1 |
