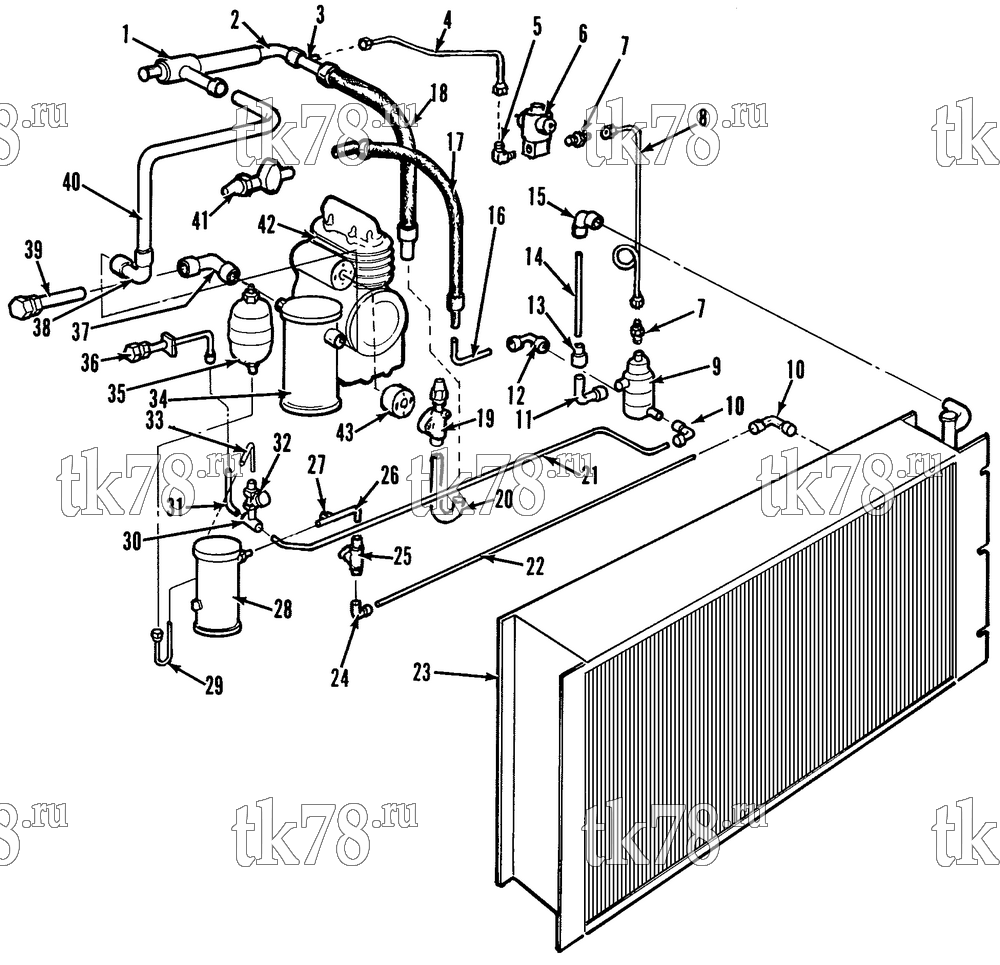

Установкa Thermo King UMD 20DG схема REFRIGERATION COMPONENTS – 56B7
Обновление от: 9/21/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-1180 | VALVE - pressure regulator | 1 | |
| 99-6648 | BRACKET - valve | 1 | ||
| 55-145 | SCREW - bracket | 3 | ||
| 55-411 | FLATWASHER | 6 | ||
| 55-4118 | NUT | 3 | ||
| 55-3547 | U-BOLT - valve | 3 | ||
| 55-4560 | NUT - u-bolt | 6 | ||
| 55-2001 | FLATWASHER | 6 | ||
| 2 | 55-1122 | ELBOW | 1 | |
| 3 | 66-3669 | TUBE - elbow to vibrasorber | 1 | |
| 66-874 | FITTING - flare | 1 | ||
| 4 | 66-8055 | TUBE - to pilot solenoid | 1 | |
| 5 | 55-308 | ELBOW | 1 | |
| 6 | 66-4929 | VALVE - pilot solenoid | 1 | |
| 41-1521 | COIL | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 55-4523 | SCREW - bracket | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 99-6649 | BRACKET - valve | 1 | ||
| 55-165 | SCREW - bracket | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-291 | NUT | 2 | ||
| 7 | 55-459 | COUPLING | 2 | |
| 8 | 66-3671 | TUBE - 3-way to solenoid | 1 | |
| 9 | 66-3983 | VALVE - 3-way (see 61A11) | 1 | |
| 99-6650 | BRACKET - valve | 1 | ||
| 55-826 | SCREW - bracket | 4 | ||
| 55-411 | FLATWASHER | 8 | ||
| 55-4118 | NUT | 4 | ||
| 10 | 55-1483 | ELBOW | 2 | |
| 11 | 66-634 | ELBOW | 1 | |
| 12 | 55-1541 | ELBOW | 1 | |
| 13 | 55-2186 | COUPLING - reducing | 1 | |
| 14 | 66-3673 | TUBE - 3-way to coil | 1 | |
| 15 | 55-2187 | ELBOW | 1 | |
| 16 | 66-3674 | TUBE - vibrasorber to 3-way | 1 | |
| 17 | 66-8787 | VIBRASORBER - discharge | 1 | |
| 99-6651 | BRACKET - vibrasorber clamp | 1 | ||
| 55-145 | SCREW - bracket | 2 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-4118 | NUT | 2 | ||
| 99-1853 | U-BOLT | 1 | ||
| 55-4560 | NUT - u-bolt | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 18 | 66-1784 | VIBRASORBER - suction | 1 | |
| 19 | 66-8186 | VALVE - suction (see 84C9) | 1 | |
| 20 | 66-3675 | TUBE - suction | 1 | |
| 21 | 66-3672 | TUBE - defrost | 1 | |
| 22 | 66-4928 | TUBE - liquid | 1 | |
| 23 | 67-651 | COIL - condenser/radiator (see 56B1) | 1 | |
| 24 | 55-1464 | ELBOW | 1 | |
| 25 | 66-3655 | VALVE - check | 1 | |
| 26 | 66-3677 | TUBE - valve to receiver | 1 | |
| 27 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 28 | 67-833 | TANK - receiver | 1 | |
| 66-3850 | TUBE - liquid connection | 1 | ||
| 55-402 | FLATWASHER - tank | 2 | ||
| 55-5078 | NUT - tank | 2 | ||
| 99-4890 | ANGLE - tank | 2 | ||
| 55-826 | SCREW - angle | 4 | ||
| 55-411 | FLATWASHER | 8 | ||
| 55-4118 | NUT | 4 | ||
| 29 | 66-2897 | TUBE - receiver to dehydrator | 1 | |
| 30 | 55-2296 | TEE | 1 | |
| 31 | 66-3678 | TUBE | 1 | |
| 32 | 66-3654 | VALVE - check (see 9G12) | 1 | |
| 33 | 66-3679 | TUBE - valve to receiver | 1 | |
| 34 | 67-652 | TANK - accumulator | 2 | |
| 55-851 | SCREW - accumulator | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 35 | 66-814 | DEHYDRATOR | 1 | |
|
10-66-814 | Дегидратор, KD/MD/RD-II | 5 700 ₽ |
|
| 55-2365 | HANGER - dehydrator | 1 | ||
| 55-145 | SCREW - hanger | 1 | ||
| 55-544 | SCREW - dehydrator | 1 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-4118 | NUT | 2 | ||
| 36 | 66-3680 | PLATE & TUBE - assembly | 1 | |
| 55-1510 | SCREW - plate | 4 | ||
| 55-431 | FLATWASHER | 8 | ||
| 55-5292 | NUT | 4 | ||
| 37 | 66-637 | ELBOW - accumulator | 1 | |
| 38 | 55-1122 | ELBOW - accumulator | 1 | |
| 39 | 66-3681 | TUBE - suction inlet | 1 | |
| 55-6172 | FITTING - solder | 1 | ||
| 33-507 | GROMMET (7/8 id) | 1 | ||
| 91-660 | DISC - closure | 1 | ||
| 40 | 66-3682 | TUBE - accumulator to valve | 1 | |
| 41 | 22-188 | VALVE - discharge (see 84C10) | 1 | |
|
10-22-188 | Клапан, Discharge | 8 260 ₽ |
|
| 66-1807 | ELBOW - valve to vibrasorber | 1 | ||
| 55-549 | COUPLING - valve | 1 | ||
| 42 | 102-474 | COMPRESSOR - D214 (see 92E12) | 1 | |
| 43 | 22-646 | ADAPTER - suction valve | 1 |
