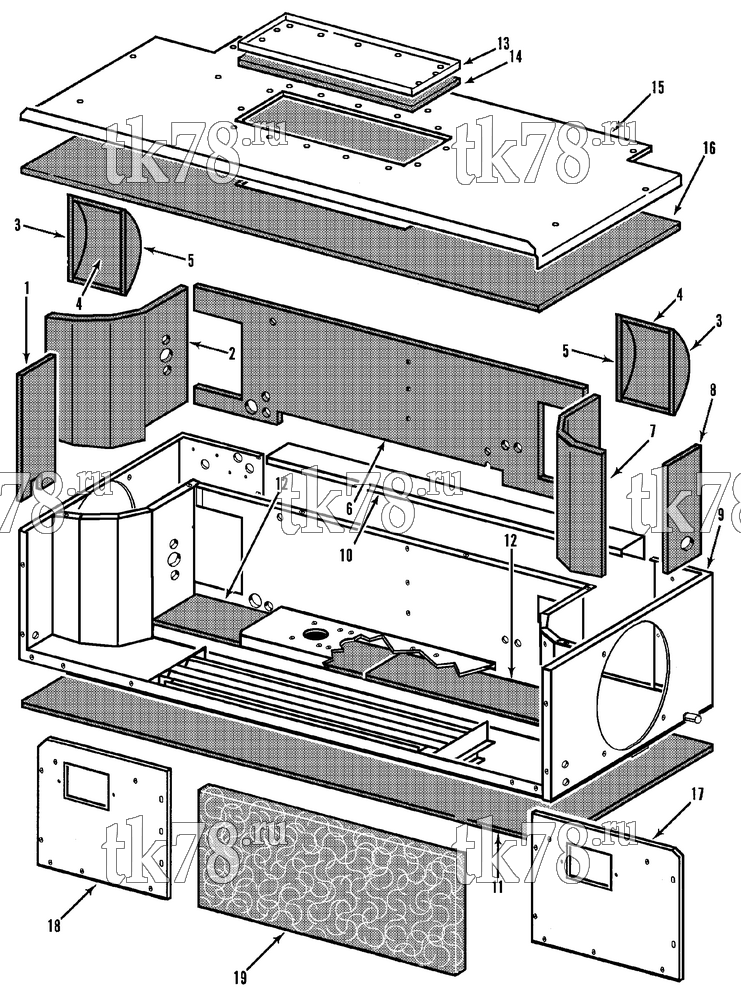

Установкa Thermo King UH1-M1 схема FRAME, PANELS, FILTER & INSULATION GROUP – 94B8
Обновление от: 6/24/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-1206 | INSULATION - panel (side) | 1 | |
| 2 | 91-1205 | INSULATION - bulkhead (curbside) | 1 | |
| 3 | 91-1219 | INSULATION - blower housing (side) | 2 | |
| 4 | 91-1221 | INSULATION - blower housing | 2 | |
| 5 | 91-1220 | INSULATION - blower housing (side) | 2 | |
| 6 | 91-1207 | INSULATION - bulkhead (rear) | 1 | |
| 7 | 91-1204 | INSULATION - bulkhead (roadside) | 1 | |
| 8 | 91-1208 | INSULATION - panel (side) | 1 | |
| 9 | 98-4181 | FRAME | 1 | |
| 10 | 98-3826 | SUPPORT - cover/rear panel | 1 | |
| 55-1587 | SCREW - support | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT (hexstop) | 4 | ||
| 11 | 91-1210 | INSULATION - unit (bottom) | 1 | |
| 12 | 91-1211 | INSULATION - channel | 2 | |
| 13 | 91-1232 | PANEL - access (top) | 1 | |
| 55-1587 | SCREW - panel | 14 | ||
| 55-1800 | LOCKWASHER | 14 | ||
| 55-2086 | FLATWASHER | 14 | ||
| 14 | 33-2032 | INSULATION - panel | 1 | |
| 15 | 98-3592 | COVER - unit | 1 | |
| 55-1587 | SCREW - cover | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-6430 | WASHER - special | 10 | ||
| 16 | 33-2033 | INSULATION - cover | 1 | |
| 17 | 91-1230 | PLATE - roadside | 1 | |
| 18 | 91-1229 | PLATE - curbside | 1 | |
| 55-1587 | SCREW - plate | 20 | ||
| 55-1800 | LOCKWASHER | 20 | ||
| 55-2086 | FLATWASHER | 20 | ||
| 19 | 91-6421 | FILTER - air | 1 |
