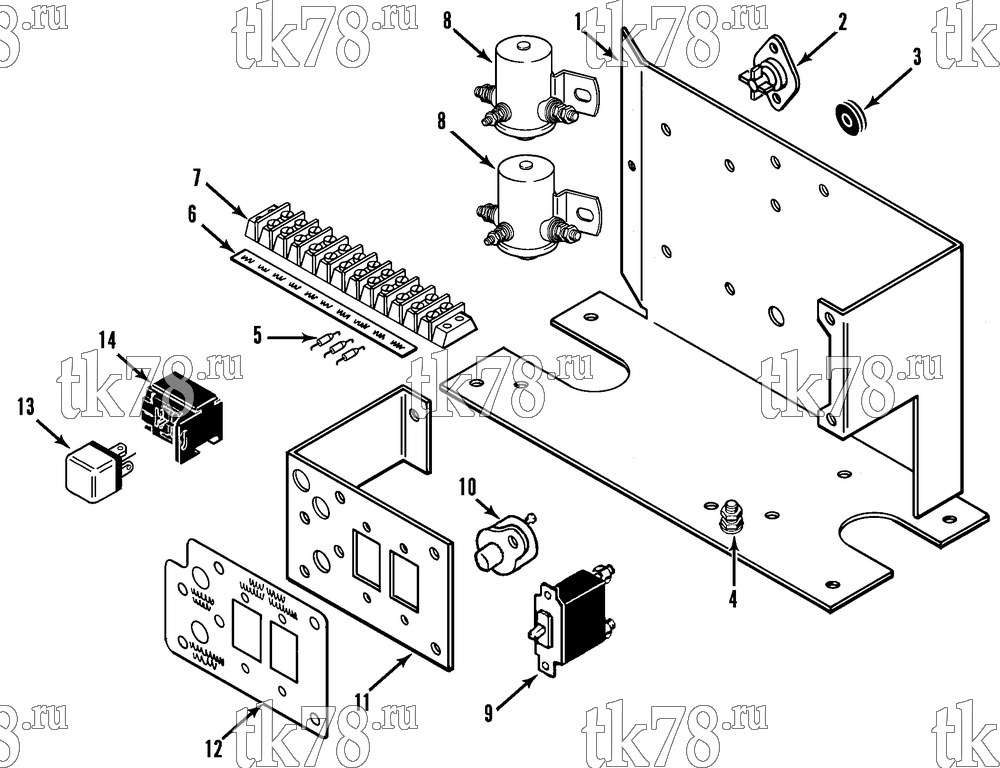

Установкa Thermo King UH1-M1 схема CONTROL PANEL ASSEMBLY – 94B6
Обновление от: 10/17/91
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-1234 | PANEL - control | 1 | |
| 55-1587 | SCREW - panel | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 2 | 44-3280 | RECTIFIER | 1 | |
| 55-1309 | SCREW - rectifier | 2 | ||
| 55-3233 | LOCKWASHER | 2 | ||
| 55-1266 | FLATWASHER | 2 | ||
| 3 | 33-451 | GROMMET | 1 | |
| 4 | 55-1230 | SCREW - ground | 1 | |
| 55-431 | FLATWASHER | 3 | ||
| 55-396 | LOCKWASHER (internal tooth) | 3 | ||
| 55-2700 | LOCKWASHER (internal/external tooth) | 1 | ||
| 55-2752 | NUT | 2 | ||
| 5 | 44-2756 | DIODE | 3 | |
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 6 | 91-1237 | NAMEPLATE | 1 | |
| 7 | 44-6190 | BOARD - terminal | 1 | |
| 55-1508 | SCREW - board | 2 | ||
| 55-3233 | LOCKWASHER | 2 | ||
| 55-1266 | FLATWASHER | 2 | ||
| 8 | 44-4397 | SOLENOID - fan #1 & 2 | 2 | |
| 55-165 | SCREW - solenoid | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 9 | 44-5494 | BREAKER - circuit (fan motor) | 1 | |
| 55-1466 | SCREW - breaker | 2 | ||
| 55-3233 | LOCKWASHER | 2 | ||
| 55-1266 | FLATWASHER | 2 | ||
| 10 | 44-7217 | BREAKER - circuit (15 amp, boost pump) | 1 | |
| 55-1049 | SCREW - breaker | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 11 | 91-1235 | BRACKET - circuit breaker | 1 | |
| 55-760 | SCREW - bracket | 3 | ||
| 55-1511 | LOCKWASHER | 3 | ||
| 55-431 | FLATWASHER | 3 | ||
| 12 | 91-1236 | NAMEPLATE - circuit breaker | 1 | |
| 13 | 44-9111 | RELAY - mini (boost pump) | 1 | |
|
10-44-9111 | Реле | 1 310 ₽ |
|
| 14 | 44-5537 | SOCKET - relay | 1 | |
| 55-3150 | SCREW - socket | 1 | ||
| 55-396 | LOCKWASHER | 1 | ||
| 55-431 | FLATWASHER | 1 |
