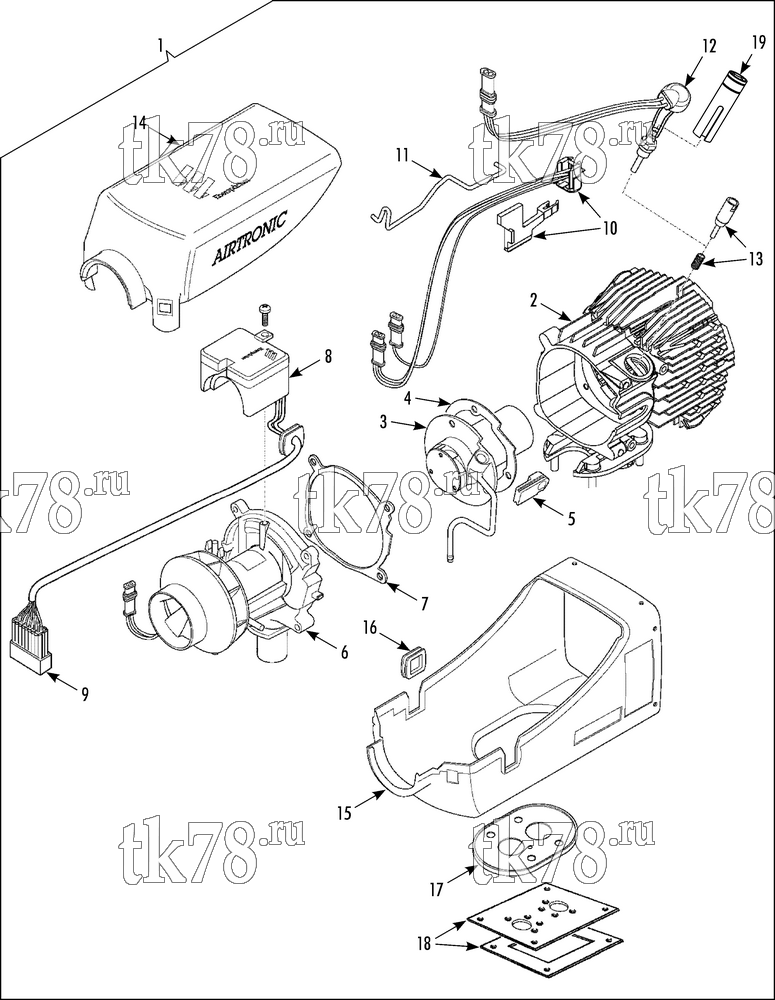

Установкa Thermo King TriPac e схема HEATER ASSEMBLY D4 – 244A2
Обновление от: 12/15/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9375 | HEATER - Airtronic (D4) | 1 | |
| 2 | 81-488 | HEAT EXCHANGER | 1 | |
| 3 | 41-8092 | BURNER | 1 | |
| 51-1230 | SCREW - burner | 3 | ||
| 4 | 33-4433 | GASKET | 1 | |
| 5 | 33-4182 | GROMMET | 1 | |
| 6 | 41-8093 | MOTOR - blower | 1 | |
| 51-1231 | SCREW - motor | 1 | ||
| 7 | 33-4434 | GASKET - motor | 1 | |
| 8 | 41-9371 | MODULE - control | 1 | |
| 51-1232 | SCREW - module | 1 | ||
| 9 | 41-6826 | CONNECTOR - plug | 1 | |
| 10 | 41-6820 | SENSOR - overheat/flame | 1 | |
| 11 | 92-5034 | CLIP | 1 | |
| 12 | 42-453 | PIN - glow | 1 | |
| 13 | 41-6822 | STRAINER - glow pin | 1 | |
| 20-41-6822 | Сетка | 2 760 ₽ |
|
|
| 14 | 92-6752 | COVER - top | 1 | |
| 15 | 92-6753 | COVER - bottom | 1 | |
| 16 | 33-4184 | GROMMET | 1 | |
| 17 | 33-4185 | SEAL - flange | 1 | |
| 18 | 92-5035 | PLATE & SEAL | 1 | |
| 81-545 | PLATE | 1 | ||
| 83-344 | SEAL - plate | 1 | ||
| 85-506 | SCREW - plate | 4 | ||
| 203-391 | SEALER - tape | A/R | ||
| 19 | 204-1957 | TOOL - socket (for Glow Pin) | 1 |
