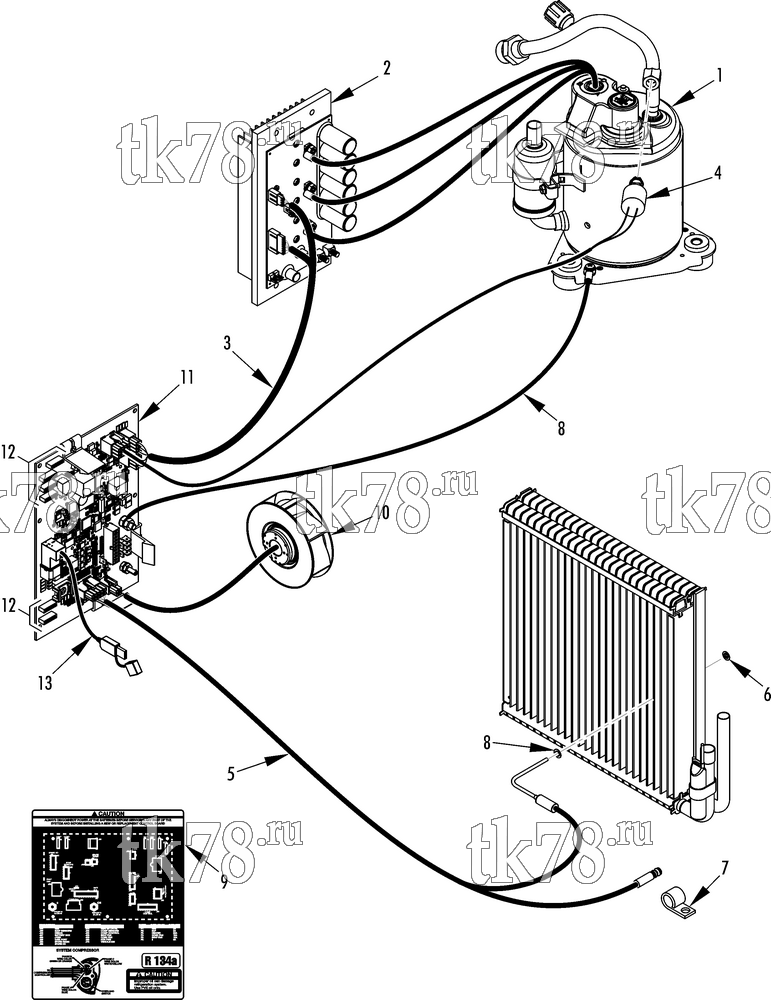

Установкa Thermo King TriPac e схема EVAPORATOR ELECTRICAL COMPONENTS – 242H5
Обновление от: 6/17/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-969 | COMPRESSOR (see 242E2) | 1 | |
| 2 | 45-2321 | DRIVE - compressor assembly | 1 | |
| 45-2322 | DRIVE | 1 | ||
| 3 | 41-9106 | HARNESS - compressor control | 1 | |
| 4 | 41-9219 | SWITCH - hpco | 1 | |
| 5 | 45-2347 | HARNESS - temperature assembly | 1 | |
| 41-9356 | CONNECTOR (10-pin) | 1 | ||
| 41-5718 | SOCKET (22-18 ga) | 4 | ||
| 6 | 51-2000 | WASHER - push on | 2 | |
| 7 | 55-2239 | CLAMP (.375 dia) | 1 | |
| 55-9761 | SCREW | 1 | ||
| 8 | 41-9408 | CABLE - compressor ground | 1 | |
| 41-6710 | TERMINAL - ring (#10, 8 awg) | 2 | ||
| 9 | 92-8295 | NAMEPLATE - Fuse Locations | 1 | |
| 10 | 78-1714 | BLOWER (see 242E3 & 242H5) | 1 | |
| 11 | 45-2392 | BOARD - control unit | 1 | |
| 55-3029 | SCREW | 6 | ||
| 55-2202 | LOCKWASHER | 6 | ||
| 55-2201 | FLATWASHER | 6 | ||
| 12 | 41-2543 | FUSE (2 amp) | 2 | |
| 41-1292 | FUSE (5 amp) | 1 | ||
|
10-41-1292 | Предохранитель 5 ампер 10 шт | 1 860 ₽ |
|
| 44-9344 | FUSE (15 amp) | 2 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 41-2978 | FUSE (20 amp) | 1 | ||
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 13 | 204-1926 | CABLE - download (USB) | 1 |
