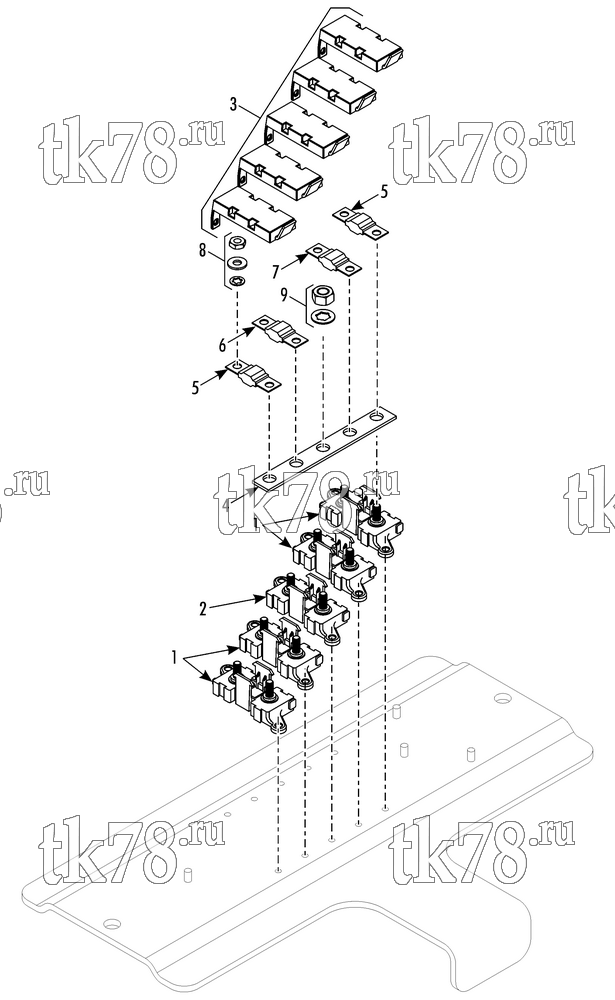

Установкa Thermo King TriPac e схема FUSE BLOCK – 242H4
Обновление от: 3/10/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9357 | BASE - fuse (w/ #10 stud) | 4 | |
| 55-5047 | RIVET | 8 | ||
| 55-2201 | FLATWASHER | 1 | ||
| 2 | 41-9358 | BASE - fuse (w/ 5/16 stud) | 2 | |
| 55-5047 | RIVET | 6 | ||
| 55-2201 | FLATWASHER | 6 | ||
| 3 | 41-9359 | COVER | 5 | |
| 4 | 41-9360 | BUSSBAR | 1 | |
| 5 | 41-8618 | FUSE (60 amp) | 2 | |
| 6 | 41-9361 | FUSE (40 amp) | 1 | |
| 7 | 41-9362 | FUSE (150 amp) | 1 | |
| 8 | 51-2006 | LOCKWASHER (#10, brass/nickel) | 14 | |
| 51-2007 | FLATWASHER (#10, brass/nickel) | 14 | ||
| 51-2008 | NUT (#10, brass/nickel) | 14 | ||
| 9 | 51-1886 | LOCKWASHER (5/16, brass/nickel) | 1 | |
| 51-1885 | NUT (5/16, brass/nickel) | 1 |
