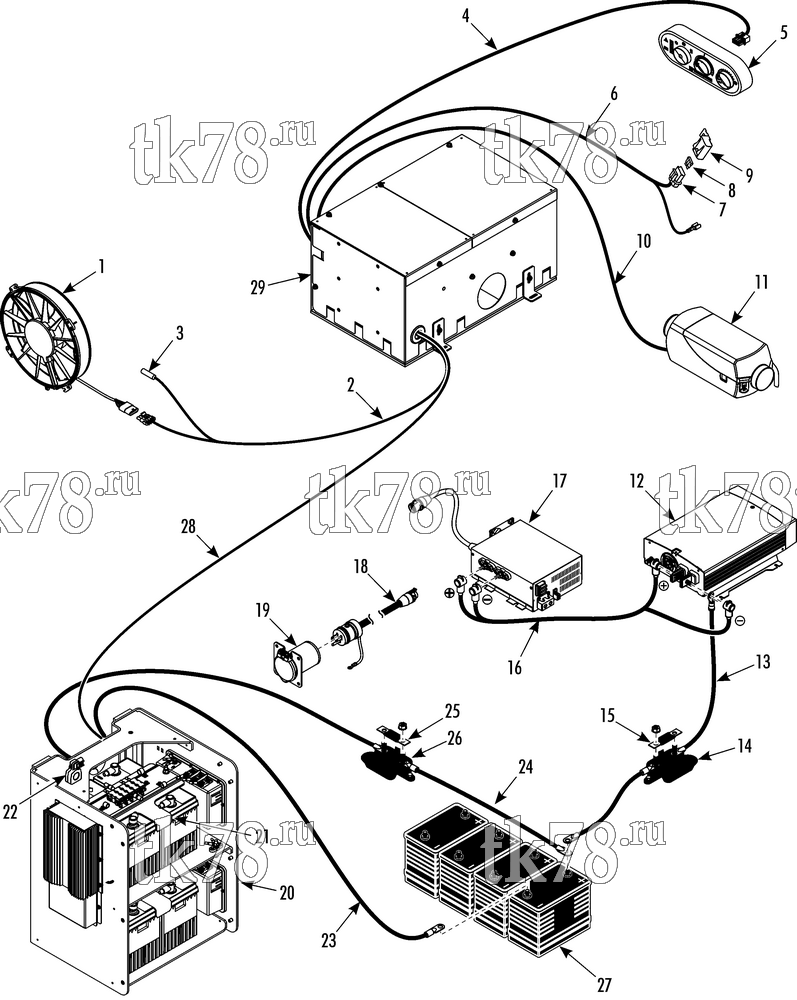

Установкa Thermo King TriPac e схема ELECTRICAL COMPONENTS – 242E8
Обновление от: 7/23/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1715 | FAN - condenser (see 242E1) | 1 | |
| 2 | 41-9377 | HARNESS - condenser fan & temperature | 1 | |
| 44-5622 | CONNECTOR - female (6-pin) | 1 | ||
| 44-7881 | CONNECTOR - tower (4-pin) | 1 | ||
| 3 | 41-5436 | SENSOR - return air | 1 | |
| 4 | 41-9382 | HARNESS - HMI | 1 | |
| 41-4734 | PLUG (8-pin) | 2 | ||
| 41-5718 | SOCKET (gold, 22-18 ga) | 16 | ||
| 5 | 45-2393 | CONTROLLER - HMI | 1 | |
| 6 | 41-9380 | HARNESS - ignition | 1 | |
| 41-8873 | DIODE | 1 | ||
| 7 | 41-1770 | HOLDER - fuse | 1 | |
| 30-41-1770 | Гнездо предохранителя 32V 30А | 760 ₽ |
|
|
| 8 | 41-1932 | FUSE (1 amp) | 1 | |
| 9 | 41-1769 | COVER - fuse | 1 | |
| 30-41-1769 | Крышка предохранителя | 510 ₽ |
|
|
| 41-8965 | TERMINAL | 2 | ||
| 203-524 | GEL - anti corrosion | A/R | ||
| 10 | 41-9378 | HARNESS - heater | 1 | |
| 11 | 41-9374 | HEATER (D2 see 242H8) | 1 | |
| 41-9375 | HEATER (D4 see 244A1) | 1 | ||
| 12 | 45-2341 | INVERTER (1000 W, see 244D1) | 1 | |
| 13 | 40-1075 | HARNESS - inverter kit | 1 | |
| 41-8854 | TERMINAL - lug (1/4, 8 awg) | 1 | ||
| 41-9449 | TERMINAL - lug (5/16, 2 awg) | 3 | ||
| 41-8598 | TERMINAL - lug (3/8, 2 awg) | 2 | ||
| 14 | 41-7008 | HOLDER - fuse | 1 | |
| 30-41-7008 | Гнездо предохранителя | 1 820 ₽ |
|
|
| 15 | 41-9399 | FUSE (150 amp) | 1 | |
| 55-2977 | SCREW | A/R | ||
| 55-2086 | FLATWASHER | A/R | ||
| 55-4953 | NUT | A/R | ||
| 16 | 41-9406 | HARNESS - inverter to converter | 1 | |
| 41-9449 | TERMINAL - lug (5/16, 2 awg) | 4 | ||
| 41-9451 | TERMINAL - ring (red 5/16, 8 ga) | 1 | ||
| 41-5670 | CAP - insulator (red) | 1 | ||
| 41-9402 | CAP - insulator (black) | 1 | ||
| 17 | 45-2479 | CONVERTER - power (AC-DC) | 1 | |
| 18 | 41-9381 | CORD - exterior power | 1 | |
| 19 | 41-9398 | HOUSING - power cord | 1 | |
| 51-2022 | SCREW | 4 | ||
| 55-3800 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 4 | ||
| 20 | NSS | FRAME - battery (see 242E7) | 1 | |
| 21 | NSS | BLOCK - fuse (see 242H4) | 1 | |
| 22 | 41-9376 | SENSOR - current (see 242E7) | 1 | |
| 23 | 41-9405 | CABLE - truck batteries to junction block (neg) | 1 | |
| 41-8598 | TERMINAL - lug (3/8, 2 awg) | 2 | ||
| 24 | 41-9403 | CABLE - truck batteries to fuse block (pos) | 1 | |
| 41-9449 | TERMINAL - lug (5/16, 2 awg) | 1 | ||
| 41-8598 | TERMINAL - lug (3/8, 2 awg) | 1 | ||
| 25 | 41-9399 | FUSE (175 amp) | 1 | |
| 26 | 41-7008 | HOLDER - fuse | 1 | |
| 30-41-7008 | Гнездо предохранителя | 1 820 ₽ |
|
|
| 27 | 203-781 | BATTERY (G31, 1150 CCA) | A/R | |
| 28 | 41-9383 | HARNESS - battery box control (see 242E7) | 1 | |
| 29 | NSS | EVAPORATOR (see 242H5) | 1 |
