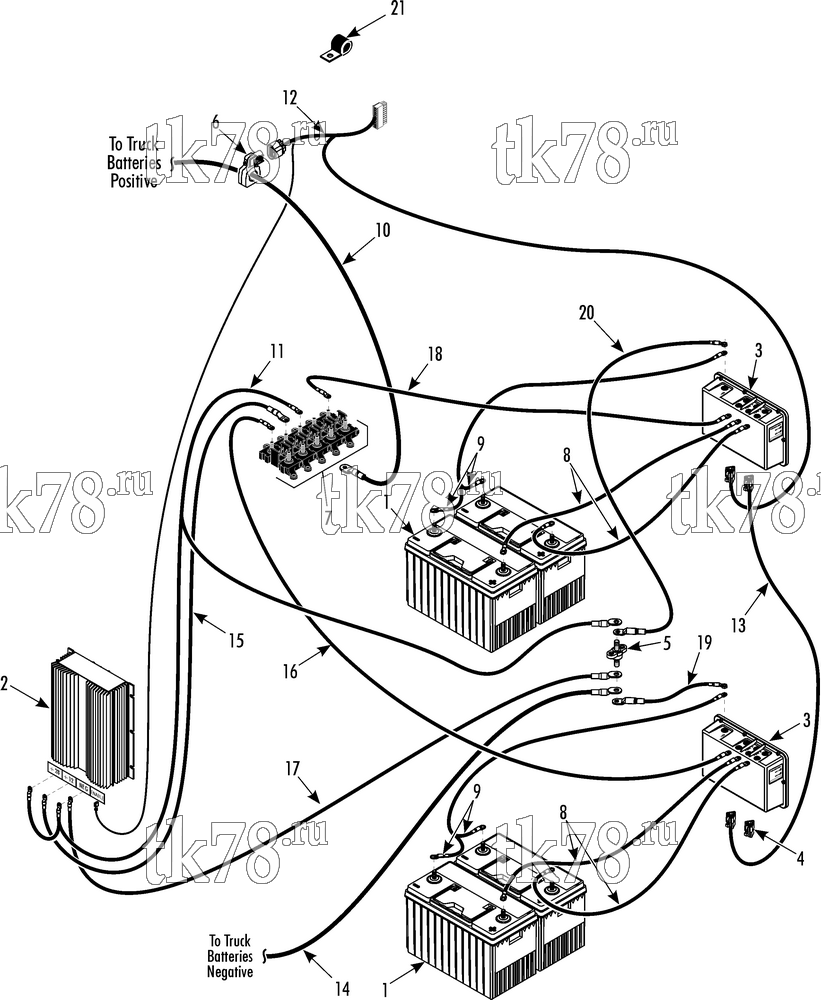

Установкa Thermo King TriPac e схема BATTERY BOX ELECTRICAL COMPONENTS – 242E7
Обновление от: 4/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 203-781 | BATTERY (G31, 1150 CCA see 242E6) | 4 | |
| 2 | 45-2457 | CONVERTER (DC-DC) | 1 | |
| 55-9761 | SCREW | 6 | ||
| 3 | 45-2394 | CHARGER - battery (see 244D2) | 2 | |
| 4 | 41-9395 | TERMINATOR - plug w/ resistor | 1 | |
| 41-9396 | TERMINATOR - plug | 1 | ||
| 44-9536 | WEDGE (3-pin, see 112D9) | 1 | ||
| 5 | 51-1946 | BLOCK - junction | 1 | |
| 55-3442 | SCREW | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2965 | NUT | 2 | ||
| 6 | 41-9376 | SENSOR - current | 1 | |
| 55-5070 | SCREW | 2 | ||
| 55-3014 | LOCKWASHER | 2 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-2999 | NUT | 2 | ||
| 7 | NSS | BLOCK - fuse (see 242H4) | 1 | |
| 8 | 41-9400 | CABLE - battery to charger (positive) | 4 | |
| 41-6710 | TERMINAL - ring (#10, 8 awg) | 1 | ||
| 41-6709 | TERMINAL - lug (3/8, 8 awg) | 1 | ||
| 41-5670 | CAP - insulator (red) | 1 | ||
| 9 | 41-9401 | CABLE - battery to charger (negative) | 4 | |
| 41-8854 | TERMINAL - lug (1/4, 8 awg) | 1 | ||
| 41-6709 | TERMINAL - lug (3/8, 8 awg) | 1 | ||
| 41-9402 | CAP - insulator (black) | 1 | ||
| 10 | 41-9403 | CABLE - truck batteries to fuse block (positive) | 1 | |
| 41-9449 | TERMINAL - lug (5/16, 2 awg) | 1 | ||
| 41-8598 | TERMINAL - lug (3/8, 8 awg) | 1 | ||
| 11 | 41-9404 | HARNESS - controller to converter | 1 | |
| 41-6710 | TERMINAL - ring (#10, 8 awg) | 4 | ||
| 41-8854 | TERMINAL - lug (1/4, 8 awg) | 1 | ||
| 41-8839 | TERMINAL - lug (5/16, 2 awg) | 2 | ||
| 41-6709 | TERMINAL - lug (3/8, 8 awg) | 1 | ||
| 12 | 41-9383 | HARNESS - battery box control | 1 | |
| 41-9379 | CONNECTOR - plug (20-pin, see 193G5) | 1 | ||
| 44-9631 | PLUG (3-pin, see 112D9) | 1 | ||
| 44-9536 | WEDGE (3-pin, see 112D9) | 1 | ||
| 41-9384 | CONNECTOR - male (4-pin) | 1 | ||
| 41-9385 | TERMINAL | 4 | ||
| 41-9386 | SEAL | 4 | ||
| 13 | 41-9397 | HARNESS - smart charger (jumper) | 1 | |
| 44-9631 | PLUG (3-pin, see 112D9) | 2 | ||
| 44-9536 | WEDGE (3-pin, see 112D9) | 2 | ||
| 14 | 41-9405 | CABLE - truck batteries to junction block (negative) | 1 | |
| 41-8598 | TERMINAL - lug (3/8, 8 awg) | 2 | ||
| 15 | 41-9407 | CABLE - converter to fuse block | 1 | |
| 41-9450 | TERMINAL - lug (#10, 4 awg) | 1 | ||
| 41-7011 | TERMINAL - lug (5/16, 4 awg) | 1 | ||
| 16 | 41-9409 | CABLE - smart charger 2 to fuse block | 1 | |
| 41-6710 | TERMINAL - ring (#10, 8 awg) | 2 | ||
| 17 | 41-9410 | CABLE - converter to junction block | 1 | |
| 41-7011 | TERMINAL - lug (5/16, 4 awg) | 1 | ||
| 41-5672 | TERMINAL - lug (3/8, 4 awg) | 1 | ||
| 18 | 41-9411 | CABLE - smart charger 1 to fuse block | 1 | |
| 41-6710 | TERMINAL - ring (#10, 8 awg) | 2 | ||
| 19 | 41-9412 | CABLE - smart charger 2 to junction block | 1 | |
| 41-8854 | TERMINAL - lug (1/4, 8 awg) | 1 | ||
| 41-6709 | TERMINAL - lug (3/8, 8 awg) | 1 | ||
| 20 | 41-9413 | CABLE - smart charger 1 to junction block | 2 | |
| 41-8854 | TERMINAL - lug (1/4, 8 awg) | 1 | ||
| 41-6709 | TERMINAL - lug (3/8, 8 awg) | 1 | ||
| 21 | 51-1196 | CLAMP (.312 dia) | 2 | |
| 55-9309 | CLAMP (.500 dia) | 1 | ||
| 51-2013 | CLAMP (.562 dia) | 3 | ||
| 51-663 | CLAMP (.625 dia) | 1 | ||
| 55-2964 | LOCKWASHER - clamp | A/R | ||
| 55-2001 | FLATWASHER - clamp | A/R | ||
| 55-2965 | NUT - clamp | A/R |
