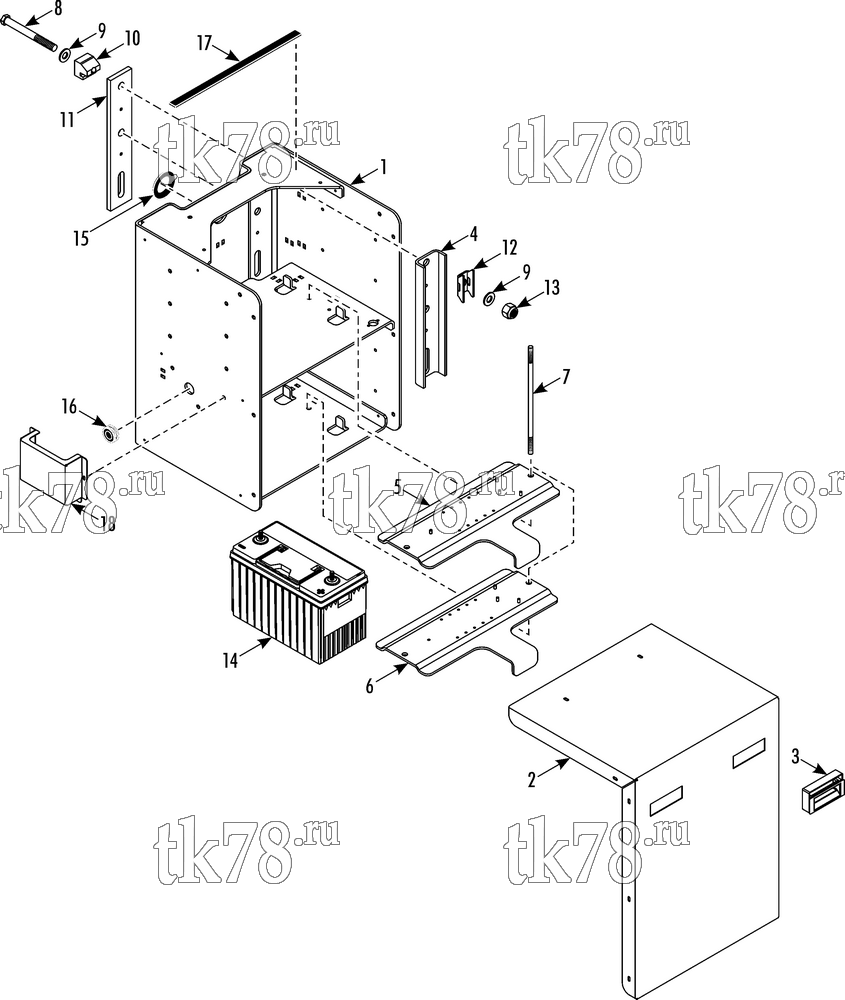

Установкa Thermo King TriPac e схема BATTERY BOX – 242E6
Обновление от: 4/5/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8487 | FRAME - battery | 1 | |
| 51-2004 | INSERT | 19 | ||
| 2 | 98-8488 | COVER - battery box | 1 | |
| 55-9761 | SCREW | 10 | ||
| 3 | 92-3925 | HANDLE - pull (black plastic) | 2 | |
| 4 | 92-8291 | CHANNEL - battery box | 2 | |
| 55-9761 | SCREW | 4 | ||
| 55-9762 | NUT & WASHER | 4 | ||
| 5 | 92-8293 | BRACKET - battery hold down (top) | 1 | |
| 55-6475 | STUD - self clinching | 4 | ||
| 6 | 92-8292 | BRACKET - battery hold down (lower) | 1 | |
| 55-6475 | STUD - self clinching | 3 | ||
| 7 | 51-2005 | ROD - hold down | 4 | |
| 55-2641 | FLATWASHER | 8 | ||
| 55-4955 | NUT - lock | 8 | ||
| 55-3300 | NUT - hexjam | 8 | ||
| 8 | 51-1313 | SCREW | 4 | |
| 9 | 55-4468 | FLATWASHER | 8 | |
| 10 | 92-5759 | CLAW | 4 | |
| 11 | 92-8294 | BAR - spacer | 2 | |
| 12 | 92-6826 | RETAINER - nut | 4 | |
| 13 | 51-1314 | NUT | 4 | |
| 14 | 203-781 | BATTERY (G31, 1150 CCA) | 4 | |
| 15 | 33-4626 | TUBE - split (.50 ID X 10 inch) | 2 | |
| 16 | 33-429 | GROMMET (7/8 ID) | 1 | |
| 17 | 33-3670 | STRIP - sealing (17.95 in) | 1 | |
| 18 | 92-8308 | COVER - converter | 1 | |
| 55-9761 | SCREW | 3 |
