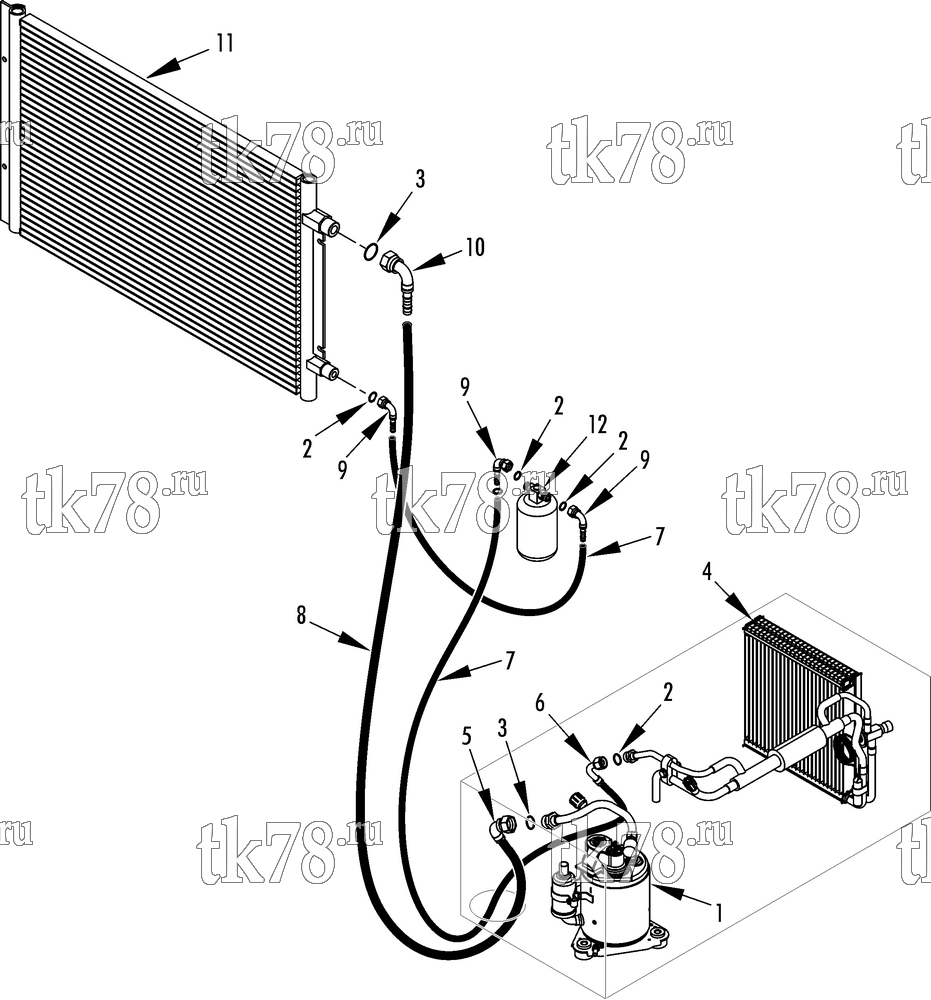

Установкa Thermo King TriPac e схема HOSE CONNECTIONS – 242E4
Обновление от: 8/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-969 | COMPRESSOR (see 242E2) | 1 | |
| 2 | 33-1461 | O-RING - tube-O (#6) | 4 | |
| 3 | 33-2350 | O-RING - tube-O (#8) | 2 | |
| 4 | 67-2464 | COIL - evaporator (see 242E2) | 1 | |
| 5 | 51-2453 | FITTING - 45 deg (#8) | 1 | |
| 6 | 51-2523 | FITTING - 45 deg (#6) | 1 | |
| 7 | 67-1708 | HOSE - refrigeration (#6) | A/R | |
| 8 | 67-1709 | HOSE - refrigeration (#8) | A/R | |
| 9 | 51-2393 | FITTING - 90 deg (tube-O, #6 hose) | 3 | |
| 10 | 51-2406 | FITTING - 90 deg (tube-O, #8) | 1 | |
| 11 | 67-2494 | COIL - condenser (see 242E1) | 1 | |
| 12 | 61-3552 | DEHYDRATOR | 1 | |
| 20-61-3552 | Дегидратор | 22 430 ₽ |
|
