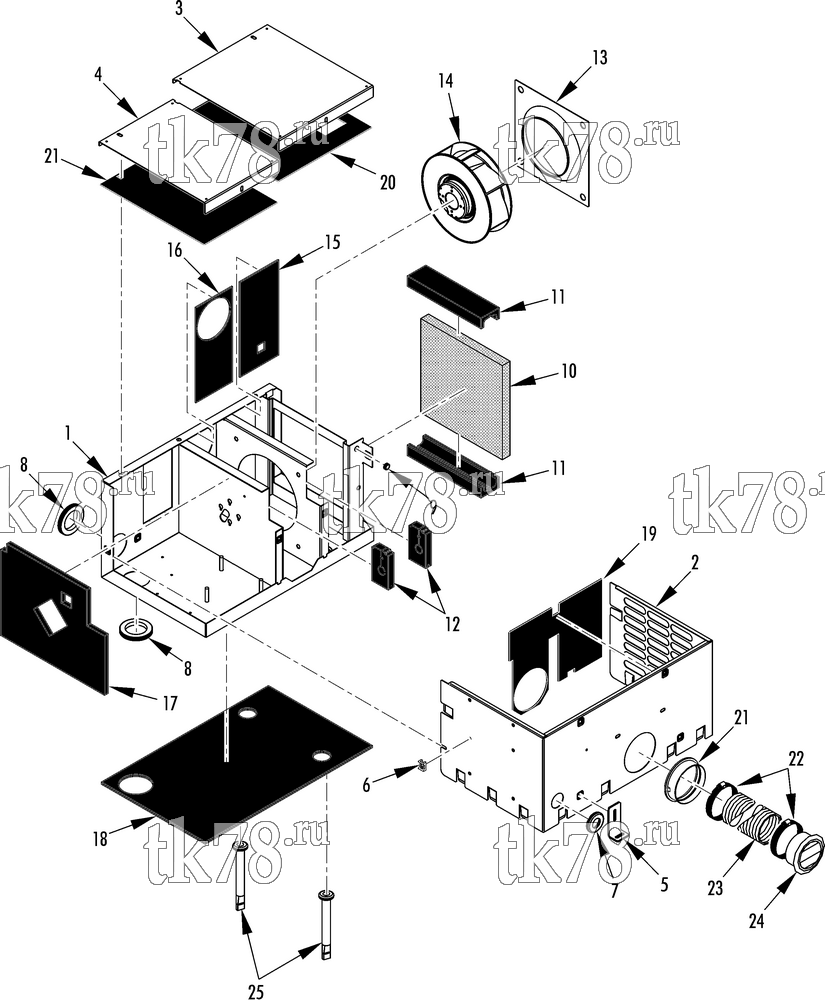

Установкa Thermo King TriPac e схема EVAPORATOR HOUSING – 242E3
Обновление от: 4/8/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8479 | FRAME - evaporator | 1 | |
| 203-412 | SEALER - polyurethane | A/R | ||
| 55-9698 | INSERT | 8 | ||
| 2 | 98-8480 | PANEL - side | 1 | |
| 55-7776 | STANDOFF - self clinch | 6 | ||
| 51-718 | SCREW - panel | 8 | ||
| 3 | 98-8481 | COVER - coil | 1 | |
| 51-718 | SCREW - cover | 3 | ||
| 4 | 98-8482 | COVER - compressor | 1 | |
| 51-718 | SCREW - cover | 3 | ||
| 5 | 92-8268 | BRACKET - evaporator frame | 4 | |
| 51-718 | SCREW - bracket to panel | 4 | ||
| 6 | 99-6093 | MOUNT - cable tie | 6 | |
| 55-3669 | RIVET | 6 | ||
| 55-7697 | FLATWASHER | 6 | ||
| 55-2332 | BANDWRAP (.75 dia) | A/R | ||
| 55-2330 | BANDWRAP (1.75 dia) | A/R | ||
| 7 | 33-3135 | GROMMET (35 mm) | 1 | |
| 8 | 33-2361 | GROMMET (2.0 id) | 2 | |
| 9 | 33-1055 | GROMMET (3/8 id) | 1 | |
| 10 | 92-8269 | FILTER - air | 1 | |
| 11 | 51-2001 | SUPPORT - coil (rubber) | 2 | |
| 12 | 51-2002 | ISOLATOR - tube (rubber) | 2 | |
| 13 | 78-1716 | ORIFICE - blower | 1 | |
| 55-9761 | SCREW | 5 | ||
| 55-3045 | LOCKWASHER | 5 | ||
| 14 | 78-1714 | BLOWER (see 242H5) | 1 | |
| 55-9693 | SCREW | 4 | ||
| 15 | 33-4618 | INSULATION - coil compartment | 1 | |
| 16 | 33-4619 | INSULATION - fan compartment | 1 | |
| 17 | 33-4620 | INSULATION - fan wall | 1 | |
| 18 | 33-4621 | INSULATION - bottom | 1 | |
| 19 | 33-4622 | INSULATION - front cover | 1 | |
| 21 | 33-4623 | INSULATION - compressor cover | 1 | |
| 20 | 33-4624 | INSULATION - coil cover | 1 | |
| 21 | 92-8270 | ADAPTER - hose | 2 | |
| 22 | 51-1219 | CLAMP (4 in) | 2 | |
| 23 | 92-5325 | HOSE - air duct (4 in x 25 ft long) | A/R | |
| 24 | 92-5861 | LOUVER - nozzle | 2 | |
| 51-1250 | SCREW | 8 | ||
| 25 | 61-5098 | TUBE - drain | 2 |
