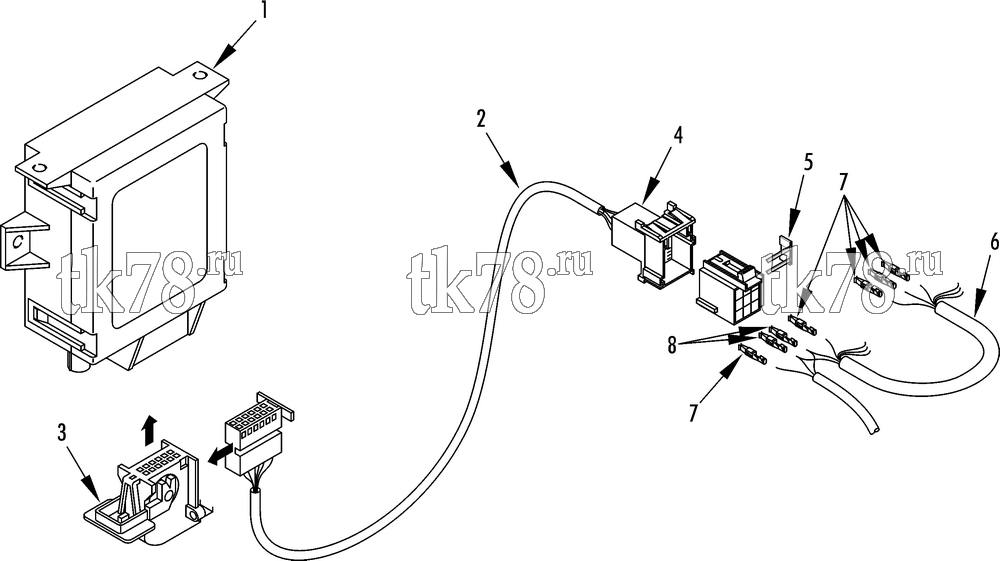

Установкa Thermo King TriPac e схема AIR PRESSURE SENSOR (High Altitude) – 231E6
Обновление от: 6/26/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 40-1027 | KIT - air pressure sensor (High Altitude) | 1 | ||
| 1 | 40-1027 | MODULE - sensor | 1 | |
| 2 | 41-8394 | HARNESS | 1 | |
| 3 | 41-8396 | CLAMP - harness (12-pin) | 1 | |
| 4 | 41-8397 | CLAMP - harness (9-pin) | 1 | |
| 5 | 41-8398 | CLIP - retainer | 1 | |
| 6 | 41-8395 | HARNESS - controller | 1 | |
| 7 | 41-8399 | TERMINAL (single wire) | 5 | |
| 8 | 84-1404 | TERMINAL (double wire) | 5 |
