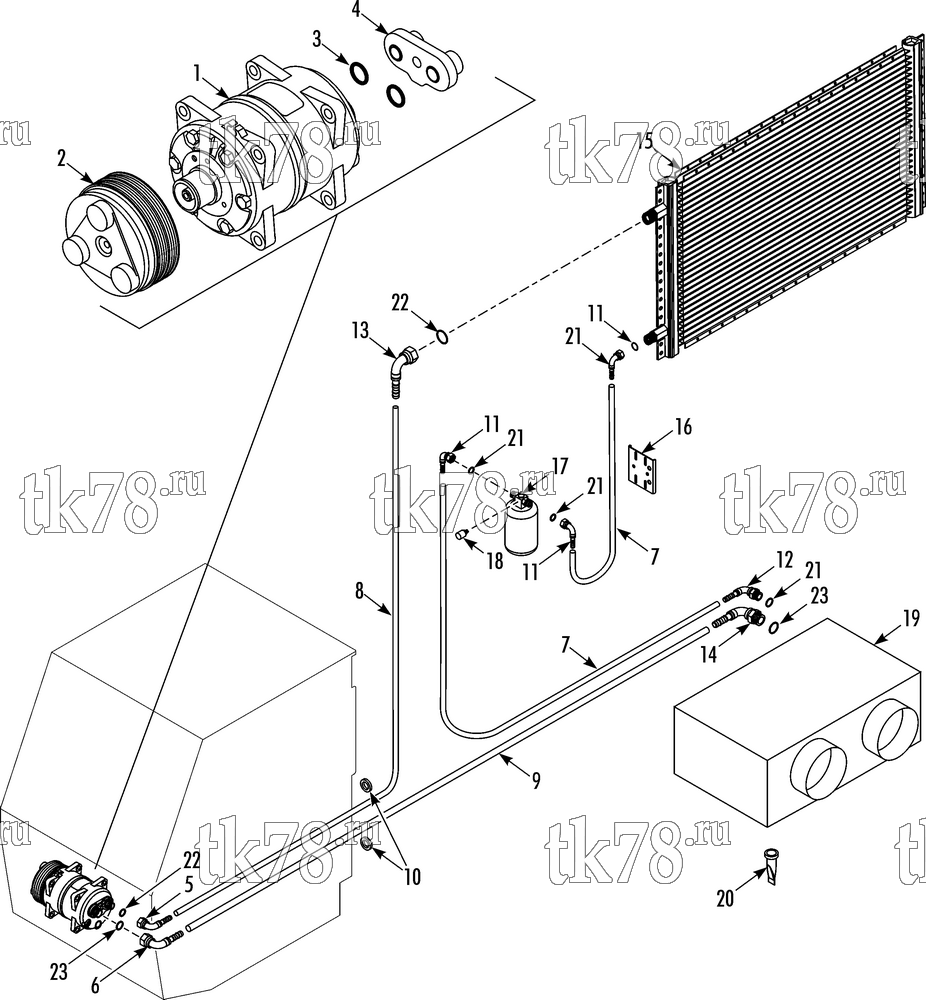

Установкa Thermo King TriPac Tier 2 Engine схема REFRIGERATION GROUP (10/06 & After) – 220C5
Обновление от: 8/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-1004 | COMPRESSOR - 15HD (QP15HD, 8V 12V, 5/11 & after) | 1 | |
| 2 | 107-311 | CLUTCH (12V, 4.62 in, poly groove, 8V) | 1 | |
|
10-107-261 | Муфта электромагнитная, 8PV/12V, TM13/15/16, QP13/15/16 | 7 740 ₽ |
|
| 203-502 | OIL - compressor (8 oz) | A/R | ||
| 3 | 33-2882 | O-RING | 2 | |
| 4 | 22-1053 | MANIFOLD - compressor | 1 | |
|
10-22-1053 | Коллектор компрессора TM-15/16/21 | 1 950 ₽ |
|
| 55-9484 | SCREW - manifold | 1 | ||
| 5 | 51-2395 | FITTING - 45 deg (w/ R134a charging port, #8) | 1 | |
| 6 | 51-2407 | FITTING - 45 deg (w/o restriction port, 8/07 & after, #10) | 1 | |
| 7 | 67-1708 | HOSE - refrigeration (#6) | A/R | |
| 8 | 67-1709 | HOSE - refrigeration (#8) | A/R | |
| 9 | 67-1710 | HOSE - refrigeration (#10) | A/R | |
| 10 | 33-429 | GROMMET - refrigeration hose | 2 | |
| 11 | 51-2393 | FITTING - 90 deg (tube-O, #6 hose) | 3 | |
| 12 | 51-2411 | FITTING - tube-O (male, 90 deg, #6) | 1 | |
| 13 | 51-2406 | FITTING - tube-O (90 deg, #8) | 1 | |
| 14 | 51-2415 | FITTING - tube-O (male, 90 deg, #10) | 1 | |
| 15 | 67-2494 | COIL - condenser (see 226E1) | 1 | |
| 16 | 92-5028 | BRACKET - dehydrator | 1 | |
| 17 | 61-3552 | DEHYDRATOR | 1 | |
| 20-61-3552 | Дегидратор | 22 430 ₽ |
|
|
| 51-1220 | CLAMP - dehydrator | 2 | ||
| 18 | 41-7509 | SWITCH - hpco | 1 | |
| 44-8491 | SWITCH - only | 1 | ||
| 19 | NSS | EVAPORATOR (see 222D3) | 1 | |
| 20 | 61-4271 | VALVE - drain | 2 | |
| 51-1799 | CLAMP - valve | 2 | ||
| 21 | 33-1461 | O-RING - tube-O (#6) | 4 | |
| 22 | 33-2350 | O-RING - tube-O (#8) | 2 | |
| 23 | 33-672 | O-RING - tube-O (#10) | 2 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
