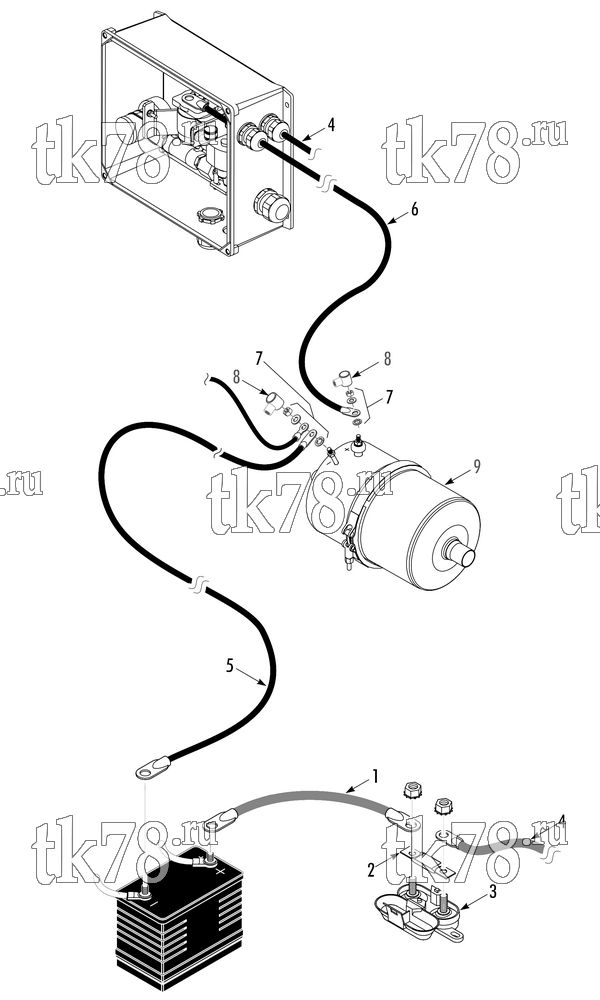

Установкa Thermo King TriPac Tier 2 Engine (after 10/08) схема DPF CANISTER & CABLES – 228E8
Обновление от: 6/20/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 10-404 | KIT - DPF (rear mount) | 1 | ||
| 1 | 41-8268 | CABLE - positive (12.0 inch) | 1 | |
| 2 | 41-8486 | FUSE (150 amp) | 1 | |
| 3 | 41-7008 | HOLDER - fuse | 1 | |
| 30-41-7008 | Гнездо предохранителя | 1 820 ₽ |
|
|
| 55-1587 | SCREW - holder | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 4 | 41-8269 | CABLE - positive (240.0 inch) | 1 | |
| 5 | 41-8271 | CABLE - negative (240.0 inch) | 1 | |
| 6 | 41-8270 | CABLE - positive (204.0 inch) | 1 | |
| 7 | 55-2958 | FLATWASHER | 1 | |
| 55-2959 | LOCKWASHER | 1 | ||
| 51-1885 | NUT | 4 | ||
| 51-1886 | LOCKWASHER | 2 | ||
| 51-1887 | FLATWASHER | 2 | ||
| 8 | 651-298 | BOOT - terminal | 2 | |
| 9 | 12-931 | CANISTER - DPF | 1 |
