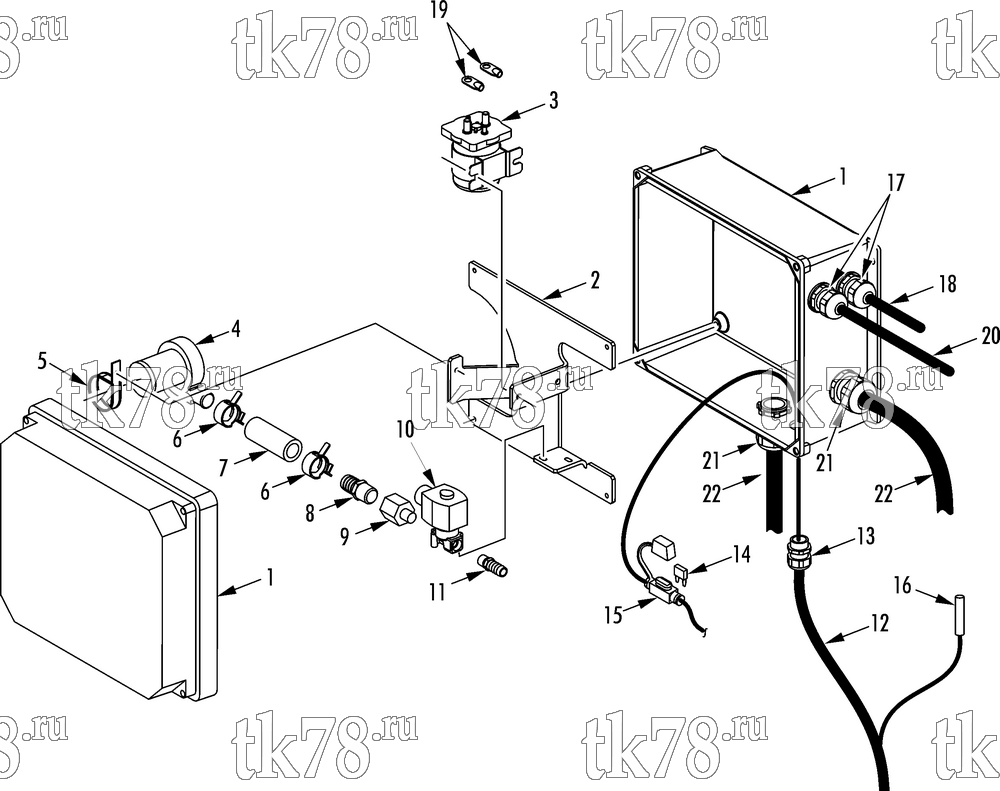

Установкa Thermo King TriPac Tier 2 Engine (after 10/08) схема DPF FORCED AIR REGEN BOX – 228E6
Обновление от: 11/29/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 10-404 | KIT - DPF (rear mount) | 1 | ||
| 1 | 92-7064 | BOX - forced air regen | 1 | |
| 2 | 92-7065 | PLATE - bower | 1 | |
| 55-3027 | SCREW - plate | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 3 | 41-8118 | CONTACTOR | 1 | |
| 55-2957 | SCREW - contactor | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-1801 | NUT | 2 | ||
| 4 | 41-8120 | BLOWER | 1 | |
| 5 | 55-2570 | CLAMP - blower | 1 | |
| 55-3000 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 7 | ||
| 55-2965 | NUT | 1 | ||
| 6 | 51-1774 | CLAMP - hose | 2 | |
| 7 | 92-7066 | HOSE | 1 | |
| 8 | 51-1772 | FITTING - barb | 1 | |
| 9 | 51-1771 | REDUCER | 1 | |
| 10 | 41-8121 | VALVE | 1 | |
| 55-2995 | SCREW - valve | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 11 | 51-1773 | FITTING - barb | 1 | |
| 12 | NSS | HARNESS - TriPac DPF (see DPF controller) | 1 | |
| 13 | 41-4817 | CONNECTOR - grip | 1 | |
| 14 | 41-4553 | FUSE (10 amp) | 1 | |
| 15 | 41-3074 | HOLDER - fuse | 1 | |
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 16 | 40-975 | SENSOR | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 17 | 41-4817 | CONNECTOR - grip | 2 | |
| 41-5359 | WASHER - sealing | 2 | ||
| 55-2635 | NUT | 2 | ||
| 18 | 41-8269 | CABLE - positive (240.0 inch) | 1 | |
| 19 | 41-8267 | TERMINAL - lug | 2 | |
| 20 | 41-8270 | CABLE - positive (204.0 inch) | 1 | |
| 21 | 41-4610 | CONNECTOR - grip | 2 | |
| 41-4189 | WASHER - sealing | 2 | ||
| 55-2636 | NUT | 2 | ||
| 22 | 92-7120 | HOSE ( 0.5 id x 40 ft) | 2 |
