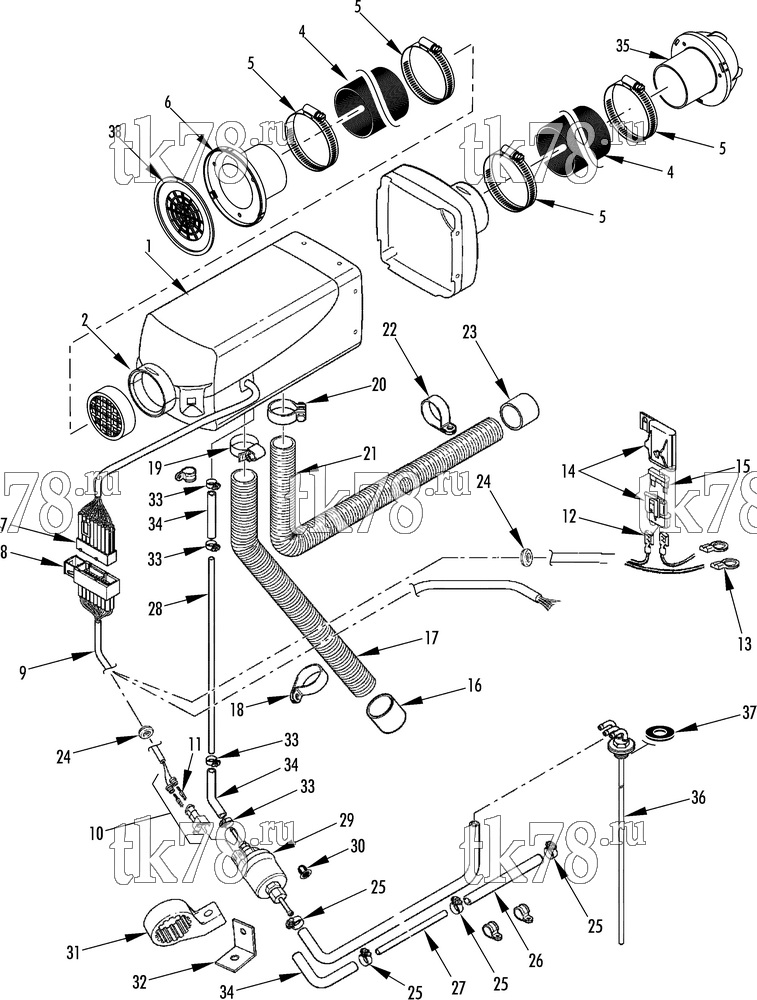

Установкa Thermo King TriPac Tier 2 Engine Pre-TK Version схема HEATER GROUP – 205H5
Обновление от: 8/14/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8391 | HEATER (see 205H6, D2 Standard) | 1 | |
| 2 | 92-5036 | SCREEN - inlet | 1 | |
| 3 | 92-5039 | HOOD - outlet | 1 | |
| 4 | 81-421 | HOSE - air (outlet) | 1 | |
| 5 | 85-252 | CLAMP - hose | 2 | |
| 6 | 92-5037 | NOZZLE - air | 1 | |
| 7 | 41-6826 | CONNECTOR - plug | 1 | |
| 8 | 41-6827 | CONNECTOR - housing | 1 | |
| 9 | 41-6823 | HARNESS - heater | 1 | |
| 10 | 41-6829 | CONNECTOR - fuel pump | 1 | |
| 11 | 84-1403 | TERMINAL | 2 | |
| 12 | 41-6830 | TERMINAL - fin | 2 | |
| 13 | 41-6831 | TERMINAL - ring | 2 | |
| 14 | 41-6828 | HOLDER - fuse | 1 | |
| 15 | 41-2978 | FUSE (20 amp) | 1 | |
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 16 | 92-5042 | SLEEVE - inlet | 1 | |
| 17 | 92-5040 | HOSE - air (inlet) | 1 | |
| 18 | 51-1239 | CLAMP - intake hose (25 mm) | A/R | |
| 19 | 51-1237 | CLAMP - intake hose (worm drive) | 1 | |
| 20 | 51-1238 | CLAMP - exhaust hose (hex drive) | 1 | |
| 21 | 13-1118 | HOSE - exhaust (24 mm) | 1 | |
| 22 | 51-1240 | CLAMP - intake hose (28 mm) | A/R | |
| 23 | 89-418 | SLEEVE - exhaust | 1 | |
| 24 | 13-483 | GROMMET | 2 | |
| 25 | 51-1235 | CLAMP - fuel | A/R | |
| 26 | 81-568 | HOSE - fuel | 1 | |
| 27 | 13-486 | TUBE - fuel | 1 | |
| 28 | 13-482 | HOSE - fuel | 1 | |
| 29 | 41-6824 | PUMP - fuel | 1 | |
| 20-41-6824 | Топливный насос, TRI-Pac | 39 650 ₽ |
|
|
| 30 | 13-510 | SCREEN - fuel | 1 | |
| 31 | 51-1234 | CLAMP - fuel | 1 | |
| 32 | 92-5044 | BRACKET - clamp | 1 | |
| 33 | 51-1236 | CLAMP - fuel | 3 | |
| 34 | 13-481 | HOSE - fuel | A/R | |
| 35 | 92-5231 | DEFLECTOR - warm air (adjustable) | 1 | |
| 36 | 13-489 | TUBE - fuel pick-up | 1 | |
| 37 | 33-4402 | GASKET - fuel pickup (rubber) | 1 | |
| 38 | 81-544 | SCREEN - inlet (60 mm) | 1 |
