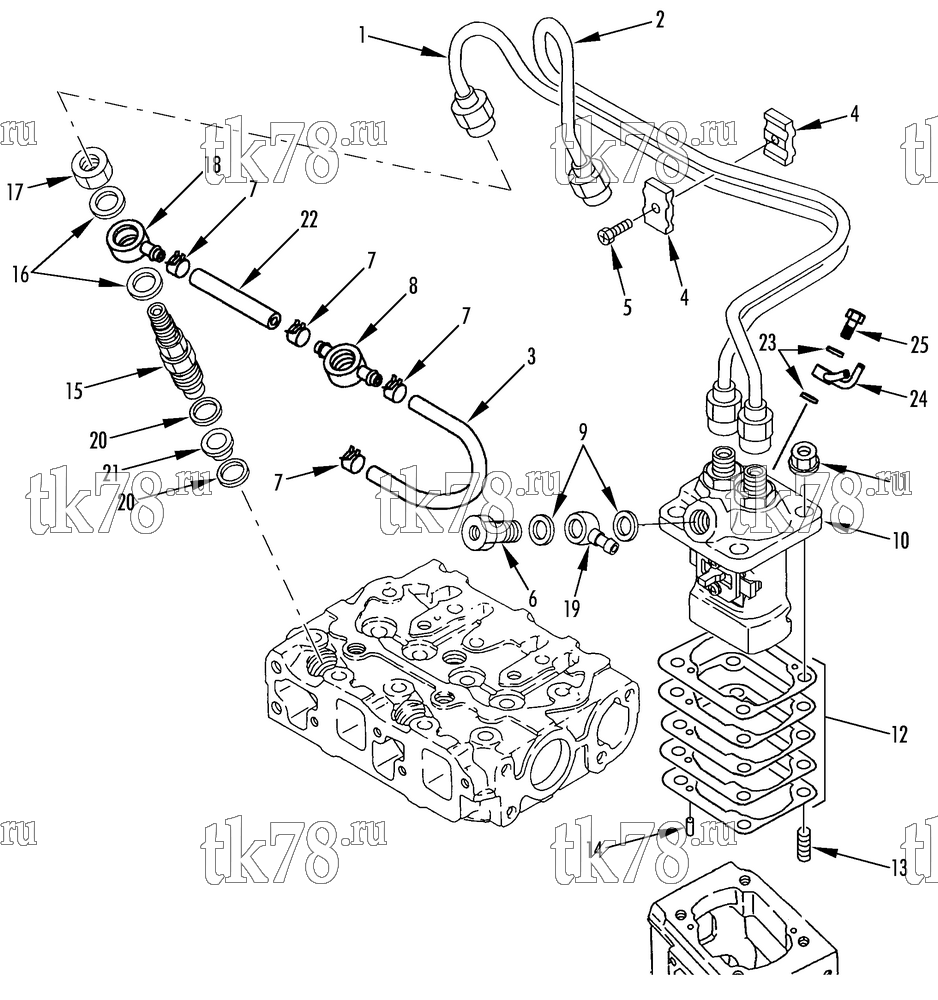

Установкa Thermo King TriPac Tier 1 Engine схема FUEL INJECTION GROUP (TNE68C ETR) – 208E4
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-8825 | PIPE - injection (# 1) | 1 | |
| 2 | 11-8826 | PIPE - injection (# 2) | 1 | |
| 3 | 13-545 | PIPE - fuel return | 1 | |
| 4 | 11-8823 | CLAMP - fuel pipes | 1 | |
| 5 | 55-8626 | SCREW - clamp | 1 | |
| 6 | 13-546 | BOLT - air bleed | 1 | |
| 7 | 10-373 | CLAMP | 1 | |
| 8 | 11-6137 | JOINT | 1 | |
| 9 | 55-8620 | GASKET | 2 | |
| 10 | 11-6265 | PUMP - fuel injection (see 132F11) | 1 | |
| 11 | 55-5791 | NUT - pump | 4 | |
| 12 | 11-6250 | SHIM PACK | 1 | |
| 13 | 55-5784 | STUD - injection pump | 4 | |
| 14 | 55-5834 | PIN - roll | 2 | |
| 15 | 11-8769 | NOZZLE - fuel injection (see 132F14) | 2 | |
|
10-11-8769 | Форсунка, Yanmar 249, 374, 395 | 30 530 ₽ |
|
| 16 | 33-2970 | GASKET - fuel return pipe | 2 | |
| 17 | 11-6115 | NUT - fuel return pipe | 2 | |
| 18 | 11-6136 | PIPE - fuel return | 1 | |
| 19 | 11-8979 | JOINT - fuel | 1 | |
| 20 | 33-1733 | GASKET - nozzle | 4 | |
| 21 | 11-6045 | PROTECTOR - nozzle | 2 | |
|
10-11-6045 | Protector, Nozzle, Yanmar 366, 388, 395 | 1 430 ₽ |
|
| 22 | 11-6623 | PIPE - fuel | 1 | |
| 23 | 55-4622 | WASHER - seal | 2 | |
| 24 | 51-763 | JOINT - fuel return | 1 | |
| 25 | 51-764 | BOLT - joint | 1 | |
| 30-277 | GASKET SET - engine overhaul (see 208E6) | 1 | ||
| 20-30-277 | Набор прокладок, TRI-Pac Tier 1 | 52 260 ₽ |
|
