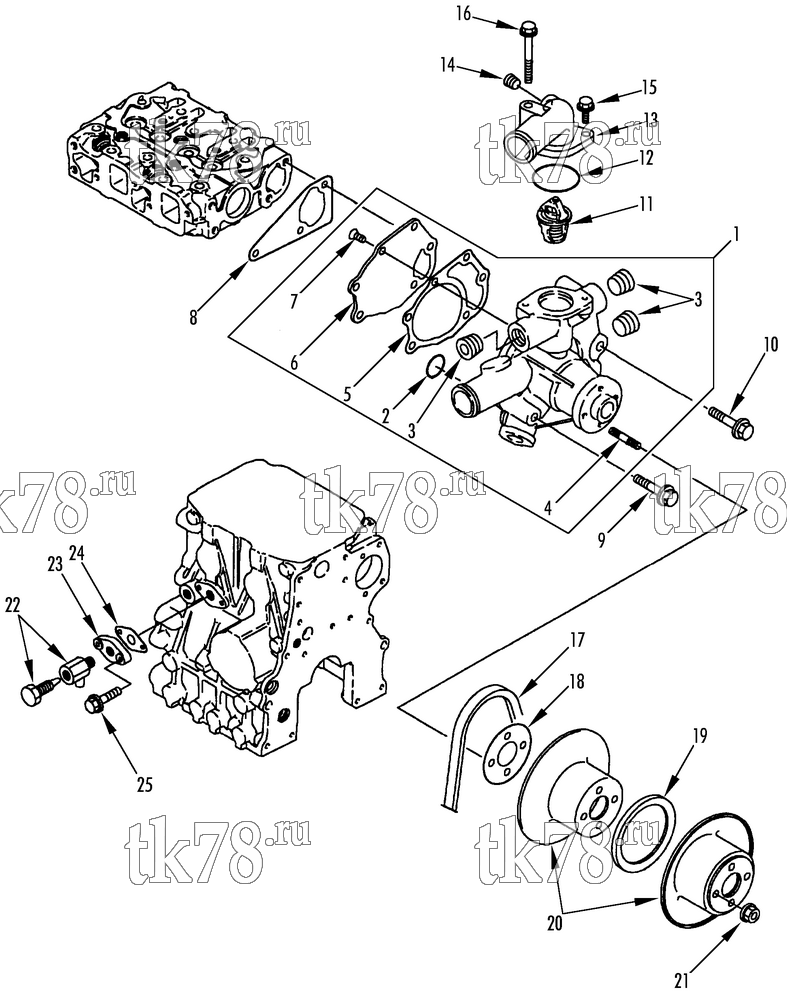

Установкa Thermo King TriPac Tier 1 Engine схема WATER PUMP GROUP (TNE68C ETR) – 208E2
Обновление от: 1/4/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 813-506 | PUMP - water | 1 | |
| 2 | 33-4207 | O-RING | 1 | |
| 3 | 51-607 | PLUG | 3 | |
| 4 | 55-5138 | STUD | 4 | |
| 5 | 33-4206 | GASKET - water pump | 1 | |
| 6 | 13-549 | PLATE | 1 | |
| 7 | 51-623 | SCREW - plate | 3 | |
| 8 | 33-1742 | GASKET - water pump | 1 | |
|
10-33-1742 | Прокладка водяной помпы, Yanmar 244 / 249 / 366 / 374 | 1 130 ₽ |
|
| 9 | 55-5809 | SCREW - water pump (M8 x 45) | 2 | |
| 10 | 55-5772 | SCREW - water pump (M8 x 40) | 1 | |
| 11 | 13-551 | THERMOSTAT (160 F / 71 C) | 1 | |
| 20-13-551 | Термостат | 5 910 ₽ |
|
|
| 12 | 33-1744 | O-RING - thermostat | 1 | |
|
10-33-1744 | Кольцо термостата, Yanmar 249 / 366 / 374, KD/MD-II / MD/TS-200-300 | 820 ₽ |
|
| 13 | 11-8758 | COVER - thermostat | 1 | |
| 14 | 55-5763 | PLUG | 1 | |
| 15 | 55-5826 | SCREW - cover (M6 x 16) | 1 | |
| 16 | 55-8617 | SCREW - cover (M6 x 55) | 1 | |
| 17 | 78-1012 | BELT - water pump | 1 | |
| 10-78-1012 | Ремень водяной помпы, MD/KD-II / TS-200/300 | 3 720 ₽ |
|
|
|
PP-78-1012 | Ремень водяной помпы, MD/KD-II / TS-200/300 | 1 320 ₽ |
|
| 18 | 77-1427 | SHIM (1 mm) | A/R | |
| 77-2752 | SHIM (0.5 mm) | A/R | ||
| 19 | 77-1428 | SPACER | 1 | |
| 20 | 77-1426 | SHEAVE - pulley | 1 | |
|
10-77-1426 | Шкив водяной помпы, Yanmar 374 / 388 / 395 / 482 / 486, SL/SLe | 6 670 ₽ |
|
| 21 | 55-5792 | NUT | 4 | |
| 22 | 11-8677 | DRAIN COCK | 1 | |
| 23 | 13-552 | FLANGE - drain | 1 | |
| 24 | 33-1801 | GASKET - flange | 1 | |
| 25 | 55-5765 | SCREW - flange | 2 |
