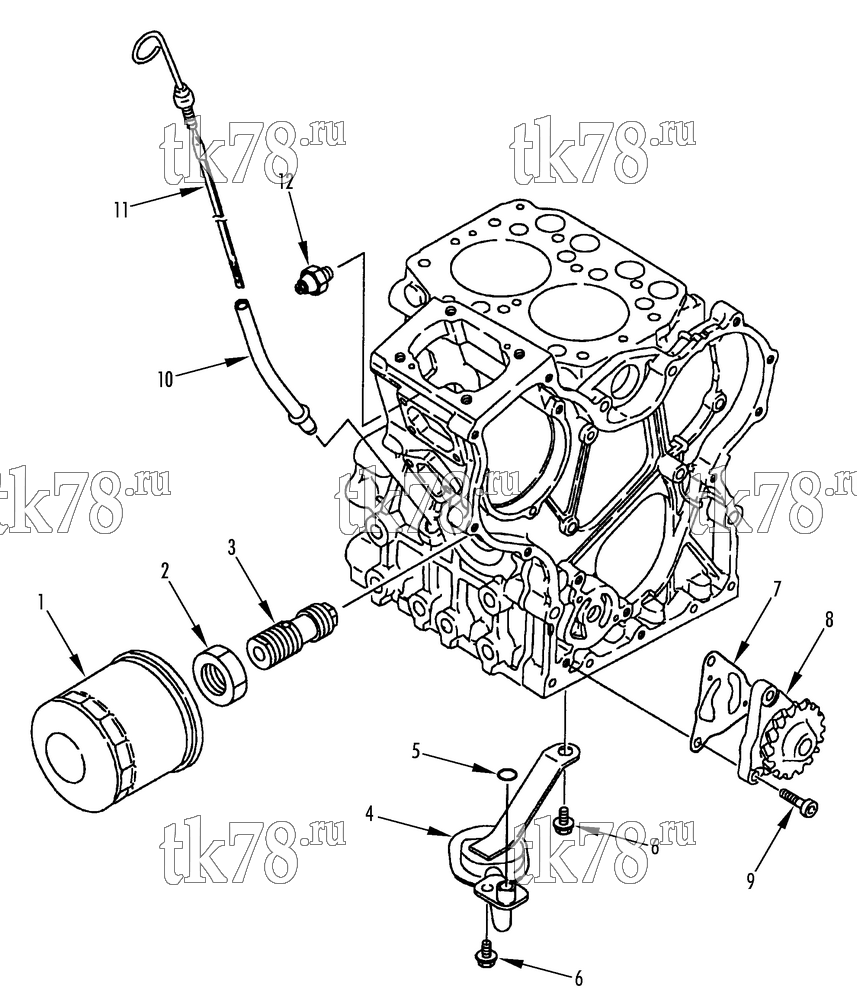

Установкa Thermo King TriPac Tier 1 Engine схема OIL FILTER & PUMP (TNE68C ETR) – 208E1
Обновление от: 12/18/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-6182 | FILTER - oil | 1 | |
|
11-6182 OEM | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 2 820 ₽ |
|
|
US-11-6182 | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 1 200 ₽ |
|
|
10-11-6182 | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 630 ₽ |
|
| 2 | 55-5823 | NUT - oil pressure valve | 1 | |
| 3 | 11-6087 | VALVE - oil pressure | 1 | |
| 4 | 13-528 | PIPE - oil intake | 1 | |
| 5 | 33-4202 | O-RING - pipe | 1 | |
| 6 | 55-5798 | SCREW - oil pipe | 3 | |
| 7 | 33-1740 | GASKET - oil pump | 1 | |
| 10-33-1740 | Прокладка масляного насоса, Yanmar 366, 388 | 590 ₽ |
|
|
| 8 | 13-525 | PUMP - oil | 1 | |
| 9 | 55-6187 | SCREW - pump | 3 | |
| 10 | 13-527 | GUIDE - dipstick | 1 | |
| 11 | 13-526 | DIPSTICK | 1 | |
| 12 | 41-6801 | SWITCH - oil pressure | 1 | |
| 20-41-6801 | Выключатель давления масла | 3 400 ₽ |
|
