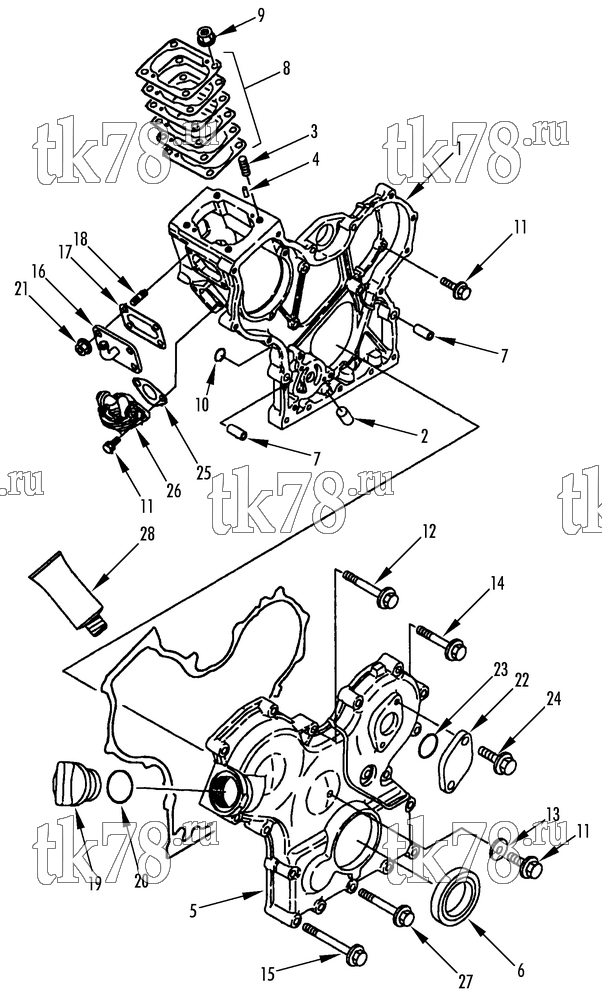

Установкa Thermo King TriPac Tier 1 Engine схема GEAR HOUSING GROUP (TNE68C ETR) – 208D6
Обновление от: 9/1/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-8810 | HOUSING - gear | 1 | |
| 2 | 55-5783 | PLUG | 1 | |
| 3 | 55-5784 | STUD - fuel injection | 4 | |
| 4 | 55-5834 | PIN - governor | 2 | |
| 5 | 11-8647 | COVER - gear case (before S/N EA37759) | 1 | |
| 13-700 | COVER - gear case (S/N EA37759 & after) | 1 | ||
| 6 | 33-1727 | SEAL - oil | 1 | |
| 33-1727 OEM | Сальник коленвала передний | 3 020 ₽ |
|
|
| PP-33-1727 | Сальник коленвала передний | 990 ₽ |
|
|
| 7 | 55-5785 | PIN - alignment | 4 | |
| 8 | 11-6250 | SHIM PACK | 1 | |
| 9 | 55-5791 | NUT (w/ washer) | 4 | |
| 10 | 33-3512 | O-RING | 2 | |
| 11 | 55-5786 | SCREW - cover & fuel pump | 8 | |
| 12 | 55-5789 | SCREW - cover | 4 | |
| 13 | 55-8613 | WASHER - sealing | 1 | |
| 14 | 55-5787 | SCREW - cover | 4 | |
| 15 | 55-5790 | SCREW - cover | 6 | |
| 16 | 11-9564 | COVER | 1 | |
| 17 | 33-1754 | GASKET | 1 | |
| 18 | 55-5859 | STUD - cover | 4 | |
| 19 | 11-5091 | CAP - lube (oil fill) | 1 | |
| 11-5091 OEM | Крышка маслозаливной горловины, Yanmar 353 / 366 / 374 / 388 / 395 / 482 / 486 / 486V | 3 500 ₽ |
|
|
| 20 | 33-1954 | O-RING | 1 | |
| 21 | 55-5792 | NUT | 4 | |
| 22 | 13-933 | COVER | 1 | |
| 23 | 33-2814 | O-RING | 1 | |
| 24 | 55-5786 | SCREW - cover | 2 | |
| 25 | 33-1542 | GASKET - cover | 1 | |
| 26 | 13-516 | PUMP - fuel | 1 | |
| 20-13-516 | Топливный насос, TRI-Pac | 24 300 ₽ |
|
|
| 27 | 55-5788 | SCREW - cover | 3 | |
| 28 | 203-348 | GASKET - adhesive (RTV silicone) | A/R | |
| 30-277 | GASKET SET - engine overhaul (see 208E6) | 1 | ||
| 20-30-277 | Набор прокладок, TRI-Pac Tier 1 | 52 260 ₽ |
|
