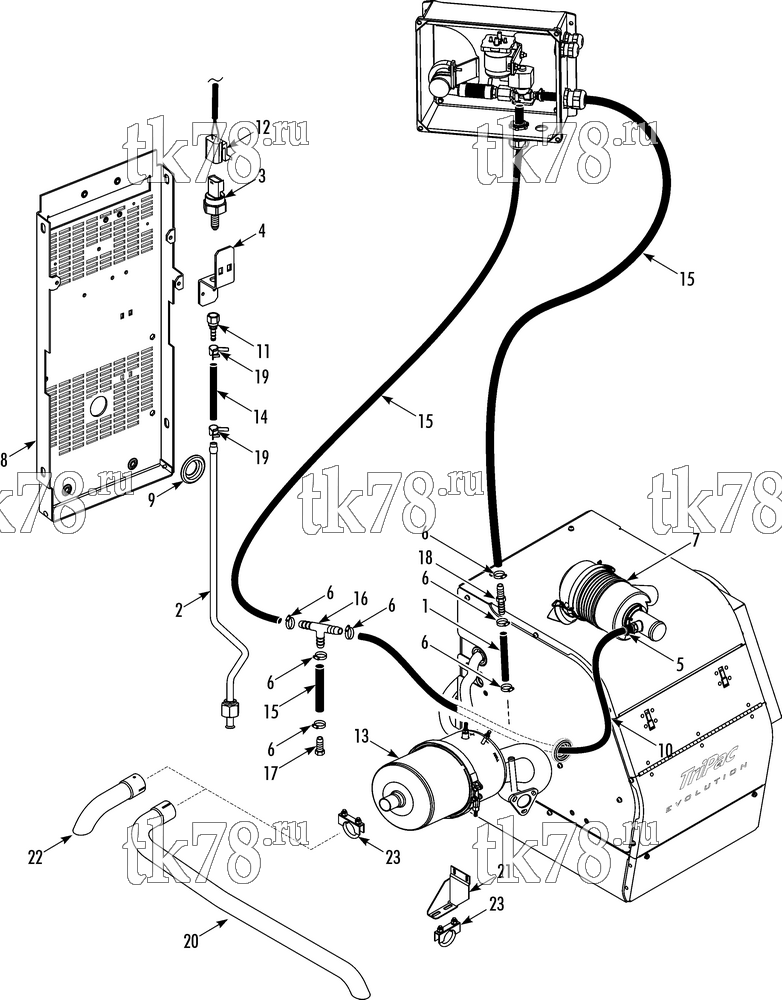

Установкa Thermo King TriPac EVOLUTION схема DPF INTAKE & EXHAUST HARNESS CONNECTION – 269E6
Обновление от: 7/1/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-7068 | HOSE (silicone, 0.5 id) | A/R | |
| 2 | 13-971 | TUBE - exhaust bleed | 1 | |
| 3 | 41-8116 | SENSOR - pressure | 1 | |
| 4 | 92-7079 | BRACKET - sensor | 1 | |
| 5 | 51-1778 | FITTING - barb | 1 | |
| 6 | 51-1779 | CLAMP - hose | 3 | |
| 7 | 13-820 | AIR CLEANER (see grid 269D3) | 1 | |
| 8 | 93-1034 | PANEL - rear (see 269E2) | 1 | |
| 9 | 33-3135 | GROMMET | 1 | |
| 10 | 92-7080 | HOSE - air tube (0.5 id x 6 ft.) | 1 | |
| 11 | 51-1777 | FITTING | 1 | |
| 12 | 41-8274 | HARNESS - sensor | 1 | |
| 41-9818 | CONNECTOR - 3-pin | 1 | ||
| 41-9819 | TERMINAL - female | 3 | ||
| 13 | NSS | CANISTER - DPF (see 228E8) | 1 | |
| 14 | 92-7121 | HOSE (silicone, 0.25 id) | 1 | |
| 15 | 92-7120 | HOSE (0.5 id x 40 ft) | 1 | |
| 16 | 51-1789 | FITTING - tee | 1 | |
| 17 | 51-1790 | PLUG | 1 | |
| 18 | 51-1791 | FITTING - barb | 1 | |
| 19 | 51-1792 | CLAMP - hose | 2 | |
| 20 | 10-467 | KIT - exhaust pipe (409 ss) | 1 | |
| 10-465 | KIT - exhaust pipe (304 ss) | 1 | ||
| 21 | NSS | BRACKET - pipe | 1 | |
| 22 | 10-464 | KIT - tailpipe (409 ss) | 1 | |
| 10-465 | KIT - tailpipe (304 ss) | 1 | ||
| 23 | 99-496 | CLAMP - exhaust (1-5/8 id) | A/R |
