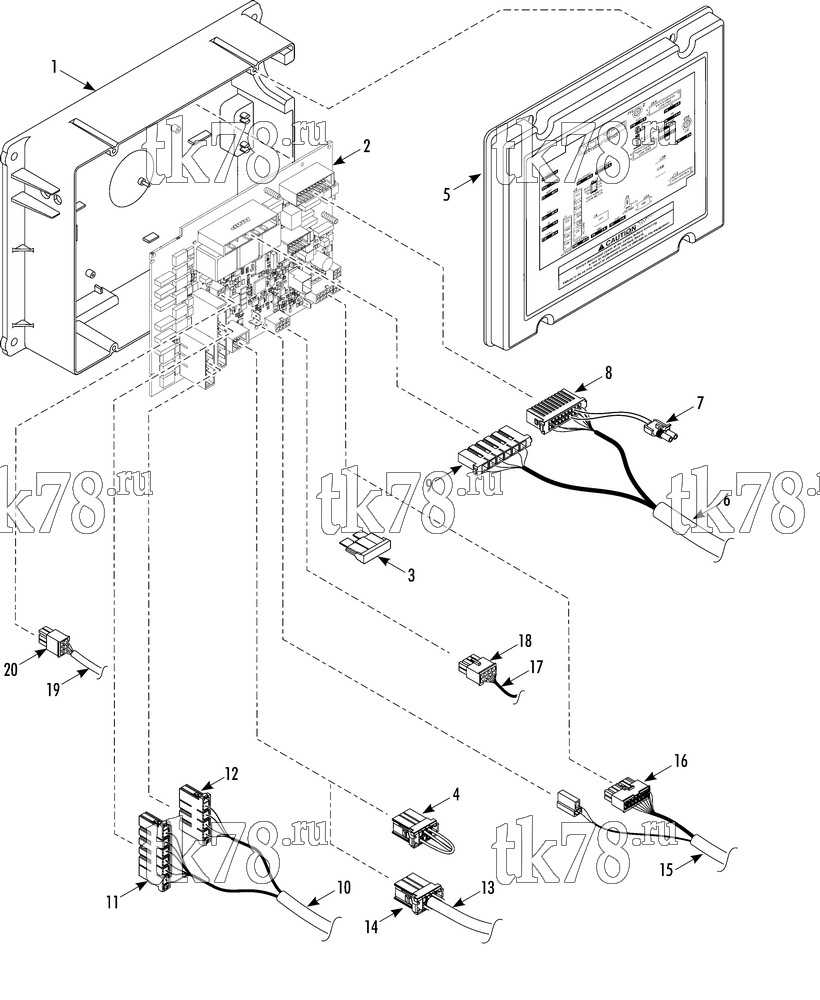

Установкa Thermo King TriPac EVOLUTION схема CONTROL BOX – 269E1
Обновление от: 6/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-9456 | BOX - control | 1 | |
| 2 | 45-2537 | BOARD - pc | 1 | |
| 51-1868 | SCREW - board | 4 | ||
| 3 | 41-2543 | FUSE (2 amp) | A/R | |
| 41-1292 | FUSE (5 amp) | A/R | ||
|
10-41-1292 | Предохранитель 5 ампер 10 шт | 1 860 ₽ |
|
| 44-9359 | FUSE (7.5 amp) | A/R | ||
| 44-9344 | FUSE (15 amp) | A/R | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 41-2978 | FUSE (20 amp) | A/R | ||
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 41-1771 | FUSE (30 amp) | A/R | ||
| 30-41-1771 | Предохранитель 32V 30А | 460 ₽ |
|
|
| 41-226 | FUSE (40 amp) | A/R | ||
|
10-41-226 | Предохранитель 40 ампер 10 шт | 1 860 ₽ |
|
| 4 | 42-328 | JUMPER (units w/o DPF option) | 1 | |
| 42-329 | RECEPTACLE (6-pin) | 1 | ||
| 42-330 | TERMINAL | 4 | ||
| 5 | 93-956 | COVER - box | 1 | |
| 51-1884 | SCREW - cover | 4 | ||
| 6 | 42-1114 | HARNESS - main | 1 | |
| 7 | 44-5838 | CONNECTOR - tower (2-pin, standby switch) | 1 | |
| 8 | 41-8385 | RECEPTACLE (main low power, 20-pin) | 1 | |
| 41-8266 | CONTACT (16-14 awg) | 12 | ||
| 9 | 41-8383 | RECEPTACLE (main high power, 6-pin) | 1 | |
| 41-8369 | CONTACT (16-14 awg) | 2 | ||
| 41-8370 | CONTACT (12-10 awg) | 3 | ||
| 10 | 42-1117 | HARNESS - A/C | 1 | |
| 11 | NSS | RECEPTACLE - condenser (6-pin) | 1 | |
| 12 | 42-331 | RECEPTACLE - evaporator fan (4-pin) | 1 | |
| 41-8369 | CONTACT (16-14 awg) | 4 | ||
| 13 | 42-333 | HARNESS - TriPac DPF (see 258A1) | 1 | |
| 14 | 41-8264 | RECEPTACLE - DPF (8-pin) | 1 | |
| 41-5718 | TERMINAL (22-18 ga) | 8 | ||
| 15 | 41-9378 | HARNESS - heater | 1 | |
| 16 | 42-696 | CONNECTOR (14-pin) | 1 | |
| 41-5178 | SOCKET (gold, 22-18 ga) | 14 | ||
| 17 | 41-9382 | HARNESS - HMI | 1 | |
| 18 | 41-4734 | CONNECTOR (8-pin) | 1 | |
| 41-5718 | SOCKET (22-18 ga) | 8 | ||
| 19 | NSS | HARNESS - hourmeter (optional, see 269E4 & 269E5) | 1 | |
| 20 | 41-6258 | PLUG (6-pin) | 1 | |
| 41-4750 | SOCKET (20-16 awg) | 4 |
