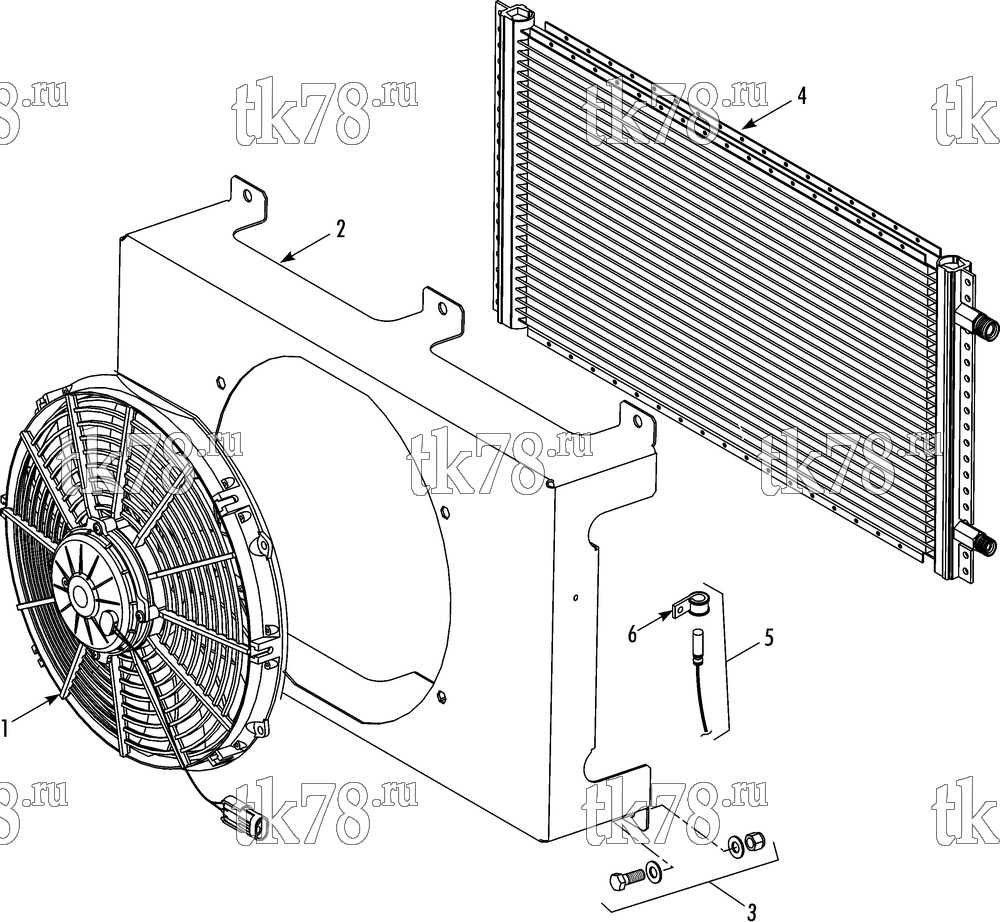

Установкa Thermo King TriPac EVOLUTION схема CONDENSER GROUP – 269D8
Обновление от: 6/27/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1560 | FAN - condenser | 1 | |
| 55-2957 | SCREW - fan | 4 | ||
| 55-2993 | LOCKWASHER | 4 | ||
| 2 | 92-6807 | FRAME - condenser (black) | 1 | |
| 92-6809 | FRAME - condenser (ss) | 1 | ||
| 55-8711 | INSERT (1/4-20) | 6 | ||
| 55-8752 | INSERT (10-32) | 4 | ||
| 55-9698 | INSERT (6 mm) | 1 | ||
| 3 | 55-3048 | SCREW | 6 | |
| 55-7144 | WASHER - special | 6 | ||
| 55-2641 | FLATWASHER | 6 | ||
| 55-4955 | NUT - lock | 6 | ||
| 4 | 67-2494 | COIL - condenser | 1 | |
| 55-3843 | SCREW - coil | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 5 | 40-1221 | KIT - sensor, temperature (120 amp alternator option) | 1 | |
| 6 | 55-2239 | CLAMP - sensor (.375 dia) | 1 | |
| 51-2202 | SCREW - clamp | 1 |
