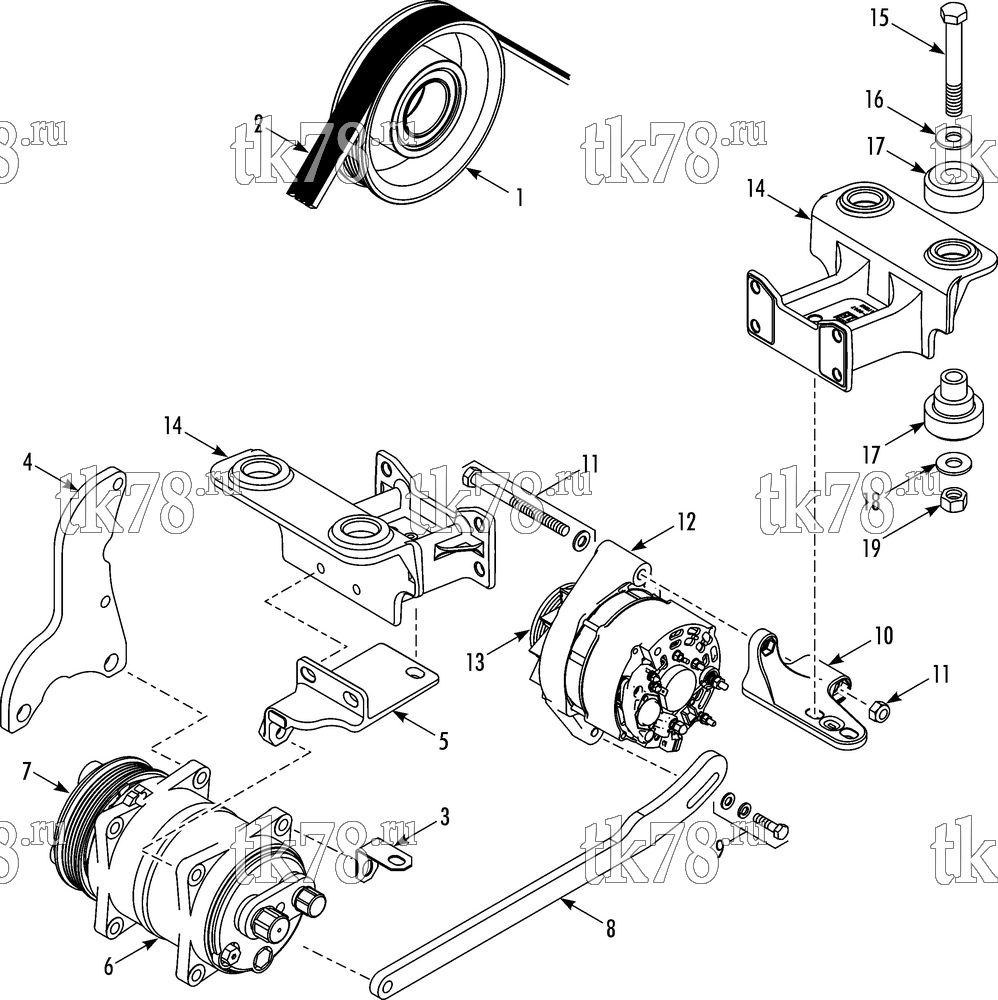

Установкa Thermo King TriPac EVOLUTION схема BELT & PULLEY GROUP – 269D4
Обновление от: 6/19/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-3105 | PULLEY - flywheel | 1 | |
| 51-2516 | SCREW - pulley | 6 | ||
| 203-400 | SEALER - thread | A/R | ||
| 2 | 78-1634 | BELT - compressor & alternator (6K poly groove) | 1 | |
| 3 | 92-8667 | STRAP - ground | 1 | |
| 4 | 93-1057 | BRACKET - compressor (clutch end) | 1 | |
| 55-6998 | SCREW - bracket | 2 | ||
| 55-7347 | LOCKWASHER | 2 | ||
| 55-8536 | FLATWASHER | 2 | ||
| 55-9845 | SCREW - bracket to compressor | 1 | ||
| 55-7344 | NUT | 1 | ||
| 5 | 92-8469 | BRACKET - compressor (rear) | 1 | |
| 55-7839 | SCREW - bracket | 3 | ||
| 55-7347 | LOCKWASHER | 3 | ||
| 55-8536 | FLATWASHER | 3 | ||
| 55-9845 | SCREW - bracket to compressor | 1 | ||
| 6 | 102-1059 | COMPRESSOR - 15HD | 1 | |
| 7 | 107-419 | CLUTCH (12V, poly groove, 6V) | 1 | |
| 203-502 | OIL - compressor (8 oz) | A/R | ||
| 51-1478 | SCREW - compressor (25mm) | 2 | ||
| 55-7839 | SCREW - compressor (35mm) | 2 | ||
| 55-8536 | FLATWASHER | 4 | ||
| 55-7344 | NUT | 4 | ||
| 8 | 92-9046 | TENSIONER - alternator adjust | 1 | |
| 51-1478 | SCREW - tensioner to compressor (M10) | 1 | ||
| 55-8536 | FLATWASHER | 2 | ||
| 55-7344 | NUT | 1 | ||
| 9 | 55-6987 | SCREW - adjustment (M8) | 1 | |
| 55-7342 | LOCKWASHER | 1 | ||
| 55-7085 | FLATWASHER | 1 | ||
| 10 | 92-9045 | MOUNT - alternator | 1 | |
| 55-7839 | SCREW - mount (M10) | 2 | ||
| 55-7347 | LOCKWASHER | 2 | ||
| 55-8536 | FLATWASHER | 2 | ||
| 55-6987 | SCREW - mount (M8) | 1 | ||
| 55-7085 | FLATWASHER | 1 | ||
| 55-7339 | NUT | 1 | ||
| 11 | 51-2060 | SCREW - alternator (M10x110) | 1 | |
| 55-8536 | FLATWASHER | 1 | ||
| 55-7344 | NUT | 1 | ||
| 12 | 41-9856 | ALTERNATOR (65 amp, extended life, ccw) | 1 | |
| 42-367 | ALTERNATOR (65 amp, standard life, ccw) | 1 | ||
| 42-253 | REGULATOR & BRUSH | 1 | ||
| 41-9925 | ALTERNATOR (120 amp, extended life, ccw, optional) | 1 | ||
| 42-254 | REGULATOR & BRUSH | 1 | ||
| 13 | 77-3108 | PULLEY - alternator (2.25 dia. 6K) | 1 | |
| 14 | 92-8892 | MOUNT - engine | 2 | |
| 55-6998 | SCREW - mount | 8 | ||
| 55-7347 | LOCKWASHER | 8 | ||
| 55-8536 | FLATWASHER | 8 | ||
| 15 | 55-5075 | SCREW - engine mount | 4 | |
| 16 | 55-5871 | WASHER - special | 4 | |
| 17 | 92-8893 | MOUNT - engine | 4 | |
| 20-92-8893 | Опора | 4 630 ₽ |
|
|
|
10-91-2338 | Подушка двигателя, CD/JD/KD/MD-II | 3 020 ₽ |
|
| 18 | 55-2038 | FLATWASHER | 4 | |
| 19 | 55-3686 | NUT | 4 |
