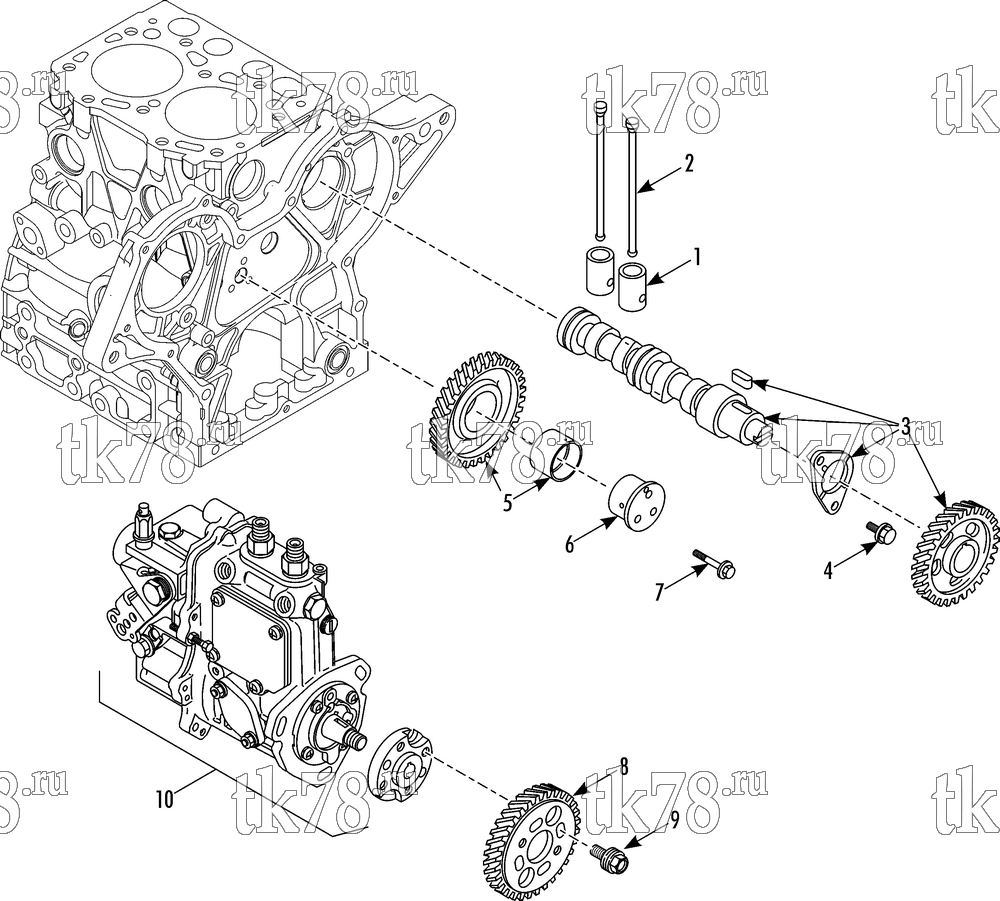

Установкa Thermo King TriPac EVOLUTION схема CAMSHAFT, DRIVING GEAR – 268H5
Обновление от: 6/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-6590 | TAPPET | 4 | |
| 2 | 13-564 | ROD - push | 4 | |
| 3 | 13-849 | CAMSHAFT - gear & plate | 1 | |
| 4 | 55-5798 | SCREW - plate | 2 | |
| 5 | 13-850 | GEAR ASSEMBLY - idle | 1 | |
| 6 | 11-9666 | SHAFT - idle gear | 1 | |
| 7 | 55-5770 | SCREW - idle shaft | 3 | |
| 8 | 11-9668 | GEAR - pump | 1 | |
| 9 | 55-9222 | SCREW - gear | 4 | |
| 10 | 12-1018 | PUMP - fuel injection (see 268H8) | 1 |
