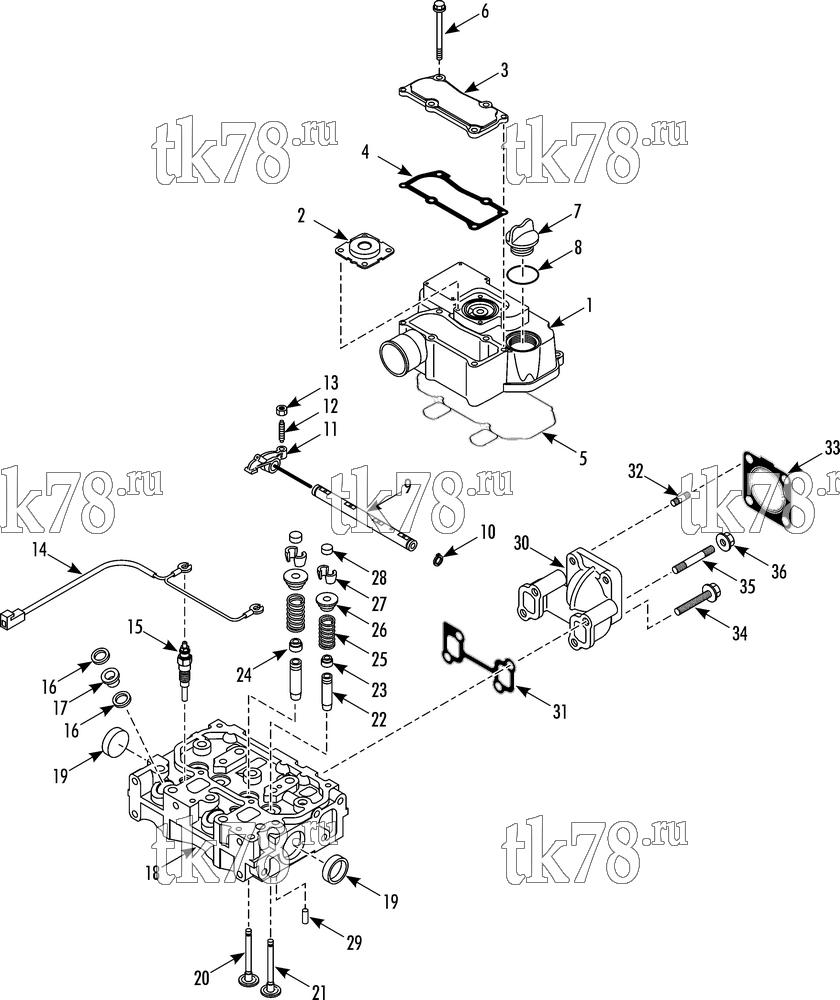

Установкa Thermo King TriPac EVOLUTION схема CYLINDER HEAD AND COVER (2TNV70F TKA) – 268H2
Обновление от: 6/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-623 | COVER - cylinder head | 1 | |
| 2 | 13-339 | VALVE - diaphragm | 1 | |
| 33-4091 | O-RING - baffle | 1 | ||
| 3 | 13-624 | COVER - intake | 1 | |
| 4 | 13-625 | GASKET - plate baffle | 1 | |
| 5 | 33-4222 | GASKET - cover | 1 | |
| 6 | 51-600 | SCREW - valve cover | 4 | |
| 7 | 11-5091 | COVER - filler | 1 | |
| 11-5091 OEM | Крышка маслозаливной горловины, Yanmar 353 / 366 / 374 / 388 / 395 / 482 / 486 / 486V | 3 500 ₽ |
|
|
| 8 | 33-1954 | O-RING - oil filler | 1 | |
| 9 | 13-622 | SHAFT - rocker | 1 | |
| 10 | 11-6579 | CIRCLIP | 2 | |
| 11 | 11-9657 | ARM - rocker | 4 | |
| 12 | 55-8859 | SCREW - valve | 1 | |
| 13 | 55-8860 | NUT - adjust | 1 | |
| 14 | 41-7637 | CONNECTOR - glow plug | 1 | |
| 15 | 42-916 | GLOW PLUG | 2 | |
|
10-41-6582 | Свеча накаливания, Yanmar 249 / 366 / 374 / 388 / 395 | 2 470 ₽ |
|
|
10-42-916 | Свеча накаливания, Yanmar 370 / 376 | 2 340 ₽ |
|
| PP-42-916 | Свеча накаливания, Yanmar 370 / 376 | 1 190 ₽ |
|
|
| PP-41-6582 | Свеча накаливания, Yanmar 249 / 366 / 374 / 388 / 395 | 1 190 ₽ |
|
|
| 16 | 33-1733 | GASKET - nozzle | 4 | |
| 17 | 11-9646 | PROTECTOR - nozzle | 2 | |
| 18 | 12-1016 | HEAD ASSEMBLY - cylinder | 1 | |
| 19 | 55-5806 | PLUG (35 mm) | 2 | |
| 20 | 13-558 | VALVE - exhaust | 2 | |
| 21 | 13-848 | VALVE - intake | 2 | |
| 22 | 13-556 | GUIDE - valve | 4 | |
| 23 | 11-9653 | SEAL - valve stem (intake) | 2 | |
|
11-9653 OEM | Маслосъемный колпачок, Yanmar 370 / 376 | 1 020 ₽ |
|
| PP-11-9653 | Маслосъемный колпачок, Yanmar 370 / 376 | 600 ₽ |
|
|
| 24 | 11-9654 | SEAL - valve stem (exhaust) | 2 | |
|
11-9654 OEM | Маслосъемный колпачок, Yanmar 370 / 376 | 1 020 ₽ |
|
| PP-11-9654 | Маслосъемный колпачок, Yanmar 370 / 376 | 600 ₽ |
|
|
| 25 | 11-9650 | SPRING - valve | 3 | |
| 26 | 11-9651 | RETAINER - spring | 4 | |
| 27 | 11-9652 | KEEPER - valve | 8 | |
| 28 | 11-9647 | CAP - valve | 4 | |
| 29 | 55-5803 | SPRING - pin | 2 | |
| 30 | 13-467 | MANIFOLD - exhaust | 1 | |
| 31 | 33-4223 | GASKET - manifold | 1 | |
| 32 | 51-1279 | STUD - muffler | 4 | |
| 33 | 33-4189 | GASKET - muffler | 1 | |
| 34 | 51-602 | SCREW - manifold | 2 | |
| 35 | 51-601 | STUD - manifold (M6 x 50) | 2 | |
| 36 | 51-594 | NUT - manifold | 2 | |
| 30-281 | GASKET SET (see 209A0) | 1 |
