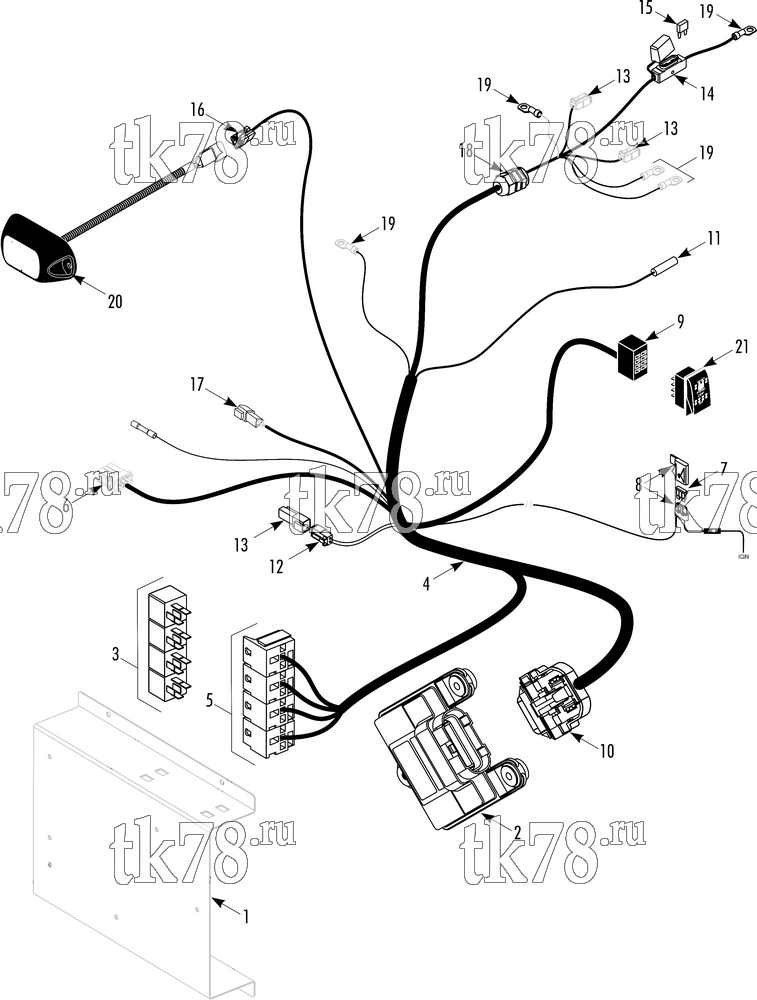

Установкa Thermo King TriPac EVOLUTION схема DPF CONTROLLER & HARNESS (2/12 & After) – 258A1
Обновление от: 8/2/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-7067 | COVER - controller | 1 | |
| 2 | 41-8119 | MODULE - controller | 1 | |
| 55-2001 | FLATWASHER | 5 | ||
| 55-2964 | LOCKWASHER | 5 | ||
| 55-2965 | NUT | 5 | ||
| 3 | 41-895 | RELAY - mini | 4 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 4 | 42-333 | HARNESS - TriPac DPF | 1 | |
| 5 | 44-5537 | SOCKET - relay (air solenoid, engine start interrupt, standby interrupt & fault) | 4 | |
| 44-5066 | FINGRIP - socket (18 -14 ga) | 15 | ||
| 41-9638 | FINGRIP - socket (10 ga) | 1 | ||
| 6 | 41-8264 | RECEPTACLE - DPF (6-pin) | 1 | |
| 41-8266 | TERMINAL (16-14 awg) | 5 | ||
| 7 | 41-1932 | FUSE (1 amp) | 1 | |
| 8 | 41-1770 | HOLDER - fuse | 1 | |
| 30-41-1770 | Гнездо предохранителя 32V 30А | 760 ₽ |
|
|
| 41-1769 | COVER - fuse | 1 | ||
| 30-41-1769 | Крышка предохранителя | 510 ₽ |
|
|
| 9 | 41-1508 | SOCKET - switch | 1 | |
| 42-337 | TERMINAL - fingrip (14-16 ga) | 2 | ||
| 42-338 | TERMINAL - fingrip (10 awg) | 3 | ||
| 10 | 42-339 | CONNECTOR - female (24-pin) | 1 | |
| 42-340 | TERMINAL - female | 20 | ||
| 42-341 | LOCK - connector | 1 | ||
| 42-342 | SEAL - green | 1 | ||
| 42-343 | RETAINER | 1 | ||
| 42-344 | STRAIN - relief | 1 | ||
| 11 | 40-975 | SENSOR - ambient air | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 12 | 44-9589 | RECEPTACLE (2-pin) | 1 | |
| 44-9602 | PIN - sealing | 2 | ||
| 13 | 44-9585 | PLUG - air solenoid, blower, CAN interface (2-pin, w/ seal) | 3 | |
| 44-9586 | WEDGE | 3 | ||
| 44-9593 | SOCKET (14-16 ga) | 4 | ||
| 44-9587 | SOCKET (18 ga) | 2 | ||
| 14 | 41-3074 | HOLDER - fuse | 1 | |
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 15 | 41-4553 | FUSE - 10 amp | 1 | |
| 16 | 44-9631 | CONNECTOR - cab display (3-pin, w/ seal) | 1 | |
| 44-9536 | WEDGE (3-pin) | 1 | ||
| 44-9587 | SOCKET (18 ga) | 3 | ||
| 17 | 44-9544 | RECEPTACLE - air pressure transducer (3-pin) | 1 | |
| 44-9545 | WEDGE (3-pin) | 1 | ||
| 44-9597 | PIN (14-16 ga) | 1 | ||
| 44-9591 | PIN (18 ga) | 2 | ||
| 18 | 41-4817 | CONNECTOR - harness grip | 1 | |
| 19 | 44-7245 | TERMINAL - ring (red #10, 22-16 ga) | 2 | |
| 44-1031 | TERMINAL - ring (red 5/16, 22-16 ga) | 2 | ||
| 44-9995 | TERMINAL - ring (yellow) | 1 | ||
| 20 | 41-9949 | DISPLAY - DPF | 1 | |
| 21 | 41-8272 | SWITCH - DPF | 1 |
