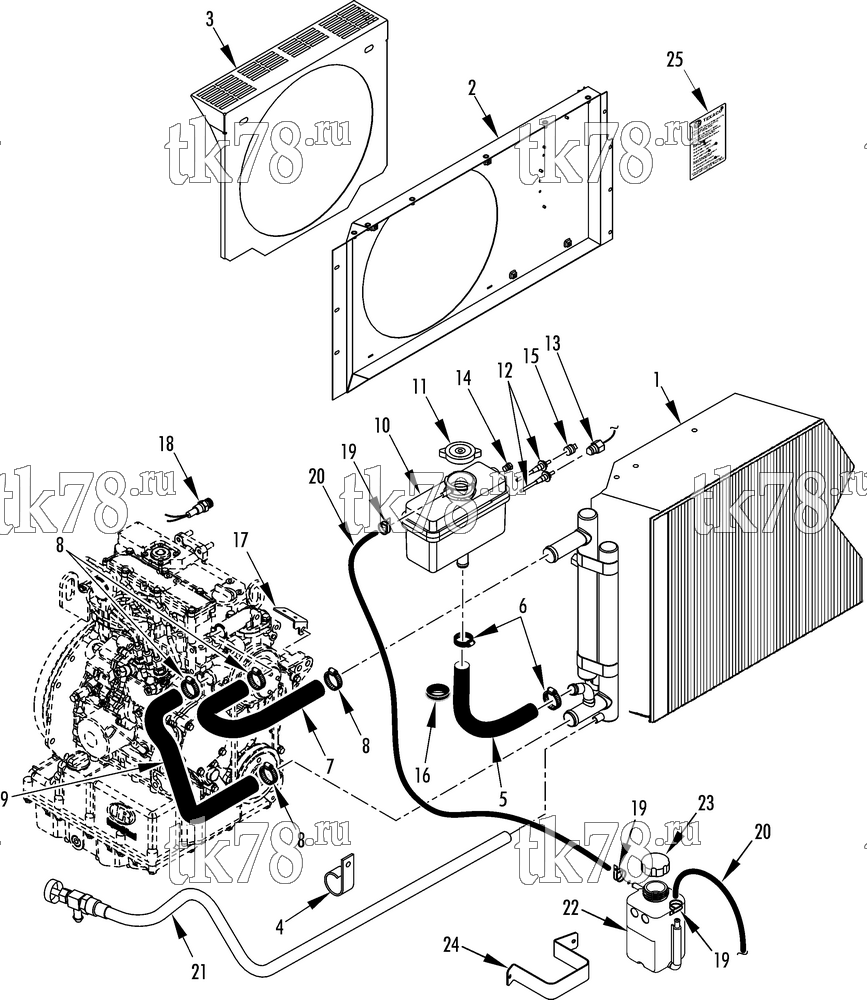

Установкa Thermo King TS-500 w/TK 3.76 Engine схема ENGINE COOLING SYSTEM (W/OVERFLOW TANK – 241H6
Обновление от: 12/17/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2167 | COIL - condenser/radiator | 1 | |
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 2 | 92-1552 | PLENUM - condenser | 1 | |
| 55-8711 | INSERT - threaded | 6 | ||
| 55-3059 | NUT - captive | 4 | ||
| 55-2977 | SCREW - plenum | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 3 | 92-1551 | ORIFICE - condenser fan (TS-500) | 1 | |
| 55-2977 | SCREW - orifice | 4 | ||
| 55-3045 | WASHER - dome | 4 | ||
| 4 | 55-6388 | CLAMP - tube | 2 | |
| 55-3121 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 5 | 98-935 | HOSE - expansion tank to radiator (EPDM, cut to 15 in) | 1 | |
| 12-419 | HOSE - expansion tank to radiator (silicone, cut to 15 in) | 1 | ||
| 6 | 55-6731 | CLAMP - hose (silicone) | 2 | |
| 7 | 13-607 | HOSE - engine to radiator (upper, EPDM) | 1 | |
| 13-609 | HOSE - engine to radiator (upper, silicone) | 1 | ||
| 8 | 55-2818 | CLAMP - hose (EPDM) | 4 | |
| 55-3401 | CLAMP - hose (silicone) | 4 | ||
| 9 | 13-608 | HOSE - radiator to engine (lower, EPDM) | 1 | |
| 13-610 | HOSE - radiator to engine (lower, silicone) | 1 | ||
| 10 | 12-826 | TANK - expansion | 1 | |
| 55-2977 | SCREW - tank | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 11 | 11-9242 | CAP - tank | 1 | |
|
10-11-9242 | Крышка радиатора 10 LBS | 2 370 ₽ |
|
| 12 | 44-6534 | SENSOR - water level (TS-500/600) | 2 | |
|
10-44-6534 | Сенсор радиатора | 8 830 ₽ |
|
| 13 | 41-2842 | SENSOR - water level (SPECTRUM TS) | 1 | |
| 203-385 | SEALER - thread | A/R | ||
| 14 | 55-3364 | PLUG - pipe (1/8) | 1 | |
| 15 | 55-8459 | PLUG - pipe (3/8) | 1 | |
| 16 | 33-489 | GROMMET (1.25 od) | 1 | |
| 17 | 92-5162 | PLATE - sensor | 1 | |
| 18 | 41-6539 | SENSOR - water temperature | 1 | |
|
10-41-6539 | Датчик температуры двигателя Yanmar 370 / 374 / 376 / 395 / 482 / 486 / 486V | 8 970 ₽ |
|
|
PP-41-6539 | Датчик температуры двигателя Yanmar 370 / 374 / 376 / 395 / 482 / 486 / 486V | 2 720 ₽ |
|
| 19 | 55-2796 | CLAMP . | 3 | |
| 20 | 13-958 | HOSE - overflow (20 in) | A/R | |
| 21 | 13-979 | TUBE - drain (complete) | 1 | |
| 11-9484 | TUBE - drain | 1 | ||
| 66-2672 | ADAPTER - drain cock | 1 | ||
| 55-7134 | COCK - drain | 1 | ||
| 203-385 | SEALER - thread | A/R | ||
| 22 | 12-850 | TANK - overflow | 1 | |
| 23 | 13-957 | CAP - overflow | 1 | |
| 24 | 92-8156 | STRAP - overflow tank | 1 | |
| 55-3136 | RIVET | 2 | ||
| 25 | 91-9269 | NAMEPLATE - coolant | 1 |
