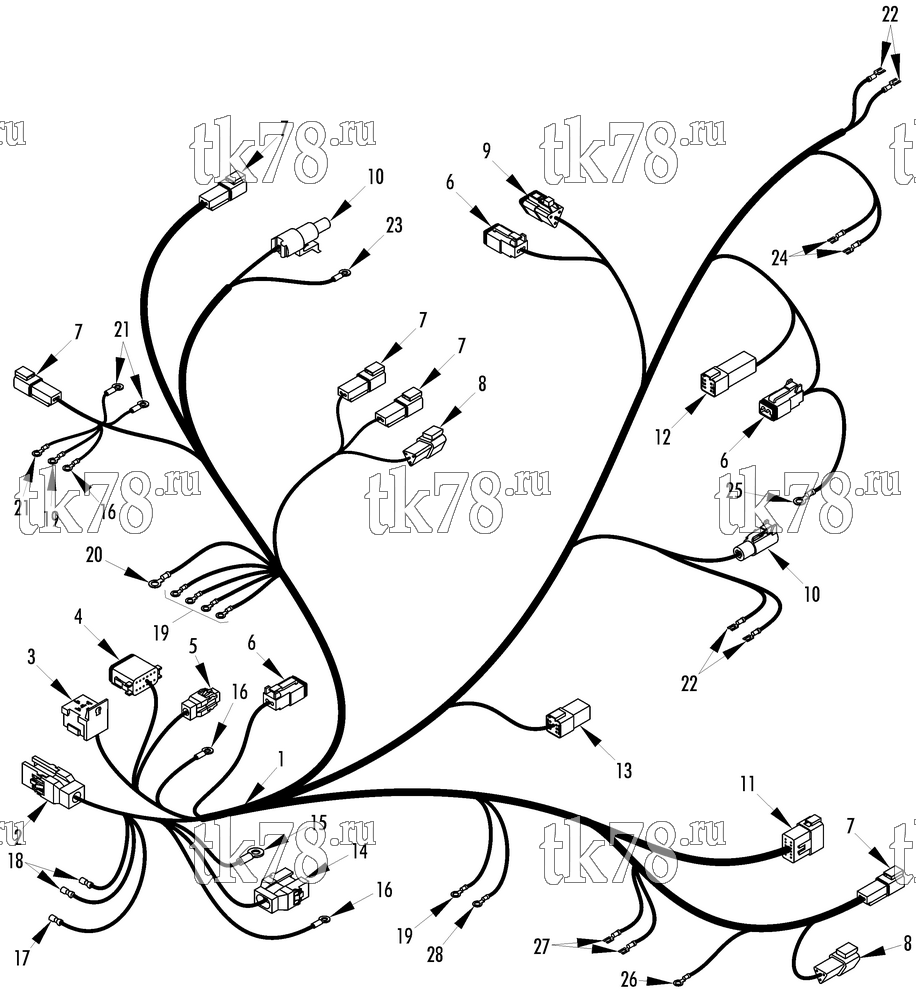

Установкa Thermo King TS-500 w/TK 3.76 Engine схема HARNESS MAIN (DOM) – 241H3
Обновление от: 12/28/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-6949 | HARNESS - main | 1 | |
| 2 | 41-2329 | CONNECTOR (9-pin) | 1 | |
| 44-6850 | PIN (8-10 ga) | 9 | ||
| 41-1950 | STRAIN RELIEF - connector | 1 | ||
| 3 | 44-5537 | HOLDER - relay | 1 | |
| 55-7702 | TERMINAL - fingrip (16-18 ga) | 1 | ||
| 41-5243 | TERMINAL - fingrip (14-16 ga) | 2 | ||
| 44-5066 | TERMINAL - fingrip (14-18 ga) | 2 | ||
| 4 | 44-9600 | PLUG (12-pin) | 1 | |
| 44-9587 | SOCKET (18 ga) | 12 | ||
| 44-9601 | WEDGE | 1 | ||
| 5 | 41-2321 | CONNECTOR (9-pin) | 1 | |
| 44-8539 | SOCKET (18 ga) | 5 | ||
| 41-1950 | STRAIN RELIEF - connector | 1 | ||
| 6 | 44-9585 | PLUG (2-pin) | 3 | |
| 44-9587 | SOCKET (18 ga) | A/R | ||
| 44-9597 | SOCKET (14-16 ga) | A/R | ||
| 44-9586 | WEDGE | 3 | ||
| 7 | 44-9589 | RECEPTACLE (2-pin) | 5 | |
| 44-9587 | PIN (14-16 ga) | 10 | ||
| 44-9590 | WEDGE | 5 | ||
| 8 | 44-9544 | RECEPTACLE (3-pin) | 2 | |
| 44-9587 | PIN (14-16 ga) | 6 | ||
| 44-9545 | WEDGE | 2 | ||
| 9 | 44-9631 | PLUG (3-pin) | 1 | |
| 44-9593 | SOCKET (14-16 ga) | 3 | ||
| 44-9536 | WEDGE | 1 | ||
| 10 | 41-4857 | PLUG - glow plug | 2 | |
| 44-9836 | SOCKET (12-14 ga) | 2 | ||
| 11 | 44-9904 | RECEPTACLE (12-pin) | 1 | |
| 44-9591 | PIN (18 ga) | 12 | ||
| 44-9905 | WEDGE | 1 | ||
| 12 | 41-3069 | RECEPTACLE (1-pin) | 1 | |
| 44-6850 | PIN (8-10 ga) | 1 | ||
| 13 | 44-8914 | RECEPTACLE | 1 | |
| 44-9591 | PIN (18 ga) | 6 | ||
| 44-8917 | WEDGE | 1 | ||
| 14 | 41-2320 | RECEPTACLE (18-pin) | 1 | |
| 44-9928 | PIN (14-18 ga) | 12 | ||
| 41-1951 | STRAIN RELIEF - connector | 1 | ||
| 15 | 41-9114 | TERMINAL - ring (#10 red, 8 ga) | 1 | |
| 16 | 44-2792 | TERMINAL - ring (#10 yellow, 10-12 ga) | 3 | |
| 17 | 41-5244 | TERMINAL - fingrip (10-12 ga) | 1 | |
| 18 | 41-5243 | TERMINAL - fingrip (14-16 ga) | 2 | |
| 19 | 44-2793 | TERMINAL - ring (1/4 yellow, 10-12 ga) | 6 | |
| 20 | 44-2789 | TERMINAL - ring (1/4 blue, 14-16 ga) | 1 | |
| 21 | 44-2791 | TERMINAL - ring (#10 blue, 14-16 ga) | 3 | |
| 22 | 91-4715 | TERMINAL - fork (#10 blue, 14-16 ga) | 4 | |
| 23 | 44-2790 | TERMINAL - ring (5/16 blue, 14-16 ga) | 1 | |
| 24 | 41-9022 | TERMINAL - fork (#8 blue, 14-16 ga) | 2 | |
| 25 | 44-2786 | TERMINAL - ring (3/8 blue, 14-16 ga) | 1 | |
| 26 | 651-246 | TERMINAL - ring (#8 blue, 14-16 ga) | 1 | |
| 27 | 41-438 | TERMINAL - fork (#6 red, 14-16 ga) | 2 | |
| 28 | 44-2789 | TERMINAL - ring (1/4 red, 16-22 ga) | 1 |
