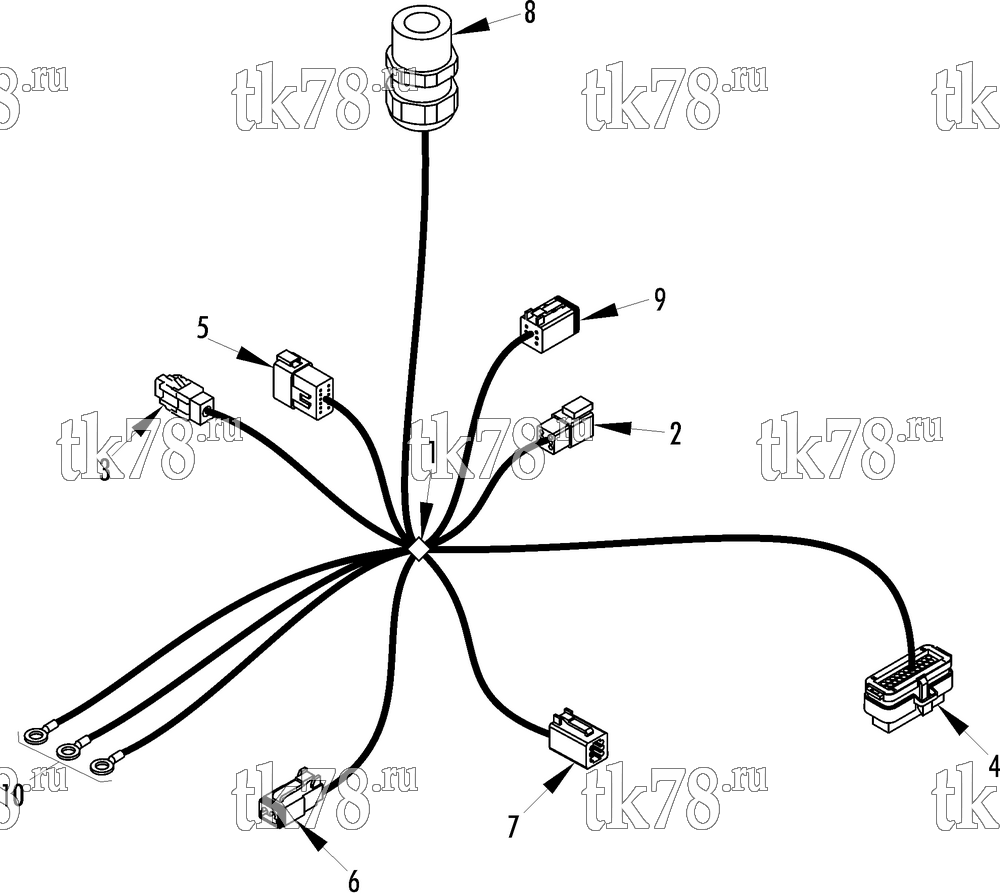

Установкa Thermo King TS-500 w/TK 3.76 Engine схема HARNESS DAS MAIN (EMEIA) – 241C0
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-3092 | HARNESS - DAS | 1 | |
| 2 | 44-8914 | RECEPTACLE - 6-pin | 1 | |
| 44-9591 | TERMINAL - pin (18 ga) | 6 | ||
| 44-8917 | WEDGE - 6-pin | 1 | ||
| 3 | 41-3882 | CONNECTOR - 6-pin | 1 | |
| 44-8539 | TERMINAL - socket (18 ga) | 1 | ||
| 41-1945 | STRAIN RELIEF - connector (6 position) | 1 | ||
| 4 | 41-3359 | CONNECTOR - 35-pin (DAS) | 1 | |
| 41-2457 | SOCKET (18 ga) | 27 | ||
| 5 | 44-9904 | RECEPTACLE - 12-pin | 1 | |
| 44-9591 | TERMINAL - pin (18 ga) | 12 | ||
| 44-9905 | WEDGE - 12-pin | 1 | ||
| 6 | 44-9585 | CONNECTOR - 2-pin | 1 | |
| 44-9587 | SOCKET (18 ga) | 2 | ||
| 44-9586 | WEDGE - 2-pin | 1 | ||
| 7 | 44-8935 | CONNECTOR - 4-pin | 1 | |
| 44-9587 | SOCKET (18 ga) | 4 | ||
| 44-8936 | WEDGE - 4-pin | 1 | ||
| 8 | 55-6742 | CONNECTOR - liquid tite | 1 | |
| 9 | 44-8920 | CONNECTOR - 6-pin | 1 | |
| 44-8921 | WEDGE - 6-pin | 1 | ||
| 10 | 44-2791 | TERMINAL - ring (#10 blue, 14-16 ga) | 3 | |
| 55-2332 | BANDWRAP (.75 dia) | 13 | ||
| 55-2330 | BANDWRAP (1.75 dia) | 2 |
