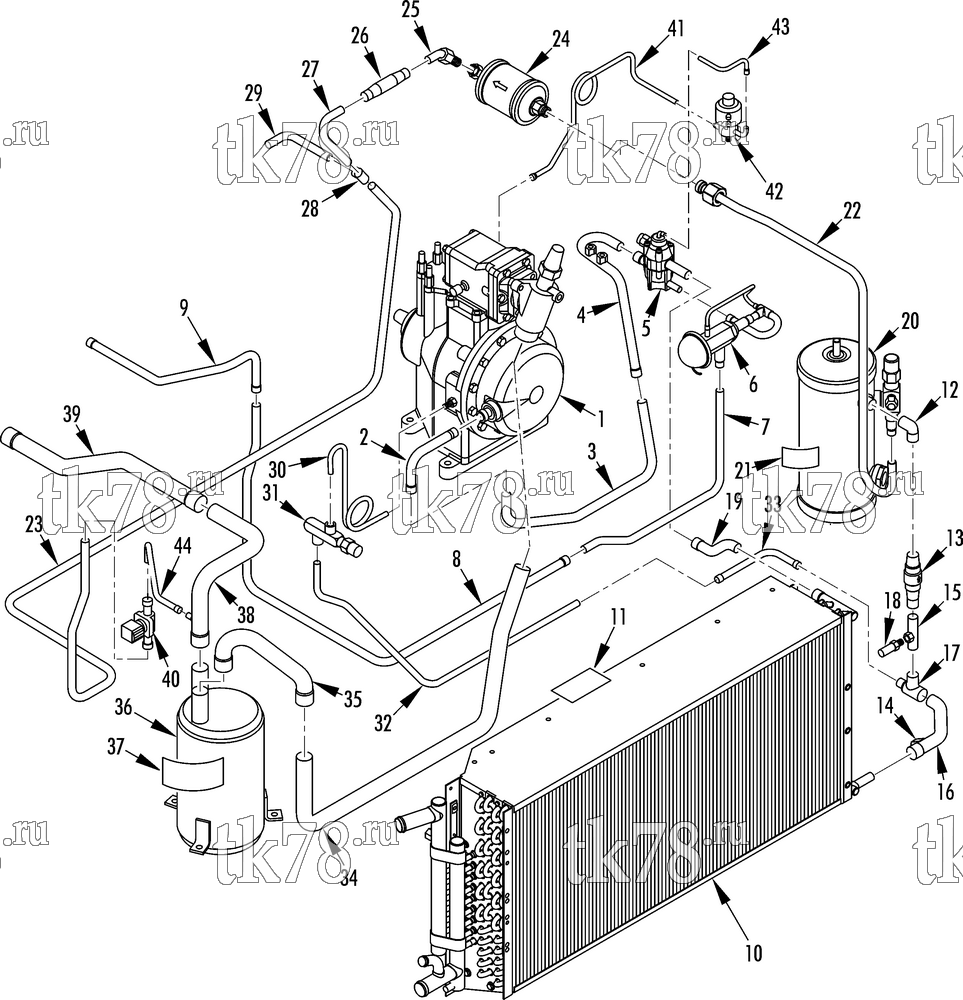

Установкa Thermo King TS-500 w/TK 3.76 Engine схема REFRIGERATION COMPONENTS - CONDENSER – 209B5
Обновление от: 12/23/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-950 | COMPRESSOR - scroll (R404A, see 139E8) | 1 | |
| 2 | 61-1155 | TUBE - discharge (dimpled) | 1 | |
| 3 | 61-1156 | TUBE - 3-way valve | 1 | |
| 66-6996 | FITTING - saddle | 2 | ||
| 4 | 11-2886 | VALVE (Schrader) | 1 | |
| 55-7213 | VALVE | 1 | ||
| 11-7777 | CORE - valve | 1 | ||
| 55-5672 | CAP | 1 | ||
| 5 | 66-9896 | VALVE - 3-way (see 153F10) | 1 | |
| 55-3618 | SCREW - 3-way valve | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 6 | 61-191 | VALVE - dpr | 1 | |
| 7 | 61-275 | TUBE - defrost, 3-way valve | 1 | |
| 8 | 61-1157 | TUBE - 3-way valve to evaporator (defrost) | 1 | |
| 9 | 61-1158 | TUBE - evaporator to 3-way valve (defrost) | 1 | |
| 10 | 67-2167 | COIL - condenser/radiator (see 209B9) | 1 | |
| 11 | 92-1944 | NAMEPLATE - pressure vessel | 1 | |
| 12 | 55-3248 | ELBOW (1/2, 90 deg) | 1 | |
| 13 | 66-5722 | VALVE - check | 1 | |
| 14 | 99-3060 | FITTING - saddle | 1 | |
| 15 | 66-9648 | TUBE - tee to check valve | 1 | |
| 16 | 66-9647 | TUBE - discharge to coil | 1 | |
| 17 | 55-9240 | TEE (5/8 x 3/8 x 1/2) | 1 | |
| 18 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - relief valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 19 | 61-3379 | TUBE - 3-way to coil | 1 | |
| 20 | 67-1180 | TANK - receiver (see 125F4) | 1 | |
| 21 | 91-7419 | NAMEPLATE - pressure vessel | 1 | |
| 22 | 61-4973 | TUBE - receiver to drier | 1 | |
| 23 | 61-3378 | TUBE - tee to valve | 1 | |
| 24 | 61-800 | DEHYDRATOR (see 139E11) | 1 | |
|
10-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 4 650 ₽ |
|
|
PP-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 1 600 ₽ |
|
| 25 | 61-4974 | TUBE - dehydrator to valve | 1 | |
| 26 | 66-5763 | VALVE - check | 1 | |
| 27 | 61-4975 | TUBE - valve to tee | 1 | |
| 28 | 55-3251 | TEE (3/8 x 3/8 x 3/8) | 1 | |
| 29 | 66-8948 | TUBE - tee to evaporator | 1 | |
| 30 | 61-3380 | TUBE - valve to compressor | 1 | |
| 31 | 61-2727 | VALVE - desuperheater | 1 | |
| 32 | 66-8951 | TUBE - desuperheat valve to coil | 1 | |
| 33 | 66-9651 | TUBE - coil to tube | 1 | |
| 34 | 61-1160 | TUBE - suction | 1 | |
| 35 | 61-1161 | TUBE - accumulator (suction) | 1 | |
| 36 | 67-1742 | TANK - accumulator | 1 | |
| 55-2683 | SCREW - tank | 3 | ||
| 55-7122 | WASHER - belleville | 3 | ||
| 55-2641 | FLATWASHER | 3 | ||
| 37 | 92-1945 | NAMEPLATE - pressure vessel | 1 | |
| 38 | 61-1162 | TUBE - suction | 1 | |
| 55-7068 | FITTING | 1 | ||
| 39 | 61-1163 | TUBE - accumulator to evaporator (suction) | 1 | |
| 40 | 61-283 | VALVE - solenoid (liquid injection, see 138A1) | 1 | |
| 55-3029 | SCREW | 1 | ||
| 55-3800 | LOCKWASHER | 1 | ||
| 55-2201 | FLATWASHER | 1 | ||
| 41 | 66-8940 | TUBE - solenoid to throttling | 1 | |
| 42 | 66-8560 | VALVE - pilot solenoid | 1 | |
| 66-8560 OEM | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 38 690 ₽ |
|
|
|
10-66-8560 | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 31 100 ₽ |
|
|
PP-61-8939 | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 8 380 ₽ |
|
| 41-1521 | COIL | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 55-3029 | SCREW - solenoid | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 43 | 66-9897 | TUBE - solenoid to 3-way valve | 1 | |
| 44 | 61-3381 | TUBE - valve to accumulator | 1 |
