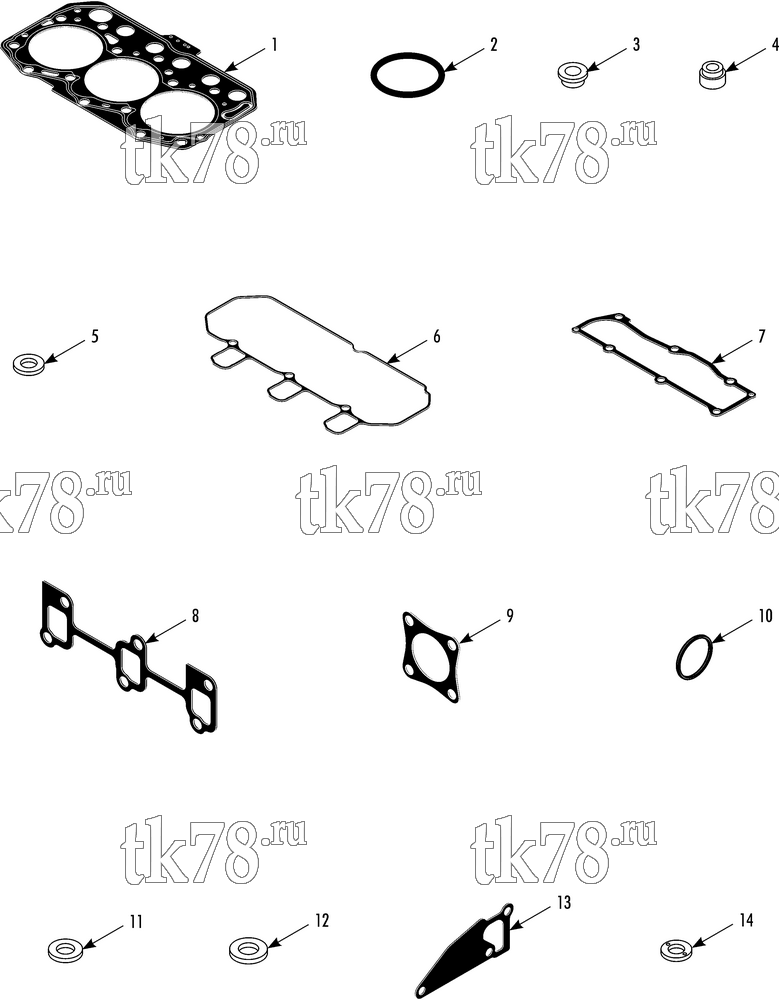

Установкa Thermo King TS-500 w/TK 3.76 Engine схема GASKET SET (TK 376/376N) – 185G2
Обновление от: 5/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 30-275 | GASKET SET | 1 | ||
|
30-275 OEM | Набор прокладок, Yanmar 376, UT/TS/T-Series | 29 710 ₽ |
|
|
PP-30-275 | Набор прокладок, Yanmar 376, UT/TS/T-Series | 10 200 ₽ |
|
| 1 | 33-3818 | GASKET - cylinder head | 1 | |
|
10-33-3818 | Прокладка ГБЦ, Yanmar 376 | 10 900 ₽ |
|
|
PP-33-3818 | Прокладка ГБЦ, Yanmar 376 | 2 010 ₽ |
|
| 2 | 33-1953 | O-RING (fuel injection pump) | 1 | |
| 3 | 11-9646 | PROTECTOR - nozzle | 3 | |
| 4 | 11-9653 | SEAL - valve stem (intake) | 3 | |
|
11-9653 OEM | Маслосъемный колпачок, Yanmar 370 / 376 | 1 020 ₽ |
|
| PP-11-9653 | Маслосъемный колпачок, Yanmar 370 / 376 | 600 ₽ |
|
|
| 11-9654 | SEAL - valve stem (exhaust) | 3 | ||
|
11-9654 OEM | Маслосъемный колпачок, Yanmar 370 / 376 | 1 020 ₽ |
|
| PP-11-9654 | Маслосъемный колпачок, Yanmar 370 / 376 | 600 ₽ |
|
|
| 5 | 33-1733 | GASKET - nozzle | 6 | |
| 6 | 33-3822 | GASKET - valve cover | 1 | |
|
33-3822 OEM | Прокладка клапанной крышки, Yanmar 376 | 4 870 ₽ |
|
|
10-33-3822 | Прокладка клапанной крышки, Yanmar 376 | 4 870 ₽ |
|
| 7 | 33-3823 | GASKET - intake manifold | 1 | |
| 8 | 33-3824 | GASKET - exhaust manifold | 1 | |
| 9 | 33-1907 | GASKET - exhaust manifold | 1 | |
|
10-33-1907 | Прокладка глушителя, Yanmar 388 / 395 | 1 070 ₽ |
|
| 10 | 33-1954 | O-RING (P32) | 2 | |
| 33-3821 | O-RING (P16) | 1 | ||
| 33-3512 | O-RING (P12) | 1 | ||
| 33-3820 | O-RING (P17) | 3 | ||
| 33-1736 | O-RING (P10) | 1 | ||
| 33-3825 | O-RING (P16) | 1 | ||
| 33-4091 | O-RING (P40) | 1 | ||
| 11 | 55-4622 | WASHER - seal (8) | 4 | |
| 55-8620 | WASHER - seal (12) | 4 | ||
| 12 | 33-3834 | GASKET - return | 3 | |
| 13 | 33-3828 | GASKET - water pump | 1 | |
| 14 | 33-1524 | GASKET - water pump | 1 |
