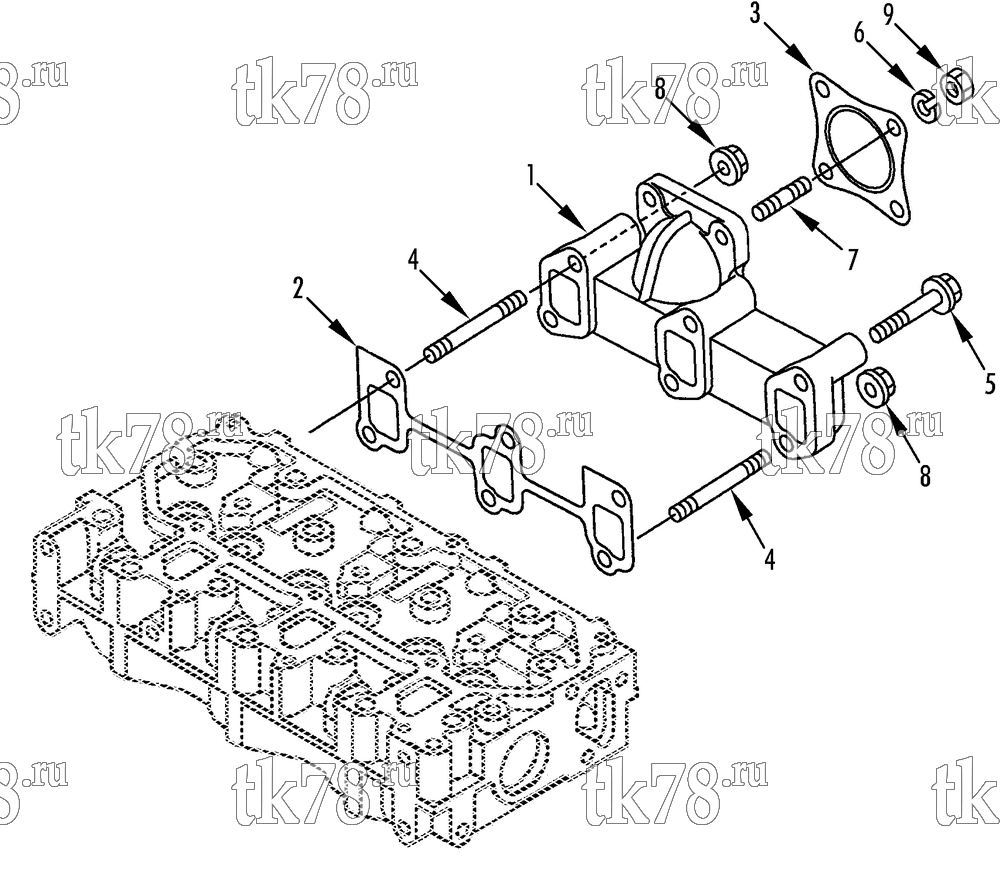

Установкa Thermo King TS-500 w/TK 3.76 Engine схема EXHAUST MANIFOLD (TK 376) – 185F7
Обновление от: 4/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9663 | MANIFOLD - exhaust | 1 | |
| 2 | 33-3824 | GASKET - exhaust manifold | 1 | |
| 3 | 33-1907 | GASKET - silencer | 1 | |
|
10-33-1907 | Прокладка глушителя, Yanmar 388 / 395 | 1 070 ₽ |
|
| 4 | 51-601 | STUD - manifold | 2 | |
| 5 | 51-602 | SCREW - manifold | 4 | |
| 6 | 55-6183 | LOCKWASHER | 4 | |
| 7 | 55-6184 | STUD - exhaust pipe | 4 | |
| 8 | 51-594 | NUT - manifold | 2 | |
| 9 | 55-6186 | NUT - exhaust pipe | 4 | |
| 30-275 | GASKET SET (see 185G2) | 1 | ||
|
30-275 OEM | Набор прокладок, Yanmar 376, UT/TS/T-Series | 29 710 ₽ |
|
|
PP-30-275 | Набор прокладок, Yanmar 376, UT/TS/T-Series | 10 200 ₽ |
|
