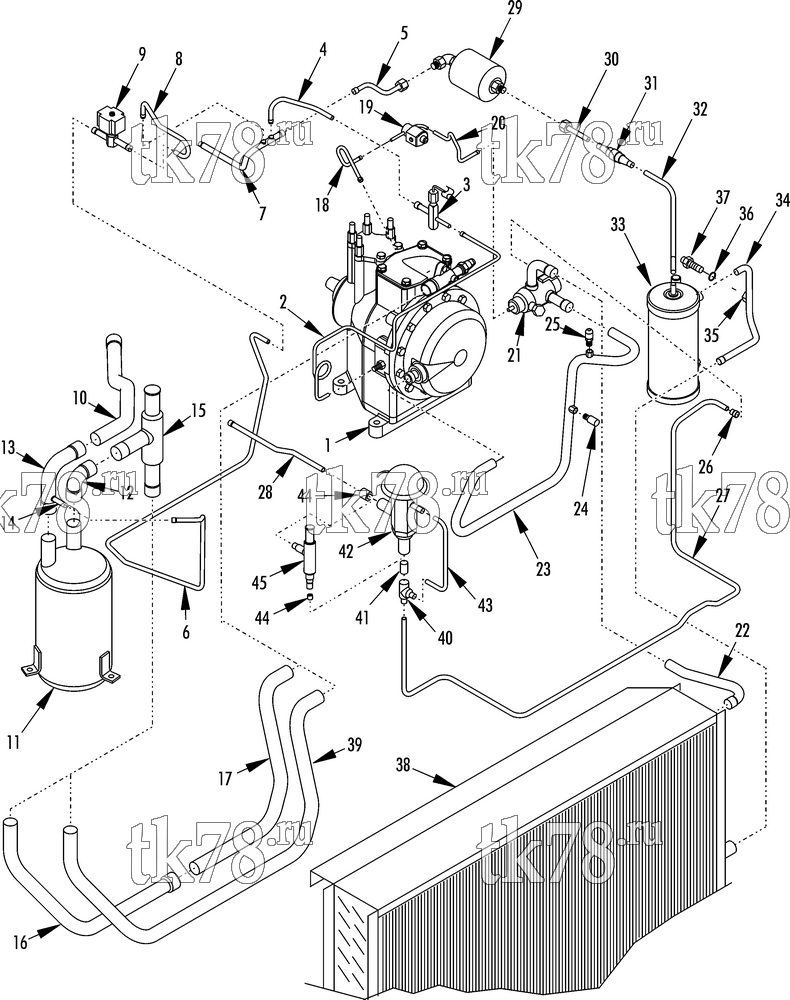

Установкa Thermo King TS-300 w/TK 3.74 Engine схема REFRIGERATION - CONDENSER (1/01 & After) – 166A3
Обновление от: 8/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | COMPRESSOR - scroll (4hp, see 152G1) | 1 | |
| 2 | 66-9939 | TUBE - desuperheat to compressor | 1 | |
| 55-7560 | BUSHING (3/8 to 1/2 sld, before 4/00) | 1 | ||
| 3 | 61-274 | VALVE - desuperheat (before 7/01) | 1 | |
| 61-4165 | VALVE - desuperheat (after 7/01) | 1 | ||
| 4 | 61-1071 | TUBE - valve to tee | 1 | |
| 5 | 61-1073 | TUBE - liquid (dehydrator to bulkhead) | 1 | |
| 6 | 61-1068 | TUBE - solenoid valve to accumulator | 1 | |
| 7 | 61-1070 | TUBE - liquid to heat exchanger | 1 | |
| 8 | 61-1072 | TUBE - liquid (bulkhead to thermax valve) | 1 | |
| 9 | 61-283 | VALVE - solenoid (TherMax, see 138A11) | 1 | |
| 55-3029 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 10 | 61-793 | TUBE - heat exchanger to accumulator (suction) | 1 | |
| 61-403 | VALVE - service | 1 | ||
| 11-7777 | VALVE (Schrader) | 1 | ||
| 11 | 67-1742 | TANK - accumulator (complete) | 1 | |
| 12 | 55-3682 | ELBOW (1-1/8 sld) | 1 | |
| 13 | 61-1074 | TUBE - suction (accumulator) | 1 | |
| 55-2683 | SCREW - accumulator | 3 | ||
| 55-2641 | FLATWASHER | 3 | ||
| 55-7122 | WASHER - belleville | 3 | ||
| 14 | 66-9940 | TUBE - stub | 1 | |
| 15 | 61-4527 | VALVE - cpr | 1 | |
| 14-60052-02 OEM | Клапан KVL Ø 28мм, Maxima / Supra 5XX/8XX/850MT/9XX/950MT/1150/1150MT/1250/1250MT | 39 280 ₽ |
|
|
| P-14-00205-01 | Клапан KVL Ø 28мм, Maxima / Supra 5XX/8XX/850MT/9XX/950MT/1150/1150MT/1250/1250MT | 27 760 ₽ |
|
|
|
10-61-4527 | Клапан KVL Ø 28мм, MD/KD-II/MD-II/TS/T-Series | 27 760 ₽ |
|
| 61-2285 | COUPLING (1-1/8) | 1 | ||
| 16 | 66-9629 | TUBE - valve to compressor | 1 | |
| 17 | 66-9641 | TUBE - compressor to valve (suction) | 1 | |
| 18 | 66-9639 | TUBE - compressor to 3-way | 1 | |
| 55-8457 | NUT | 1 | ||
| 55-8456 | SHOULDER | 1 | ||
| 33-1461 | O-RING | 1 | ||
| 19 | 66-8560 | VALVE - pilot solenoid | 1 | |
| 66-8560 OEM | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 38 690 ₽ |
|
|
|
10-66-8560 | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 31 100 ₽ |
|
|
PP-61-8939 | Пилот соленоид с катушкой 12V, KD/MD/RD/TD-II TS/XDS/SL/SLe/SLX/SLXe | 8 380 ₽ |
|
| 41-1521 | COIL - valve | 1 | ||
|
10-41-1521 | Катушка соленоида, 12V 8W | 5 130 ₽ |
|
| 55-5665 | SCREW - valve | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 20 | 66-9638 | TUBE - solenoid to 3-way valve | 1 | |
| 21 | 66-9631 | VALVE - 3-way (see 151G14) | 1 | |
| 55-3618 | SCREW - valve | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 22 | 61-1446 | TUBE - valve to condenser | 1 | |
| 23 | 66-9640 | TUBE - discharge to compressor | 1 | |
| 66-6996 | FITTING - saddle | 2 | ||
| 24 | 41-3847 | SWITCH - hpco | 1 | |
| 41-3845 OEM | Выключатель HPCO, KD-II/MD-II/RD-II/MD-XXX / T/TS-Series | 10 040 ₽ |
|
|
|
PP-41-3847 | Выключатель HPCO, KD-II/MD-II/RD-II/MD-XXX / T/TS-Series | 3 080 ₽ |
|
| 203-393 | SEALER - thread | A/R | ||
| 25 | 11-2886 | VALVE - access | 1 | |
| 11-7777 | CORE - valve | 1 | ||
| 55-5672 | CAP | 1 | ||
| 26 | 55-2865 | COUPLING (1/2 sld to 3/8 sld) | 1 | |
| 27 | 61-3585 | TUBE - defrost (valve to bulkhead) | 1 | |
| 28 | 61-4273 | TUBE - defrost regulator valve | 1 | |
| 29 | 61-800 | DEHYDRATOR (see 152G2) | 1 | |
|
10-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 4 650 ₽ |
|
|
PP-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 1 600 ₽ |
|
| 30 | 66-9644 | TUBE - dehydrator to valve | 1 | |
| 55-8268 | SHOULDER | 1 | ||
| 55-8267 | NUT | 1 | ||
| 31 | 66-5763 | VALVE - check | 1 | |
| 32 | 61-4976 | TUBE - check valve to receiver (liquid) | 1 | |
| 33 | 67-1180 | TANK - receiver (see 122C5) | 1 | |
| 34 | 61-4977 | TUBE - liquid, receiver to coil | 1 | |
| 35 | 55-3295 | FITTING - saddle | 1 | |
| 36 | 33-1015 | O-RING - gasket | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 37 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 38 | 67-1741 | COIL - condenser (before 4/06, see 166A2) | 1 | |
| 67-2215 | COIL - condenser (see 214B8) | 1 | ||
| 39 | 61-1776 | TUBE - valve to compressor (this tube replaces items 16 & 17) | 1 | |
| 40 | 55-9426 | TEE (1/2 x 3/8 x 1/4) | 1 | |
| 41 | 61-266 | TUBE - inlet | 1 | |
| 42 | 61-1525 | VALVE - discharge pressure (before 5/03) | 1 | |
| 43 | 61-268 | TUBE - equalizer (regulator valve) | 1 | |
| 44 | 55-3247 | BUSHING | 2 | |
| 45 | 61-2287 | VALVE - dpr (defrost regulator valve, 5/03 & after) | 1 |
