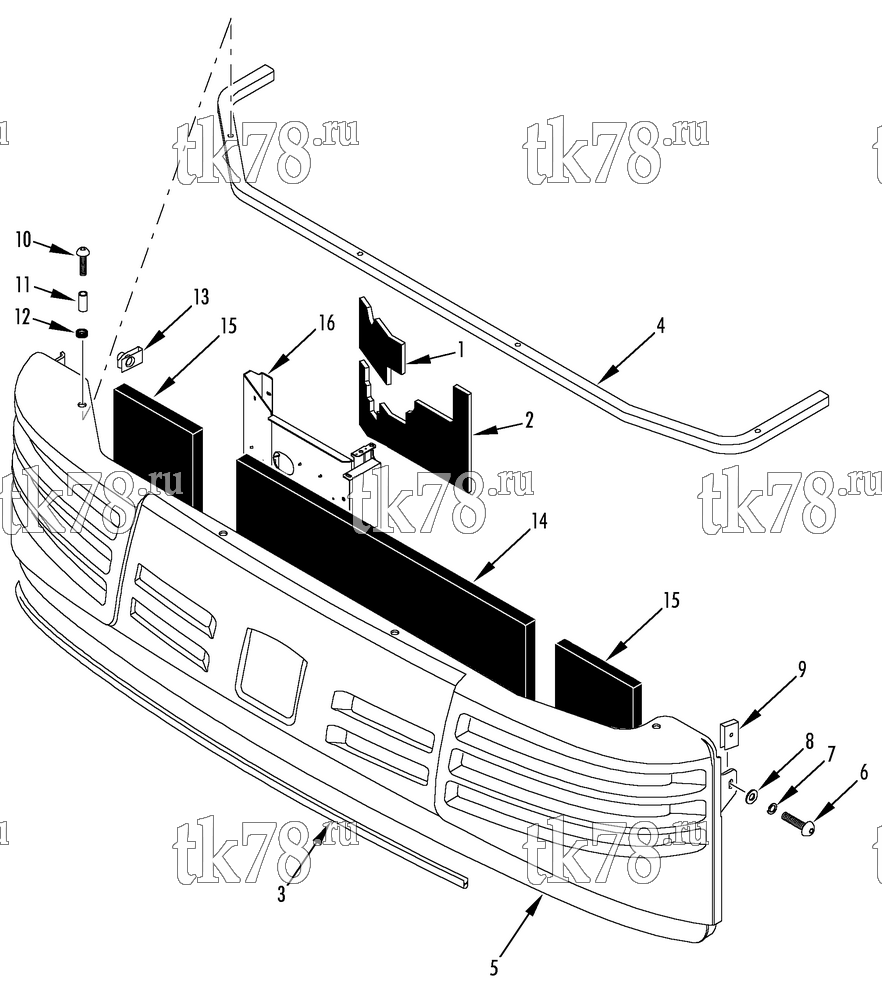

Установкa Thermo King TS-200 w/TK 370 Engine схема CONDENSER GRILLE GROUP – 214B9
Обновление от: 12/4/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-4288 | INSULATION - blockoff panel (lower) | 1 | |
| 2 | 33-4289 | INSULATION - blockoff panel (upper) | 1 | |
| 3 | 33-3268 | EXTRUSION - sealing (59.5 in lg) | 1 | |
| 55-2977 | SCREW - support | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 4 | 98-5987 | TUBE - grille support | 1 | |
| 55-2977 | SCREW - tube | 4 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 9 | ||
| 55-8711 | INSERT - threaded | 9 | ||
| 5 | 98-5988 | GRILLE - front | 1 | |
| 6 | 55-2969 | SCREW - grille | 5 | |
| 7 | 55-2959 | LOCKWASHER | 5 | |
| 55-2958 | FLATWASHER | 5 | ||
| 9 | 55-9324 | NUT - blind | 5 | |
| 10 | 55-5965 | SCREW - grille | 6 | |
| 55-2086 | FLATWASHER | 6 | ||
| 11 | 55-9683 | SPACER | 4 | |
| 12 | 33-547 | GROMMET (0.375 id) | 4 | |
| 55-5970 | WASHER - sealing | 1 | ||
| 55-4742 | WASHER - special | 6 | ||
| 13 | 55-9325 | NUT - U | 1 | |
| 14 | 91-9934 | PANEL - insulation, center | 1 | |
| 15 | 91-9840 | INSULATION - panel (sides) | 2 | |
| 16 | 98-7510 | PANEL - blockoff (see 214B7) | 1 | |
| 55-2977 | SCREW - panel | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 55-2086 | FLATWASHER | 5 |
