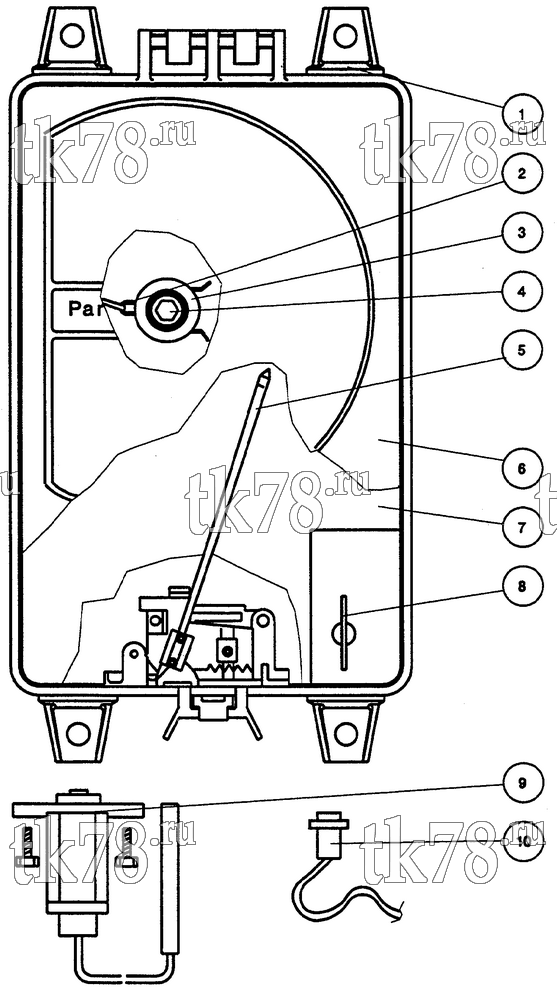

Установкa Thermo King TNE 507 UNIT TYPE 12-12A схема TEMPERATURE RECORDER – 165A1
Обновление от: 1/18/01
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | K25-25984-206 | CASE (w/ gasket) | 1 |
| 2 | K25-25984-207 | CHART NUT - assembly | 1 |
| 3 | K25-18774-004 | CHART NUT CENTER | 1 |
| 4 | K25-19667-002 | CHART DRIVE | 1 |
| 5 | K25-25984-202 | STYLUS - assembly | 1 |
| 6 | K25-25984-201 | COVER - assembly | 1 |
| 7 | K25-25984-203 | MECHANISM - assembly | 1 |
| 8 | K25-20410-000 | KEY - Partlow | 1 |
| 9 | K25-25984-200 | PARTLOW BULB ELEMENT | 1 |
| 10 | PROBE | PROBE - Simpson | 1 |
| 12 | K25-25984-08 | TEMPERATURE RECORDER (complete) | 1 |
| 13 | K25-25984-81 | TEMPERATURE RECORDER (complete, w/ Simpson probe) | 1 |
