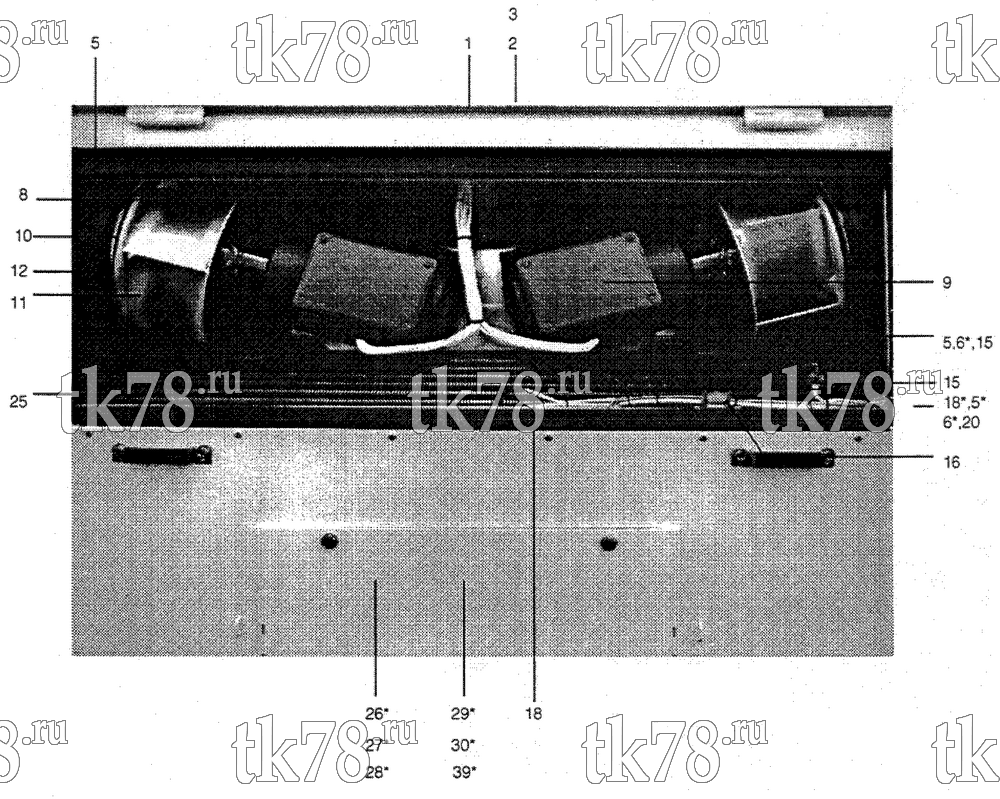

Установкa Thermo King TNE 507 UNIT TYPE 12-12A схема REFRIGERATION UNIT - EVAPORATOR VIEW – 163H7
Обновление от: 7/31/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 503-212 | GASKET - evaporator door (K28-51502-00) | 1 | |
| 2 | 509-937 | RUBBER STRAP (15 in) (K28-10691-00) | 2 | |
| 3 | 91-9039 | HOOK - straps (K29-18490-00) | 2 | |
| 4 | 503-214 | GASKET - evaporator section unit (K28-51504-00) | 1 | |
| 5 | 55-8907 | GLAND (PG 16) (K25-51784-19) | 2 | |
| 6 | 55-8908 | NUT (PG 16) (K25-58202-16) | 4 | |
| 8 | 504-218 | WIRING - evaporator fan (360-53160-01) | 1 | |
| 9 | 104-691 | MOTOR - evaporator fan (K24-21354-00) | 2 | |
| 10 | 509-1047 | LABEL - arrow sign (K35-04538-00) | 2 | |
| 11 | 508-114 | WHEEL - evaporator fan (K26-24621-00) | 2 | |
| 12 | 509-448 | RING - inlet, wheel (060-54341-00) | 2 | |
| 15 | 44-8340 | TERMINAL - closed end (K25-19666-00) | 10 | |
| 16 | 41-3401 | SWITCH - overheat (130 F) (K25-19557-00) | 1 | |
| 18 | 40-791 | KIT - sensor (universal) (360-53039-00) | 1 | |
| 40-791 OEM | Датчик оттайки | 8 070 ₽ |
|
|
| 20 | 504-291 | PROBE - PT100 (return air replacement kit set) (360-54168-00) | 1 | |
| 25 | 506-254 | COIL - evaporator (K26-51830-00) | 1 | |
| 26 | 509-446 | BRACKET - heater (060-54308-00) | 1 | |
| 27 | 45-1791 | ELEMENT - heater (K25-51590-00) | 6 | |
| 28 | 509-199 | BRACKET - wiring tie (060-07991-00) | 1 | |
| 29 | 503-220 | GASKET - heat door unit (K28-51592-00) | 1 | |
| 30 | 504-219 | WIRING - heat element (360-53160-03) | 1 | |
| 39 | 504-564 | TERMINAL - closed end (K25-16557-00) | 5 |
