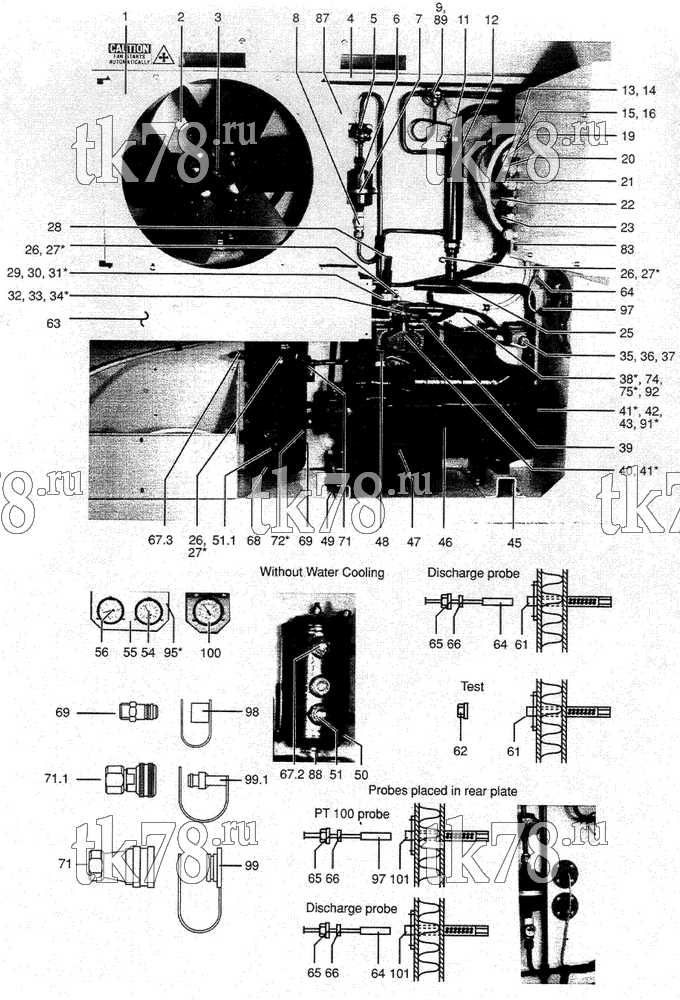

Установкa Thermo King TNE 507 UNIT TYPE 01-10 схема COMPRESSOR AND CONDENSER SECTION – 163G4
Обновление от: 4/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 509-303 | PLATE - inlet ring (060-53073-00) | 1 | |
| 2 | FAN | FAN - condenser (K26-24606-00) | 1 | |
| 3 | 104-759 | MOTOR - condenser (1725 rpm) (K24-21158-00) | 1 | |
| 4 | 509-693 | PLATE - top condenser section (060-53114-00) | 1 | |
| 5 | 505-173 | VALVE - hand (K22-51786-00) | 1 | |
| 6 | DRIER | DRIER (K26-10795-00) | 1 | |
| 7 | 55-8938 | CLAMP - drier (K21-15649-12) | 1 | |
| 8 | 506-215 | INDICATOR - moisture (K26-22196-00) | 1 | |
| 9 | 506-200 | VALVE - TX (K25-51675-00) | 1 | |
| 11 | 505-167 | CLAMP - heat exchanger (K21-15649-07) | 2 | |
| 12 | 506-250 | HEAT EXCHANGER (K26-51703-00) | 1 | |
| 13 | 504-887 | GLAND (PG 21) (K25-51784-21) | 1 | |
| 14 | 505-386 | NUT (PG 21) (K25-50014-21) | 1 | |
| 15 | 504-885 | GLAND (PG 16) (K25-51784-18) | 9 | |
| 16 | 505-385 | NUT (PG 16) (K25-50014-16) | 9 | |
| 19 | 504-218 | WIRING - evaporator fan (360-53160-01) | 1 | |
| 20 | 504-233 | WIRING - klixon probe (360-53160-27) | 1 | |
| 21 | 504-219 | WIRING - heat element (360-53160-03) | 1 | |
| 22 | 504-223 | WIRING - condenser motor (360-53160-11) | 1 | |
| 23 | 504-222 | WIRING - compressor (360-53160-10) | 1 | |
| 25 | 506-160 | VALVE - crankcase pressure regulator (K22-06884-00) | 1 | |
| 26 | 55-5672 | CAP - check valve (K23-11018-00) | 8 | |
| 27 | 11-7777 | CORE - check valve (K22-02475-00) | 4 | |
| 28 | 504-1025 | VALVE - constant pressure regulator (K26-51680-22) | 1 | |
| 29 | VALVE | VALVE - unload (less coil) (K29-51754-00) | 1 | |
| 30 | 504-790 | COIL - unload valve (K25-50005-00) | 1 | |
| 31 | 33-2218 | GASKET - unload valve (K28-51755-00) | 1 | |
| 32 | 506-147 | VALVE - service, discharge (K22-04984-00) | 1 | |
| 33 | 506-162 | CAP - service discharge valve (K22-06971-00) | 1 | |
| 34 | 503-175 | GASKET - service discharge valve (K28-04836-00) | 1 | |
| 35 | 504-898 | VALVE - capacity reduction (less coil) (K25-51808-00) | 1 | |
| 36 | 504-883 | COIL - capacity reduction valve (K25-51778-00) | 1 | |
| 37 | 504-899 | KIT SET - capacity reduction valve (less coil) (K25-51815-00) | 1 | |
| 38 | 504-545 | TERMINAL BLOCK - compressor (K25-14139-00) | 1 | |
| 39 | 504-685 | SWITCH - high pressure (K25-20869-00) | 1 | |
| 40 | 22-1186 | ADAPTER - discharge (360-53362-00) | 1 | |
| 41 | 33-2805 | GASKET - service valve, comp body (K28-50062-00) | 2 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 42 | 506-164 | VALVE - service, suction (K22-50004-00) | 1 | |
| 43 | 66-3015 | CAP - service valve suction (K22-50005-00) | 1 | |
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| 45 | 509-342 | BRACKET - compressor RH (060-53264-00) | 1 | |
| 46 | 502-166 | COMPRESSOR (7.5 HP) (365-53666-00) | 1 | |
| 502-167 | COMPRESSOR (7.5 HP, R+R) (360-53666-01) | 1 | ||
| 47 | 22-398 | SIGHT GLASS - oil (assembly) (K29-51697-00) | 1 | |
| 48 | 502-214 | VALVE PLATE - assembly (K29-51756-00) | 1 | |
| 49 | BRACKET | BRACKET - compressor (360-56694-00) | 1 | |
| 50 | RECEIVER | RECEIVER (K26-51758-00) | 1 | |
| 51 | 506-212 | SIGHT GLASS - receiver (K26-18014-00) | 3 | |
| 506-257 | SIGHT GLASS - water cooled condenser (option) (K26-51943-00) | 3 | ||
| 54 | 502-212 | GAUGE - suction pressure (K26-23165-00) | 1 | |
| 55 | BRACKET | BRACKET - gauge (060-07242-00) | 1 | |
| 56 | 66-9890 | GAUGE - discharge pressure (K26-23164-00) | 1 | |
| 61 | 91-8098 | HOUSING - discharge/test probe (K28-51579-00) | 2 | |
| 62 | 509-964 | CAP - housing test (K28-51580-00) | 1 | |
| 63 | 506-247 | COIL - condenser (K26-51670-00) | 1 | |
| 64 | 40-791 | KIT - sensor (universal) (360-53039-00) | 1 | |
| 40-791 OEM | Датчик оттайки | 8 070 ₽ |
|
|
| 65 | 91-8702 | CAP - housing probe (060-53109-00) | 1 | |
| 66 | 33-2960 | GASKET (K25-51595-11) | 1 | |
| 67 | 501-180 | FUSIBLE PLUG (100 C/212 F, 1/4 in) (K23-12987-00) | 1 | |
| 501-182 | FUSIBLE PLUG (100 C/212 F, 3/8 in) (K23-51919-00) | 1 | ||
| 68 | CONDENSER | CONDENSER - water cooled (option) (K26-51841-00) | 1 | |
| 69 | 505-290 | COUPLING - male (water in, option) (K23-10099-00) | 1 | |
| 71 | 505-298 | COUPLING - female (water out, option) (K23-12990-00) | 1 | |
| 71 | 505-301 | COUPLING - female (water out, option) (K23-51971-00) | 1 | |
| 72 | 504-870 | SWITCH - water pressure (option) (K25-51708-00) | 1 | |
| 74 | 509-859 | COVER - terminal box (w/ gasket) (365-25046-00) | 1 | |
| 75 | 503-217 | GASKET - cover (terminal box) (K28-51512-00) | 1 | |
| 83 | 55-8899 | PLUG - seal (K28-09503-00) | 3 | |
| 87 | 509-344 | PLATE - condenser cover (060-53266-00) | 1 | |
| 88 | 509-193 | BRACKET - receiver (060-07912-00) | 2 | |
| 89 | 506-202 | ELEMENT - power (TX valve, bulb) (K25-51739-00) | 1 | |
| 91 | 503-230 | GASKET - pipe socket/service valve (K28-51696-00) | 1 | |
| 92 | 504-114 | TERMINAL BOX - lower part (065-53561-00) | 1 | |
| 95 | 506-110 | PIPE - manometer (060-54448-05) | 2 | |
| 97 | 504-291 | PROBE - PT100 (replacement kit set, option) (360-54168-00) | 1 | |
| 98 | 505-411 | CAP - dust (male) (K28-51847-00) | 1 | |
| 99 | 91-6627 | CAP - dust (female) (K28-51846-00) | 1 | |
| 509-972 | DUST CAP (female) (K28-51847-00) | 1 | ||
| 100 | 509-430 | BRACKET - 1 gauge (060-54159-00) | 1 | |
| 101 | 91-8098 | HOUSING - discharge/test probe (060-54069-00) | 2 |
