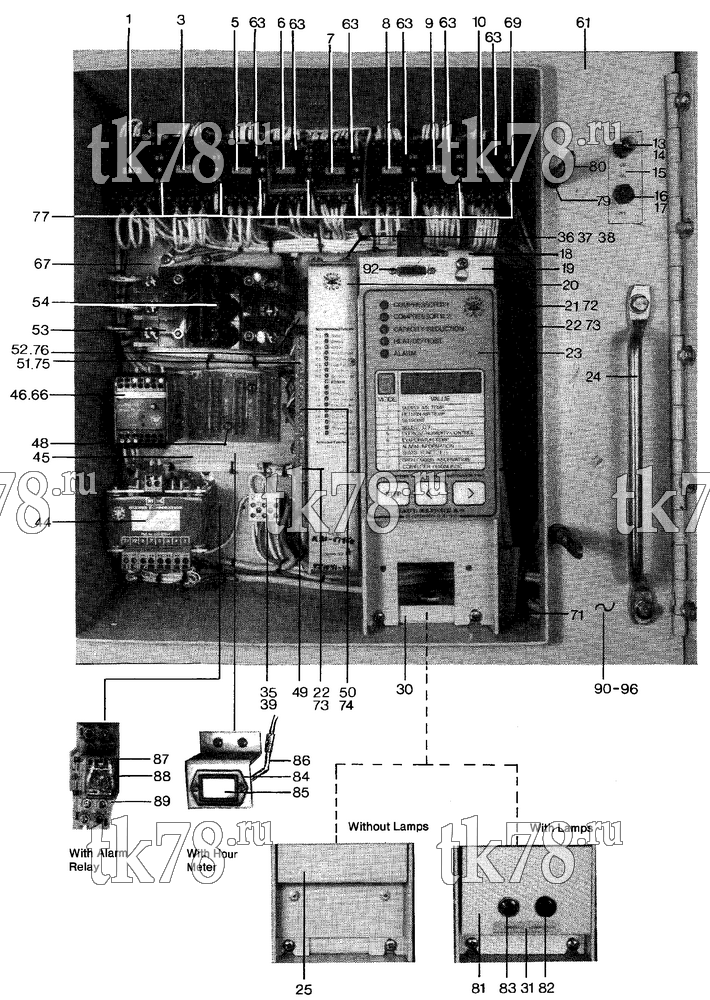

Установкa Thermo King TNE 406 схема ELECTRICAL CONTROL BOX & CONTROLLER PANEL – 150E8
Обновление от: 9/10/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 504-494 | CONTACTOR (K24-51820-15) | 1 | |
| 2 | Not Used | |||
| 3 | 91-9085 | NAMEPLATE - compressor No.2 (K24-50054) | 1 | |
| 4 | Not Used | |||
| 5 | 509-1097 | NAMEPLATE - Heat (K35-50055) | 1 | |
| 6 | 509-1101 | NAMEPLATE - PC 1 (K35-50063) | 1 | |
| 7 | 509-1102 | NAMEPLATE - PC 2 (K35-50064) | 1 | |
| 8 | 509-1098 | NAMEPLATE - Condenser (K35-50056) | 1 | |
| 9 | 509-1100 | NAMEPLATE - EF HI (K35-50058) | 1 | |
| 10 | 509-1099 | NAMEPLATE - EF LO (K35-50057) | 1 | |
| 11 | Not Used | |||
| 12 | Not Used | |||
| 13 | 504-381 | BOOT - circuit breaker (K24-18164-00) | 1 | |
| 14 | 504-422 | BREAKER - circuit (8 amp) (K24-20565) | 1 | |
| 15 | 509-1104 | NAMEPLATE - On/Off/CB (K35-50090) | 1 | |
| 16 | 92-239 | BOOT - switch (K24-17239-00) | 1 | |
| 17 | 41-3595 | SWITCH - on/off (K24-07458) | 1 | |
| 18 | 509-310 | BRACKET - display panel (060-53085) | 1 | |
| 19 | 509-324 | COVER - display panel (060-53089) | 1 | |
| 20 | 845-1887 | THERMOSTAT (K31-51750-00) | 1 | |
| 21 | 504-840 | MULTIPLUG - 3 pole (K25-51537-03) | 1 | |
| 22 | 41-3598 | BLOCK - terminal (8 pole) (K25-51537-08) | 2 | |
| 23 | 45-1888 | PANEL - display (K31-51751) | 1 | |
| 24 | 509-278 | HANDGRAB - right side (option) (060-51099) | 1 | |
| 25 | 509-321 | BRACKET (060-53088) | 1 | |
| 26 | Not Used | |||
| 27 | Not Used | |||
| 28 | Not Used | |||
| 29 | Not Used | |||
| 30 | 509-315 | BRACKET - display panel (060-53086) | 1 | |
| 31 | 509-1107 | NAMEPLATE - Power On/Condition OK (option) (K35-50093) | 1 | |
| 32 | Not Used | |||
| 33 | Not Used | |||
| 34 | Not Used | |||
| 35 | 504-836 | TERMINAL BLOCK (3 pole) (K25-50088) | 1 | |
| 36 | 505-151 | RECEPTACLE - 1/4 turn (K21-14762) | 4 | |
| 37 | 55-2657 | RETAINER - 1/4 turn (K21-14472) | 4 | |
| 38 | 55-9177 | STUD - 1/4 turn (K21-14763) | 4 | |
| 39 | 509-1105 | NAMEPLATE - 3 pole (K35-50091) | 1 | |
| 40 | Not Used | |||
| 41 | Not Used | |||
| 42 | Not Used | |||
| 43 | Not Used | |||
| 44 | 504-854 | TRANSFORMER (K25-51544) | 1 | |
| 45 | 509-319 | PANEL (060-53087) | 1 | |
| 46 | 504-1140 | SENSOR - phase (K31-51550) | 1 | |
| 47 | Not Used | |||
| 48 | 504-1141 | MANUAL CONTROL - point (option) (K31-51551) | 1 | |
| 49 | 504-843 | BLOCK - terminal (6 pole) (K25-51537-06) | 1 | |
| 50 | 504-846 | BLOCK - terminal (10 pole) (K25-51537-10) | 1 | |
| 51 | 41-4527 | BLOCK - terminal (7 pole) (K25-51537-07) | 1 | |
| 52 | 540-847 | MULTIPLUG - 11 pole (K25-52537-11) | 1 | |
| 53 | 509-966 | COVER - CB (K28-51607) | 2 | |
| 54 | 504-389 | BREAKER - circuit (25 amp, 380/440V operation) (K24-18774-00) | 1 | |
| 55 | Not Used | |||
| 56 | Not Used | |||
| 57 | Not Used | |||
| 58 | Not Used | |||
| 59 | Not Used | |||
| 60 | Not Used | |||
| 61 | 509-702 | HOUSING - electric box (360-53260) | 1 | |
| 62 | Not Used | |||
| 63 | 504-493 | CONTACTOR (K24-51820-09) | 6 | |
| 64 | Not Used | |||
| 65 | Not Used | |||
| 66 | 509-372 | TRACK - phase sensor (060-53486-05) | 1 | |
| 67 | 509-138 | CLAMP - circuit breaker (060-05498) | 1 | |
| 68 | Not Used | |||
| 69 | 509-376 | TRACK - contactor, phase sensor (060-53486-38) | 1 | |
| 70 | Not Used | |||
| 71 | 504-873 | PLUG - datalogger (12 pole, green, option) (K25-51727) | 1 | |
| 72 | 504-262 | CABLE - display panel (w/ plug, 3 pole) (360-53165-01) | 1 | |
| 73 | 504-208 | CABLE - 8 pole (w/ plug, display panel, thermostat) (360-50921-05) | 1 | |
| 74 | 504-262 | CABLE - thermostat (w/ plug, 10 pole) (360-53165-04) | 1 | |
| 75 | 504-260 | CABLE - thermostat (w/ plug, 7 pole) (360-53165-02) | 1 | |
| 76 | 504-261 | CABLE - thermostat (w/ plug, 11 pole) (360-53165-03) | 1 | |
| 77 | 504-900 | CONTACT - auxiliary (special type) (K25-51840) | 8 | |
| 78 | Not Used | |||
| 79 | 509-968 | SPACER - fasteners (K28-51645) | 2 | |
| 80 | 505-194 | FASTENER - antiloose (K21-50000-00) | 2 | |
| 81 | 509-371 | BRACKET - lamps (060-53469) | 1 | |
| 82 | 504-896 | LIGHT - green (28V, option) (K25-51802) | 1 | |
| 83 | 504-897 | LIGHT - yellow (28V, option) (K25-51803) | 1 | |
| 84 | 509-829 | BRACKET - hourmeter (option) (060-53098) | 1 | |
| 85 | 504-714 | HOURMETER (K25-22099) | 1 | |
| 86 | 504-266 | CABLE - hourmeter (option) (360-53165-09) | 1 | |
| 87 | 504-477 | RELAY - alarm (option) (K24-50009) | 1 | |
| 88 | 505-378 | FASTENER (options) (K24-50011) | 2 | |
| 89 | 504-478 | SOCKET - relay (option) (K24-50010) | 1 | |
| 90 | 845-1889 | DATALOGGER (K31-51770) | 1 | |
| 91 | 203-509 | BATTERY (12V) (K24-51763-00) | 1 | |
| 92 | 504-265 | CABLE - 15 pole plugs in both ends (w/ plugs) (360-53165-08) | 1 | |
| 93 | 504-263 | CABLE - datalogger/thermostat (w/ plugs, 5 pole plugs/4 pole) (360-53165-06) | 1 | |
| 94 | 41-3597 | BLOCK - terminal (5 pole) (K25-51537-05) | 1 | |
| 95 | 41-3596 | TERMINAL BLOCK (4 pole) (K25-51537-04) | 1 | |
| 96 | 504-264 | CABLE (w/ 7 pole plug) (360-53165-07) | 1 |
