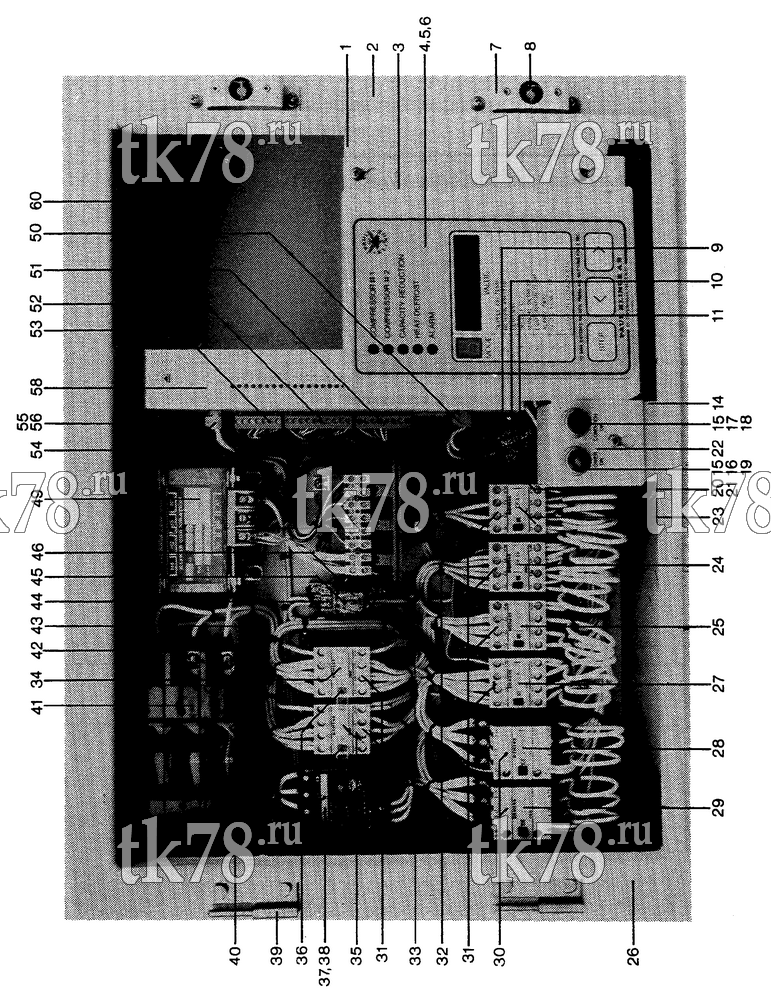

Установкa Thermo King TNE 405 D & E схема ELECTRIC BOX (YORK TNE 405 D, D01 & E) – 150F7
Обновление от: 9/10/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 509-273 | BRACKET - display (060-51061) | 1 | |
| 2 | 504-207 | HOUSING - electric box (360-50911) | 1 | |
| 3 | 504-1428 | BRACKET - display panel (060-50919) | 1 | |
| 4 | 509-268 | BRACKET - housing (060-50945) | 1 | |
| 5 | 45-1888 | DISPLAY (K31-51751-00) | 1 | |
| 6 | 504-840 | MULTIPLUG - 3 pole (K25-51537-03) | 1 | |
| 7 | 509-178 | BRACKET - receptacle (060-07395) | 2 | |
| 8 | 55-8920 | RECEPTACLE - stud (K21-16180) | 2 | |
| 9 | 40-791 | KIT - sensor (universal) (360-53039-00) | 1 | |
| 40-791 OEM | Датчик оттайки | 8 070 ₽ |
|
|
| 10 | 40-791 | KIT - sensor (universal) (360-53039-00) | 1 | |
| 40-791 OEM | Датчик оттайки | 8 070 ₽ |
|
|
| 11 | 40-791 | KIT - sensor (universal) (K29-51756) | 1 | |
| 40-791 OEM | Датчик оттайки | 8 070 ₽ |
|
|
| 14 | 509-274 | BRACKET - display (bottom) (060-51062) | 1 | |
| 15 | 504-730 | HOUSING - light (K25-23508) | 2 | |
| 16 | 504-728 | LENS (amber) (K25-22826) | 1 | |
| 17 | 504-759 | LENS (clear) (K25-25846-01) | 1 | |
| 18 | 504-766 | LAMP - neon (green) (K25-25860) | 1 | |
| 19 | 504-718 | LAMP - neon (K25-22145) | 1 | |
| 20 | 504-836 | TERMINAL BLOCK (3 pole) (K25-50088) | 1 | |
| 21 | 509-1105 | NAMEPLATE - 3 pole (K35-50091) | 1 | |
| 22 | 509-1107 | NAMEPLATE - Power On/Condition OK (K35-50093) | 1 | |
| 23 | 509-1099 | NAMEPLATE - EF LO (K35-50057) | 1 | |
| 24 | 509-1100 | NAMEPLATE - EF HI (K35-50058) | 1 | |
| 25 | 509-1098 | NAMEPLATE - Condenser (K35-50056) | 1 | |
| 26 | 91-9124 | BRACKET - cover (plexiglass) (360-51073) | 2 | |
| 27 | 509-1097 | NAMEPLATE - Heat (K35-50055) | 1 | |
| 28 | 509-1096 | NAMEPLATE - Compressor 2 (K35-50054) | 1 | |
| 29 | 509-1095 | NAMEPLATE - Compressor 1 (K35-50053) | 1 | |
| 30 | 504-494 | CONTACTOR (4 pole) (K24-51820-15) | 2 | |
| 31 | 504-494 | CONTACTOR (4 pole) (K24-51820-15) | 6 | |
| 32 | 55-9179 | SPACER - cover (plexiglass) (060-51096) | 1 | |
| 33 | 504-1141 | MANUAL CONTROL - point (K31-51551) | 1 | |
| 34 | 509-1102 | NAMEPLATE - PC 2 (K35-50064) | 1 | |
| 35 | 509-1101 | NAMEPLATE - PC 1 (K35-50063) | 1 | |
| 36 | 504-486 | PROTECTOR - contactor (K24-50019) | 2 | |
| 37 | 504-1140 | SENSOR - phase (K31-51550) | 1 | |
| 38 | 504-485 | SOCKET - phase sensor (K24-50018) | 1 | |
| 39 | 509-1002 | HINGE (K29-17879) | 1 | |
| 40 | 91-9125 | PANEL (060-50913) | 1 | |
| 41 | 504-389 | BREAKER - circuit (25 amp) (K24-18744) | 1 | |
| 42 | 509-221 | BRACKET - circuit breaker (060-50063) | 1 | |
| 43 | 509-138 | CLAMP - mounting circuit breaker (060-05498) | 1 | |
| 44 | 504-478 | SOCKET - relay (K24-50010) | 1 | |
| 45 | 504-477 | RELAY - alarm (K24-50009) | 1 | |
| 46 | 505-378 | FASTENER (K24-50011) | 1 | |
| 49 | 504-854 | TRANSFORMER (405D) (K25-51544-00) | 1 | |
| 50 | 504-843 | BLOCK - terminal (6 pole) (K25-51537-06) | 1 | |
| 51 | 41-3598 | BLOCK - terminal (8 pole) (K25-51537-08) | 1 | |
| 52 | 504-846 | BLOCK - terminal (10 pole) (K25-51537-10) | 1 | |
| 53 | 41-4527 | BLOCK - terminal (7 pole) (K25-51537-07) | 1 | |
| 54 | 504-847 | BLOCK - terminal (11 pole) (K25-51537-11) | 1 | |
| 55 | 505-151 | RECEPTACLE - 1/4 turn (K21-14762) | 4 | |
| 56 | 55-2657 | RETAINER - 1/4 turn (K21-14472) | 4 | |
| 57 | 55-9177 | STUD - 1/4 turn (K21-14763) | 4 | |
| 58 | 845-1887 | THERMOSTAT (K31-51750-00) | 1 | |
| 60 | 91-9126 | RACK - mounting (060-50934) | 1 | |
| 61 | 509-962 | COVER - plexiglass (K28-50095) | 1 | |
| 62 | 509-1086 | NAMEPLATE - Disconnecting Power (K35-50031) | 1 |
