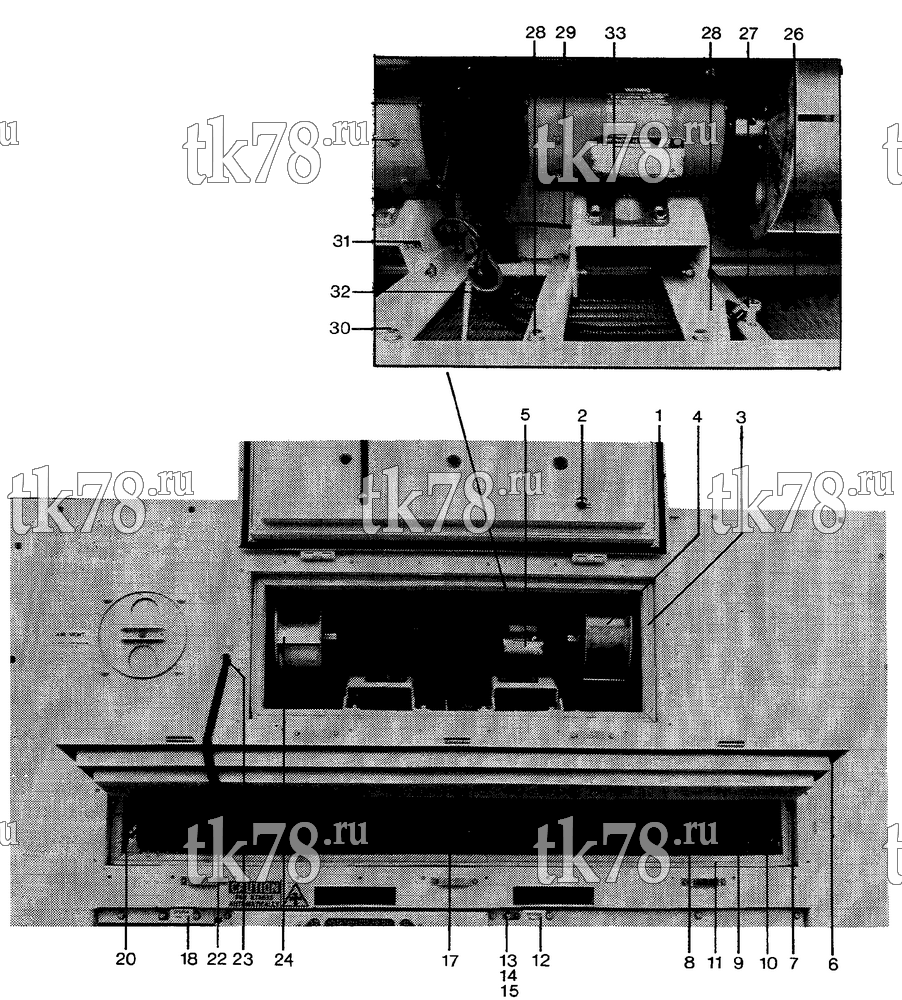

Установкa Thermo King TNE 405 D & E схема EVAPORATOR SECTION (YORK TNE 405 D & E) – 150F5
Обновление от: 7/31/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 503-212 | GASKET - evaporator door (K28-51502) | 1 | |
| 2 | 505-163 | CLAMP (K21-15649-03) | 4 | |
| 3 | 503-214 | GASKET - evaporator door (K28-51504) | 1 | |
| 4 | 508-114 | WHEEL - evaporator fan (K26-24621-00) | 2 | |
| 5 | 104-691 | MOTOR - evaporator (K24-21354-00) | 2 | |
| 6 | 503-213 | GASKET - heater door (K28-51503) | 1 | |
| 7 | 506-160 | VALVE - suction pressure regulator (K22-06884-00) | 1 | |
| 8 | 509-199 | BRACKET (060-07991) | 1 | |
| 9 | 45-1791 | HEATER (1000W) | 3 | |
| 10 | 504-743 | VALVE - TX system No. 1 (K25-23753) | 1 | |
| 11 | 503-215 | GASKET - heater (K28-51505) | 3 | |
| 12 | 509-1058 | NAMEPLATE - System No. 2 (K35-05614) | 1 | |
| 13 | 505-288 | CAP - purge valve (K23-09797) | 2 | |
| 14 | 11-7777 | CORE - purge valve (K22-02475-00) | 2 | |
| 15 | 506-141 | BODY - purge valve (K22-02977-00) | 2 | |
| 17 | 55-2657 | RETAINER - drain pan heaters (K21-14472) | 4 | |
| 18 | 509-1057 | NAMEPLATE - System No. 1 (K35-05613) | 3 | |
| 20 | 506-198 | VALVE - TX system No. 2 (K25-20185) | 1 | |
| 22 | 509-937 | STRAP (K28-10691) | 4 | |
| 23 | 91-9039 | HOOK - strap (K29-18490) | 4 | |
| 24 | 91-9102 | RING - air inlet (060-07958) | 2 | |
| 26 | 506-224 | COIL - evaporator (K26-24603) | 1 | |
| 27 | 41-3401 | SWITCH - overheat (130 F/54 C) (K25-19557) | 1 | |
| 28 | 509-175 | ANGLE - evaporator motor (right side) (060-07303) | 2 | |
| 29 | 40-791 | KIT - sensor (universal) (360-53039-00) | 1 | |
| 40-791 OEM | Датчик оттайки | 8 070 ₽ |
|
|
| 30 | 509-174 | ANGLE - evaporator motor (left side) (060-07302) | 2 | |
| 31 | 509-276 | BRACKET - evaporator motor (left side) (060-51095) | 2 | |
| 32 | 40-791 | KIT - sensor (universal) | 1 | |
| 40-791 OEM | Датчик оттайки | 8 070 ₽ |
|
|
| 33 | 509-275 | BRACKET - evaporator motor (right side) (060-51094) | 1 |
